Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-6A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC, Western Union |
| Supply Ability: | 45 sets per month |

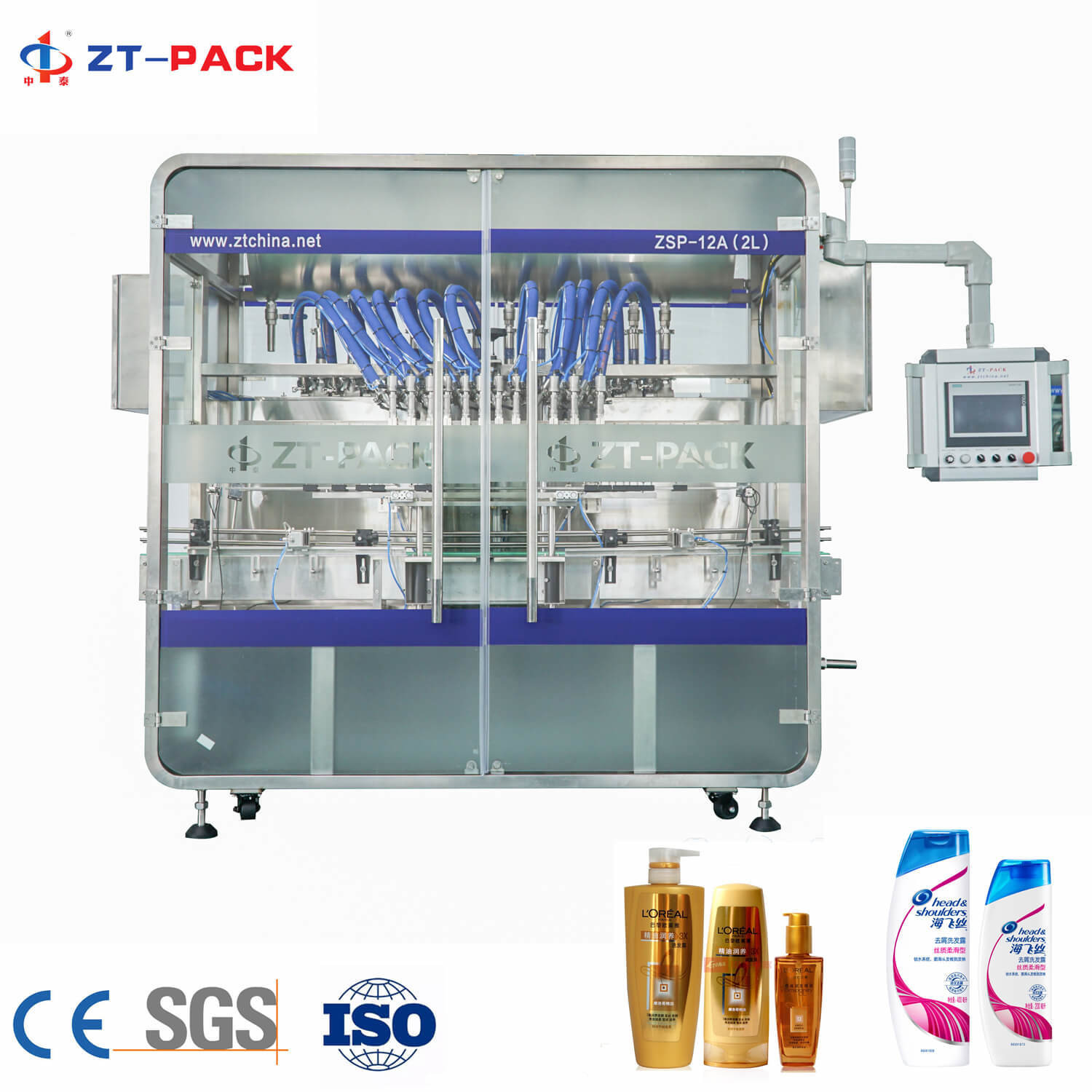

0.6-0.8mpa Shampoo Bottle Skin Care Lotion Filling Machine Package Line
Description
Our servo piston filling machine is newly developed advanced liquid filling machine, which has obtained international professional recognition. This inline piston filling machine is suited to filling of liquid and viscous liquid such as cream. By adopting PLC, touch screen control panel with a robust structure, this piston filler features outstanding performance in accurate measurement, stable operation, low noise, wide adjustment range and fast filling speed. Operator can control every filling head through touch screen control panel. Besides, this piston filler is made of high quality stainless steel, featuring a good appearance and in compliance with GMP standard.
Feature:
1. Capacity:≤4000 bottles/hour (500ml as medium)
2. Applicable Bottle Type:Round bottle Φ40-100 mm,Height 80-280 mm
Flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L×W×H)
3. Bottle's mouth diameter:≥φ25mm
4. filling range:100-5000ml
5. Precision: (100ml) ±1% ;(100ml-1000ml)±0.5%
6. Air pressure : 0.6~0.8 MPA
7.Air consumption:120L/minute
8. Power Source:~380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 850Kg
12. Productiin line height:850mm±50mm
13. Filling materials:Viscosity liquid
14. Bottle feed direction:From left to right
|
Containers and Specifications(100mL-1000mL)
|
|||||
|
Model
|
ZSP-6A
|
ZSP-8A
|
ZSP-10A
|
ZSP-12A
|
ZSP-16A
|
|
Dimension
|
2200mm(L)x1100mm(W)x2200mm(H)
|
2300mm(L)x1100mm(W)x2200mm(H)
|
2400mm(L)x1100mm(W)x2200mm(H)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity(1L)
|
1800B/H
|
2400B/H
|
3000B/H
|
3600B/H
|
4800B/H
|
|
Power
|
2.2KW
|
2.2KW
|
2.2KW
|
3KW
|
3KW
|
|
Suitable bottle
|
Diameter:Φ40mm-Φ100mm Height:80mm-280mm
|
||||
|
Neck diameter
|
Φ18mm
|
||||
|
Filling range
|
50ml--1000ml / 1L-5L (From ZT-PACK)
|
||||
|
Air pressure
|
0.6Mpa--0.8Mpa
|
||||
|
Power supply
|
380V;50HZ/60HZ
|
||||
Features
Heavy-duty stainless steel constructed
Stainless steel Reservoir
Automatic Bottling Index kit with bottle counter
Pneumatic indexing gates (count in, count out)
Automatic product level sensing float system
Easily adjustable nozzle height settings accommodate vials to gallons
User friendly PLC controls with touch screen HMI
No bottle/No fill sensor
Bottle backup sensor (downstream) delays operation until jam is cleared
Able to output multiple doses per container for large containers
Easy clean stainless steel quick connect fittings
Drip Tray
Diving heads nozzles for bottom up filling to reduce foam
Neck grabbers for containers with small opening
Specifications are subject to change without notice, All rights are reserved.
