Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-6A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC, Western Union |
| Supply Ability: | 45 sets per month |

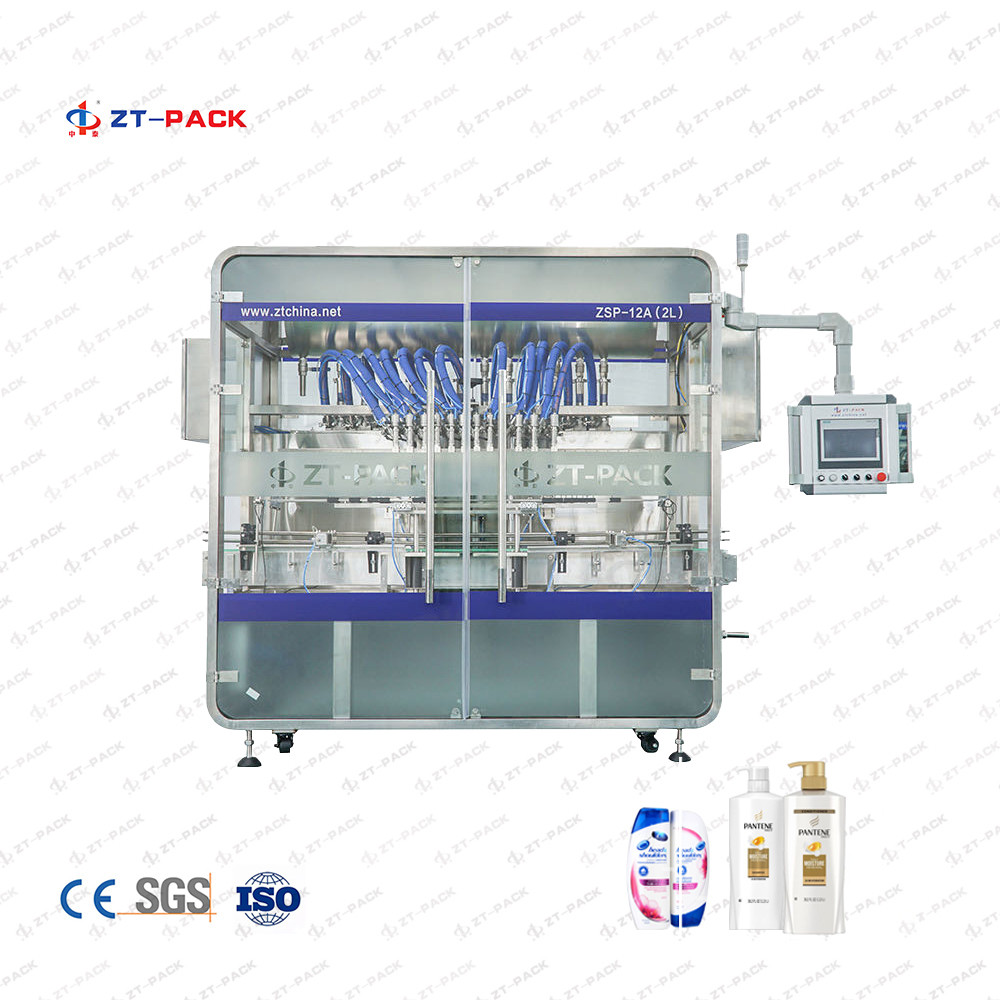

4000BPH 60HZ Servo Shampoo Shower Gel Bottle Filling Machine Package Line
Description
Automatic daily product filling machine is designed with piston volume filling which controls by servo motor. Servo motor driven screw rod to make piston move up and down stably, ensuring high filling accuracy and stable capacity. It is widely applied to daily chemical product industry, such as detergent liquid, shampoo, hand soap, dish washing liquid, shower gel and hand sanitizer, soap liquid, disinfectant liquid products and etc.
This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
Features
1)Different volumes can be set on HMI directly;
2)Fast adjustment for different size bottles within 10-20min;
3)Piston drove by servo motor, high accuracy within +/-0.5% and high stability;
4)Hygienic tri-clamps connection, easy to remove and clean, comply with GMP standards;
5)Diving nozzle design for foaming liquid and sucking back device installed for oil related products to assure no foaming, no dripping;
Details:
