Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC, Western Union |
| Supply Ability: | 45 sets per month |

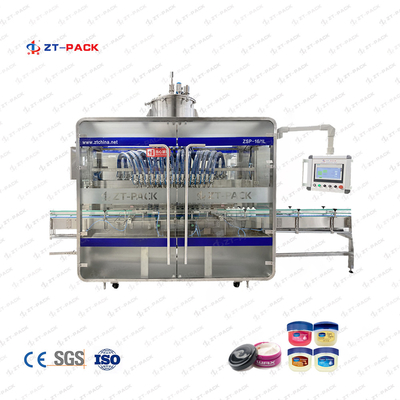

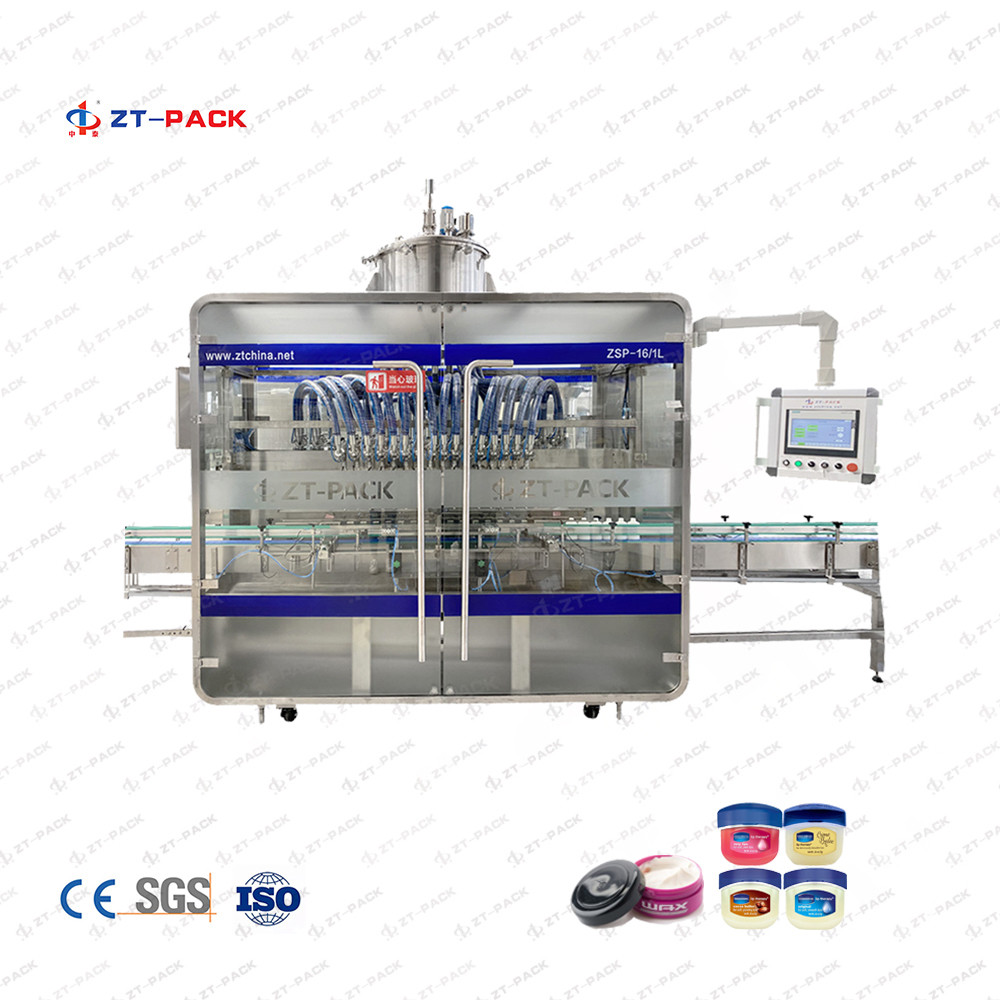

4000bph Vaseline Jelly SS316 Wax Filling Machine
1,The equipment has strong compatibility, and can quickly adjust and replace bottles of different shapes and specifications without replacing parts, which can meet the production requirements of multiple varieties and specifications.
2,PLC control, touch bottle operation, simple and convenient operation.
3,The use of international famous brand electrical components, performance, and stability.
4,User can adjust filling range, the materials is not enough in the hopper, the computer will give the feeding pump signal to
add material by level sensor. When the material is full, the pump will stop automatically.
5,Machine body is made by 304 stainless steel, easy to clean, the machine is full compliance with GMP requirements.
6,Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.
Application:
This machine is suitable for filling liquid agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials.
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
Details:
