Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-6A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC, Western Union |
| Supply Ability: | 45 sets per month |

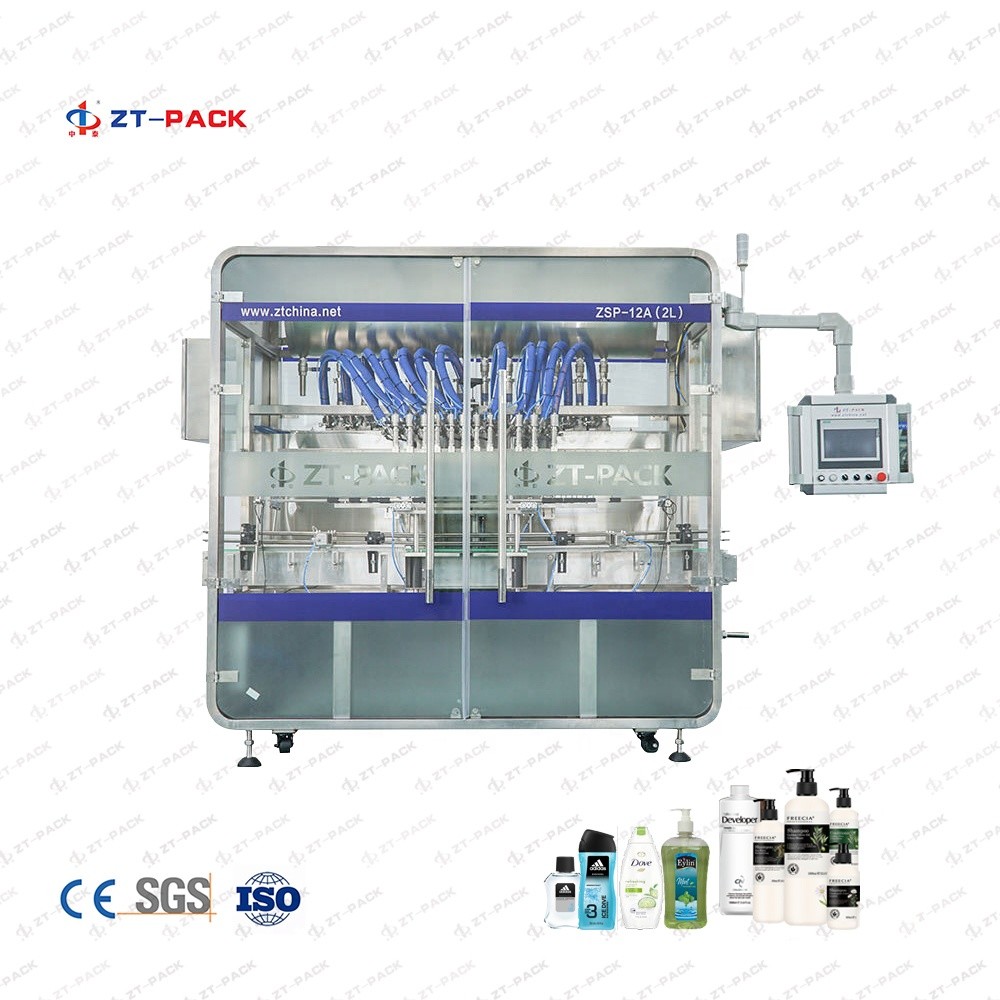

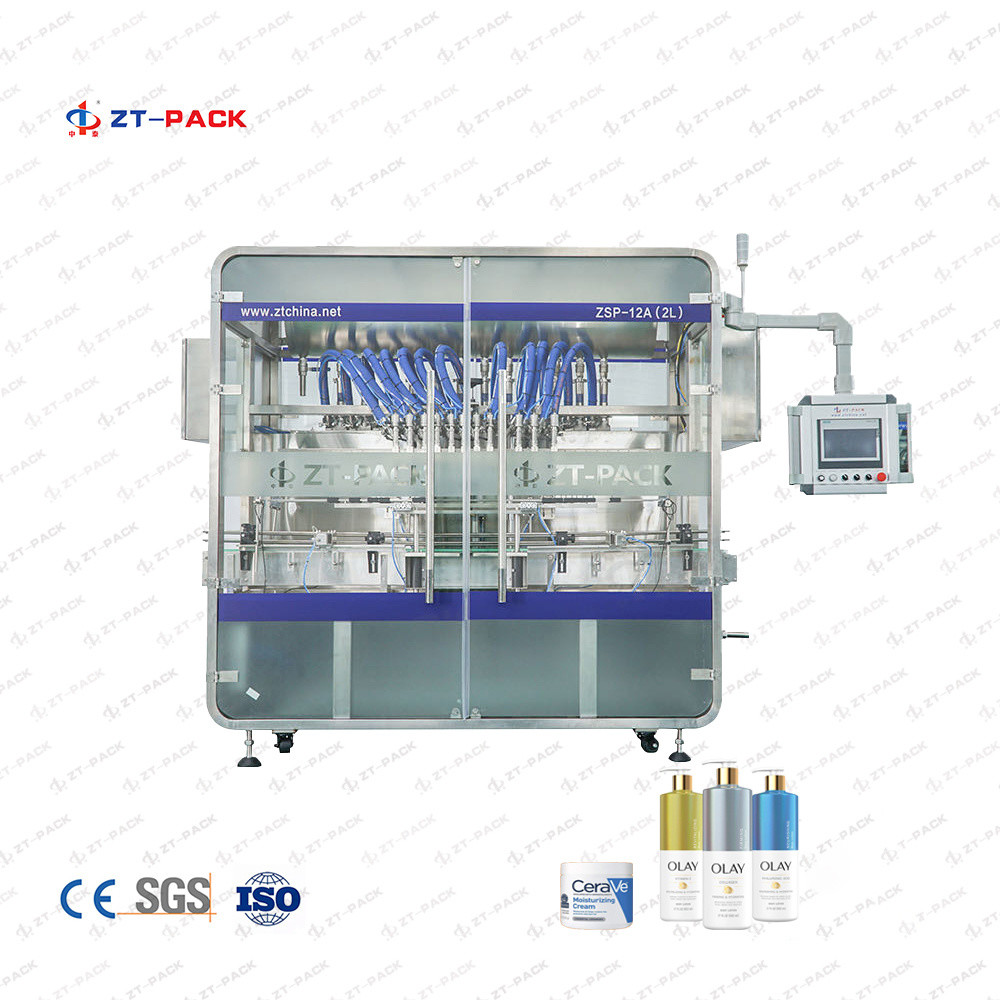

SS316 Body Lotion Hand Sanitizer Shampoo Shower Gel Plastic Bottling Filling Machine
Description
Intellectual High Viscosity Filling Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind , softener ,detergent cream class contour viscosity materials. . The whole machine uses the in-line structure and it is driven by the servo motor. The volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with an electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
Feature:
1. Capacity:≤4000 bottles/hour (500ml as medium)
2. Applicable Bottle Type:Round bottle Φ40-100 mm,Height 80-280 mm
Flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L×W×H)
3. Bottle's mouth diameter:≥φ25mm
4. filling range:100-5000ml
5. Precision: (100ml) ±1% ;(100ml-1000ml)±0.5%
6. Air pressure : 0.6~0.8 MPA
7.Air consumption:120L/minute
8. Power Source:~380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 850Kg
12. Productiin line height:850mm±50mm
13. Filling materials:Viscosity liquid
14. Bottle feed direction:From left to right
|
Containers and Specifications(100mL-1000mL)
|
|||||
|
Model
|
ZSP-6A
|
ZSP-8A
|
ZSP-10A
|
ZSP-12A
|
ZSP-16A
|
|
Dimension
|
2200mm(L)x1100mm(W)x2200mm(H)
|
2300mm(L)x1100mm(W)x2200mm(H)
|
2400mm(L)x1100mm(W)x2200mm(H)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity(1L)
|
1800B/H
|
2400B/H
|
3000B/H
|
3600B/H
|
4800B/H
|
|
Power
|
2.2KW
|
2.2KW
|
2.2KW
|
3KW
|
3KW
|
|
Suitable bottle
|
Diameter:Φ40mm-Φ100mm Height:80mm-280mm
|
||||
|
Neck diameter
|
Φ18mm
|
||||
|
Filling range
|
50ml--1000ml / 1L-5L (From ZT-PACK)
|
||||
|
Air pressure
|
0.6Mpa--0.8Mpa
|
||||
|
Power supply
|
380V;50HZ/60HZ
|
||||
Details:
