Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | XZJ-200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30 sets per month |

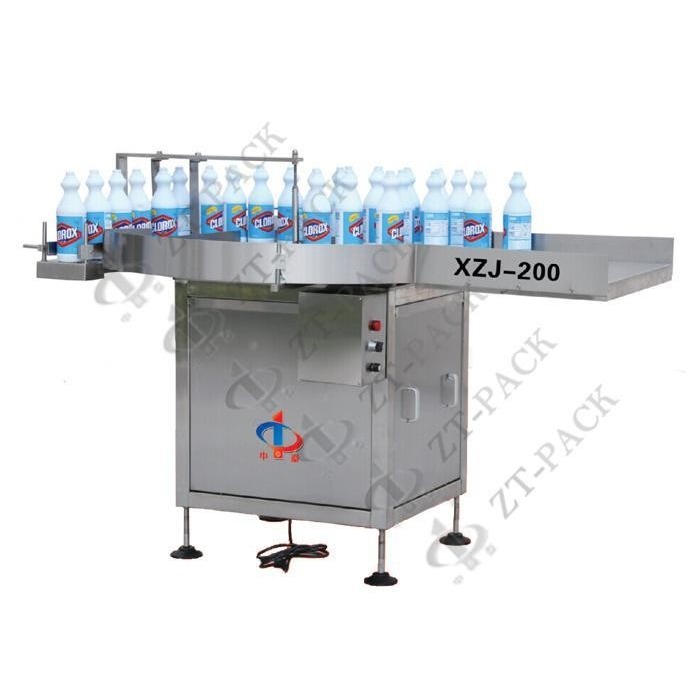

Rotating Automatic Rotary Bottle Infeeder For Food Beverage Industry
Description
It is designed to increase the efficiency and throughput the packing system. It used to unscramble or accumulate products.Unscrambling mode allows products to be loaded in mass and creates a single file queue that feeds the labeling system. Conversely, accumulation mode allows the turntable to store multiple products until they can be offloaded, packed, or continue to the next process in the line.
1. This machine frame materials adopt the best quality stainless steel, other parts also adopt non-toxic, durable series materials, electric and pneumatic system select and use partial imported parts, lower equipment failure ratio and high stability.
2. Turntable diameter 800mm, suit bottle diameter 40-130mm, height 30-200mm, can customer-made according to customer requirement, additionally discuss price.
3. The max production efficiency reaches up to 60 bottles per minute according to different bottle shape.
4. Power supply: single-phase 220V, 50HZ, 0.12KW
5. The equipment size: length 1m*width 0.8* height1.2m, package size: 1.15m×0.9m×1.36m;
6. Net weight about 50KG, gross weight about 100KG;
Parameters:
| Product | Bottle Turntable Unscrambler Machine / Bottle Collecting Machine |
| Material | Stainless Steel |
| Transport Speed | 40-60 bottles/ min |
| Rotary Table Diameter | 800mm |
| bottle diameter | 30-150mm (adjustable) |
| Air sourse | |
| Power | 0.18KW |
| Weight | 65kg |
| Size | 1000(L)*800(W)*1200(H)mm |
| Voltage | 220V,50Hz |
Configure:
| No. | Name | Brand |
| 1 | Frequency converter | Schneider |
| 2 | Magnetic Switch | Schneider |
| 3 | Sensor | OPTEX |
| 4 | Power Switch | Schneider |
| 5 | Cylinder | AIRTAC |
Suitable For Filling: Applicable to all plastic bottles, not limited to square or round bottles, widely used in daily chemicals, oils, pesticides, and personal care.
