Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | LP-200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 30 sets per month |

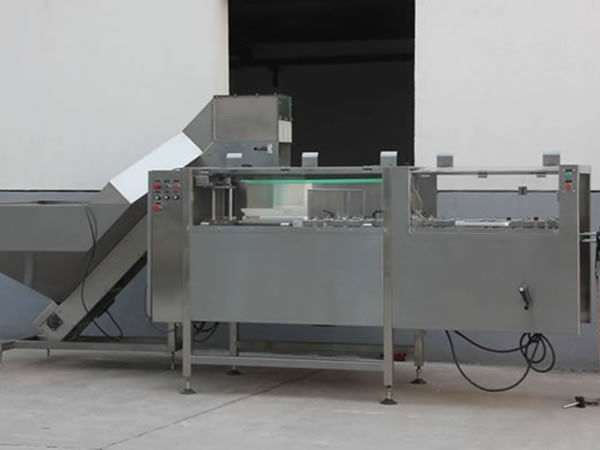

Automatic Bottle Unscrambler LP-200
Description
The LP-200 automatic bottle unscrambler contains a bottle elevator, rejector, and arranger as well as an electrical cabinet. Bottles in any order placed on the bottle elevator will be conveyed and arranged to stand upright, ready for washing and filling. An important part of the bottle packaging production line, this unscrambling machine saves significant time and labor.
Parameters:
| Product | Bottle Turntable Unscrambler Machine / Bottle Collecting Machine |
| Material | Stainless Steel |
| Transport Speed | 40-60 bottles/ min |
| Rotary Table Diameter | 800mm |
| bottle diameter | 30-150mm (adjustable) |
| Air sourse | |
| Power | 0.18KW |
| Weight | 65kg |
| Size | 1000(L)*800(W)*1200(H)mm |
| Voltage | 220V,50Hz |
Configure:
| No. | Name | Brand |
| 1 | Frequency converter | Schneider |
| 2 | Magnetic Switch | Schneider |
| 3 | Sensor | OPTEX |
| 4 | Power Switch | Schneider |
| 5 | Cylinder | AIRTAC |
Features:
1. At 3 meters long and lightweight, the unscrambler is easy to operate and adjust to fit parameters.
2. Can process a wide range of bottle sizes from 50-1000ml simply by adjusting the belt in the bottle hopper.
3. Stable with a 100% qualified rate.
4. Imported electrical components ensure a long and reliable service life.
5. A sensor on the glass cover allows the machine to operate only when the cover is closed for safety.
6. An automatic bottle elevating function senses when there are enough bottles on the rotary plate before conveying to the next stage.
7. Sensors stop the unscrambling machine automatically if there is a jam and start when it is cleared.
Suitable For Filling: Applicable to all plastic bottles, not limited to square or round bottles, widely used in daily chemicals, oils, pesticides, and personal care.
