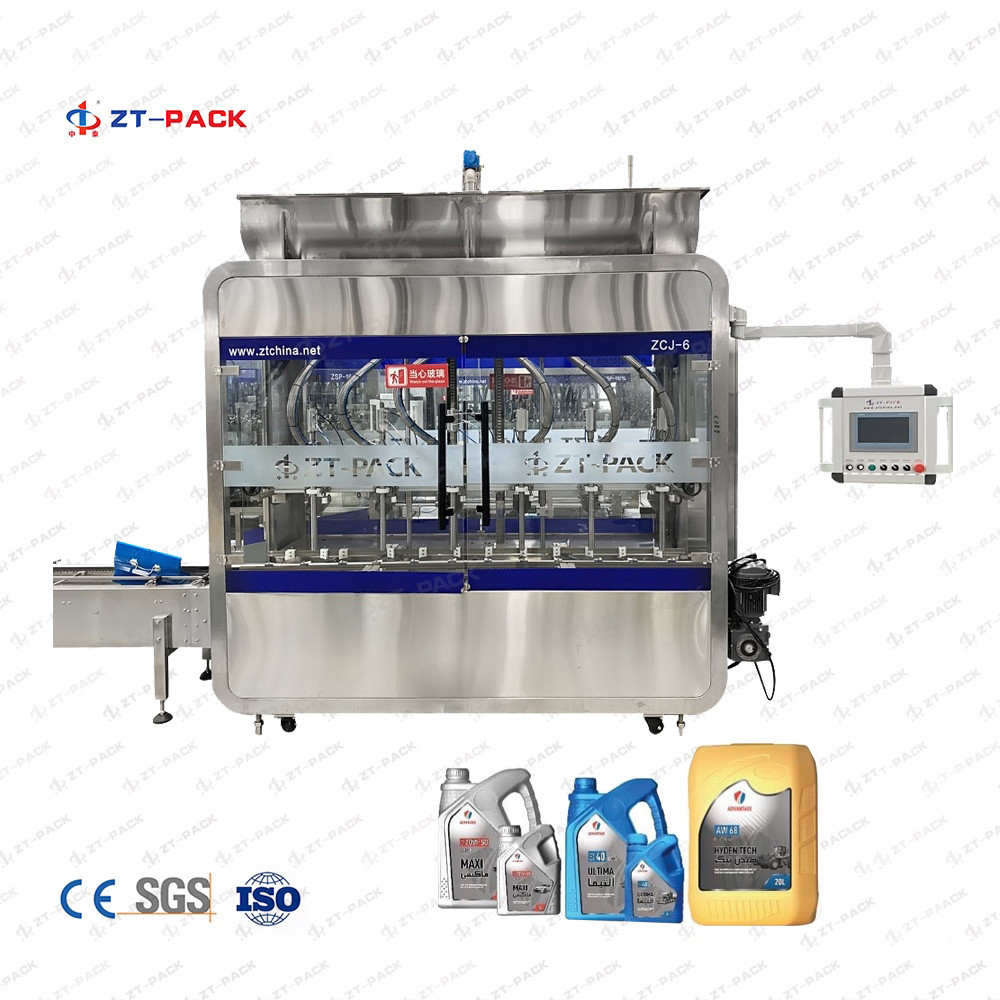

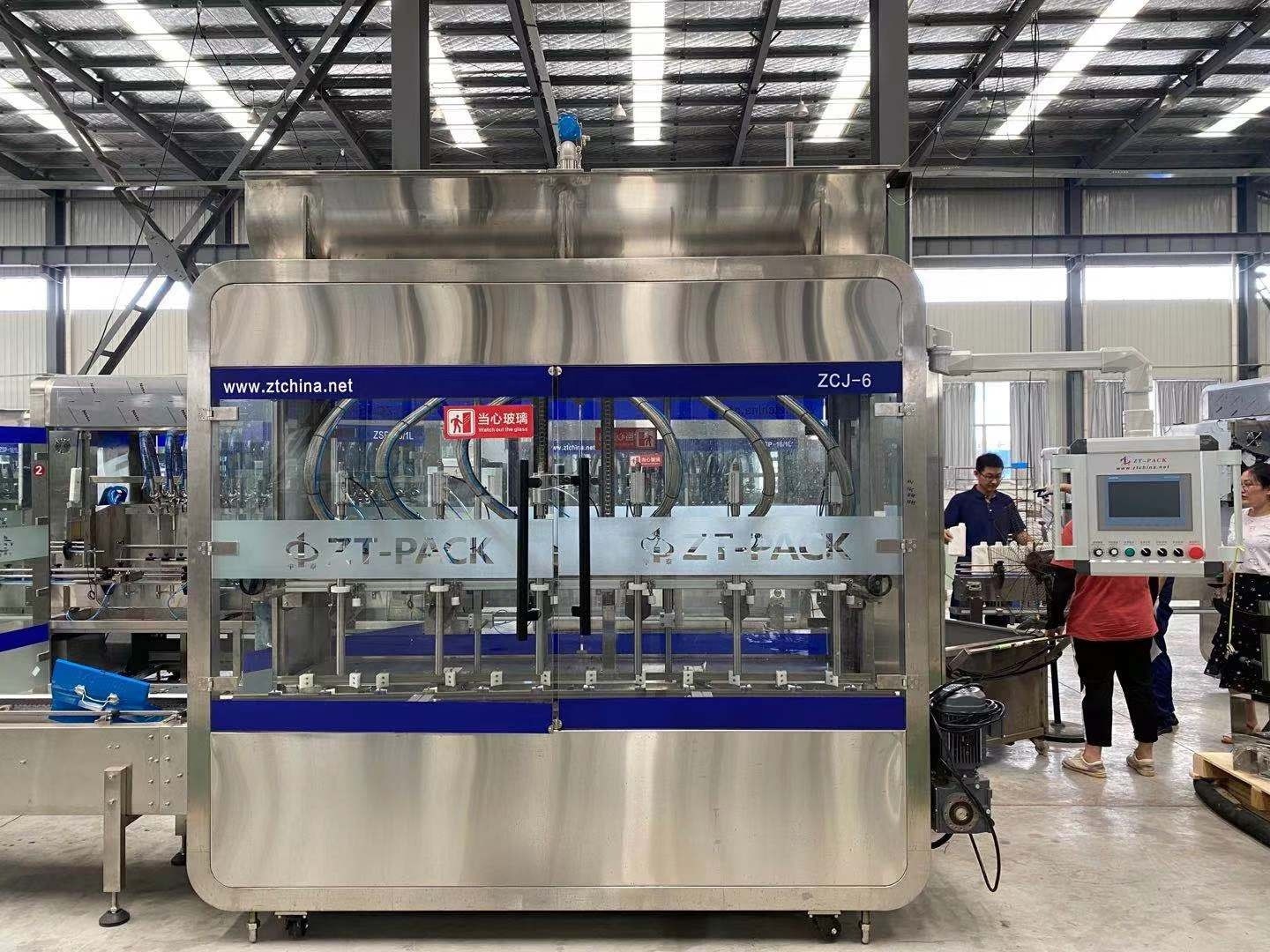

Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging
Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging
Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging

Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging

Product Details:
Place of Origin: China
Brand Name: ZT-PACK
Certification: CE,ISO,SGS,SABER
Model Number: ZCJ-4/6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 100sets per month
Contact Now
Specifications Product Description Request A Quote
Specifications
Specifications
Product Name: Edible Oil Filling Machine
Application: Chemical, Food, Oil
Dimension(L*W*H): 2200* 1300* 2350mm
Capacity: 200-600 Drums/hour Base On 20L
Driven Type: Pneumatic
Voltage: 220V 50HZ
Weight: 1800 KG
Key Selling Points: Remote Control
Type: Filling Machine
Filling Material: Oil, Other, Chemical, Liquid
Machine Material: Food Grade SS304 / SS316
Filling Accuracy: 0.1%
Machinery Capacity: 400BPH, 500BPH, 200BPH, 200-600Drums/hour On 20L
Processing: Filling+weighing+capping
Control: PLC +HMI + LOAD CELL
Warranty: 1 Year
Highlight:

20liter Edible Oil Filling Machine

,

SS304 Edible Oil Filling Machine
Product Description

Vegetable Edible Oils Filling Machines Auto 20liter Container Jerry Can Drum Cooking Oil Packaging Machines



Description



Net weigh fillers are in ideal solution for ensuring each container you fill has the same amount of product in it. They are the best for liquids filled in bulk quantities, such as 5-gallon oil , or products that have a very high value and thus need to be weighed correctly to avoid losing profit.


This is weigh type filling machine for filling 5-30 KG Liquid .



Gravity filling system with weight scale under filling nozzle to assure filling accuracy.

As well as pressure tank be used to make sure the capacity speed faster.

Linear type machine, can be made with 4/6 filling nozzle for different filling capacity.

It is ideal for filling big volume product like edible oil, wine, lubrication, liquid fertilizer, chemicals etc.
Net weight filler is best suited for liquids to be filled in bulk quantities e.g. 5 gallon pails, etc. or smaller quantity
products that have a very high manufactured value. Oftentimes there are products that must be sold by weight for commercial reasons and therefore this filling machine is the only choice. Examples of this type of filler for bulk products include cleaning chemicals, enzyme solutions, oils and other medium value products. High value products filled by these machines include specialty adhesives and paints, precious metals dissolved in acids, and other expensive specialty chemicals.

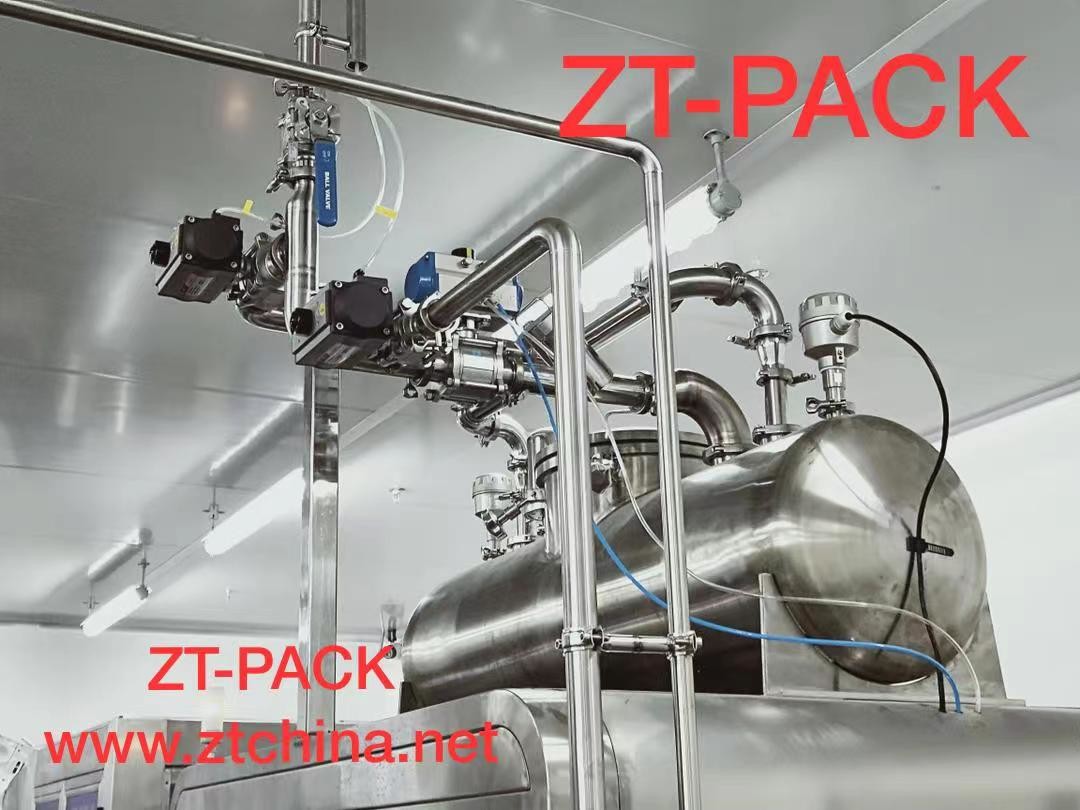

The operation of this type of net weight drum filling machine is simple. The product bulk supply is pumped into a holding tank above a pneumatically operated valve. Cleaned containers are conveyed to the filling machine through an SS slat conveyor, positioned on individual load cell platform and tared. the valves open and real time net weight information is monitored until the target weight is achieved. The valve simply shuts when the target weight is achieved. Accuracy of fills is accomplished by various “bulk and dribble” methods in the filling process so that overfills are avoided.
The advantage of this bucket filling machine over others is that it is sometimes the only practical (and legal) type of filling for a limited range of applications and for large volume fills. It is also very accurate and effectively provides its own quality control assuming the scale is functioning properly. The disadvantage of this type of filling machine is that it is very expensive per filling head. For these reasons, the use of this filling technology is limited to the examples outlined above.



Suitable for fill


Edible oil
(Cooking Oil , sunflower oil , peanut oil , seasame oil ..., etc.); Automatic packaging of Oil liquids.

Lubricant Oil :
Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products

Agrohchemicals :
Pesticide , fertilizer ,suspending agents, liquids, emulsifiable concentrates and water-soluble fertilizers, Acaricide,Fungicide,herbicide, EC ,SC , SL etc.)

Filling Range : 4L-30L
  5kg -30kg

Filling System can be choosen : Net Weight Load Cell
Flow Meter

Speed can be choosen : from 200BPH-600BPH (basic on 20L)

Filling Line Machines included (can be choosen):
Filling Machine--Capping Machine -- Induction sealing machine -- Aluminum Foil detector and rejector --Labeling Machine --Date Printer -- Palletilizer


Parameter

Model ZCJ-4 ZCJ-6
Dimension 3000x1700x2300mm 3600x1700x2300mm
Filling head 4 6
Capacity(10L) 300 B/H 350 B/H
Capacity(20L) 250 B/H 300 B/H
Power 2KW 3KW
Suitable bottle length:160-360mm width:100-300mm height:250-500mm
Barrel neck diameter ≥Φ40mm
Filling error ≦±0.5%F.S
Filling range 10KG-30KG
Air pressure 0.6Mpa-0.8Mpa
Power supply 220V ；50HZ



Details

Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging 0

Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging 1

Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging 2
Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging 3
Vegetable Edible Oil Filling Machine Auto 20liter Container Jerry Can Drum Packaging 4
