Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE/ SGS/ ISO |
| Model Number: | ZGP-G |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Packaging Details: | wooden packages |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30sets/month |

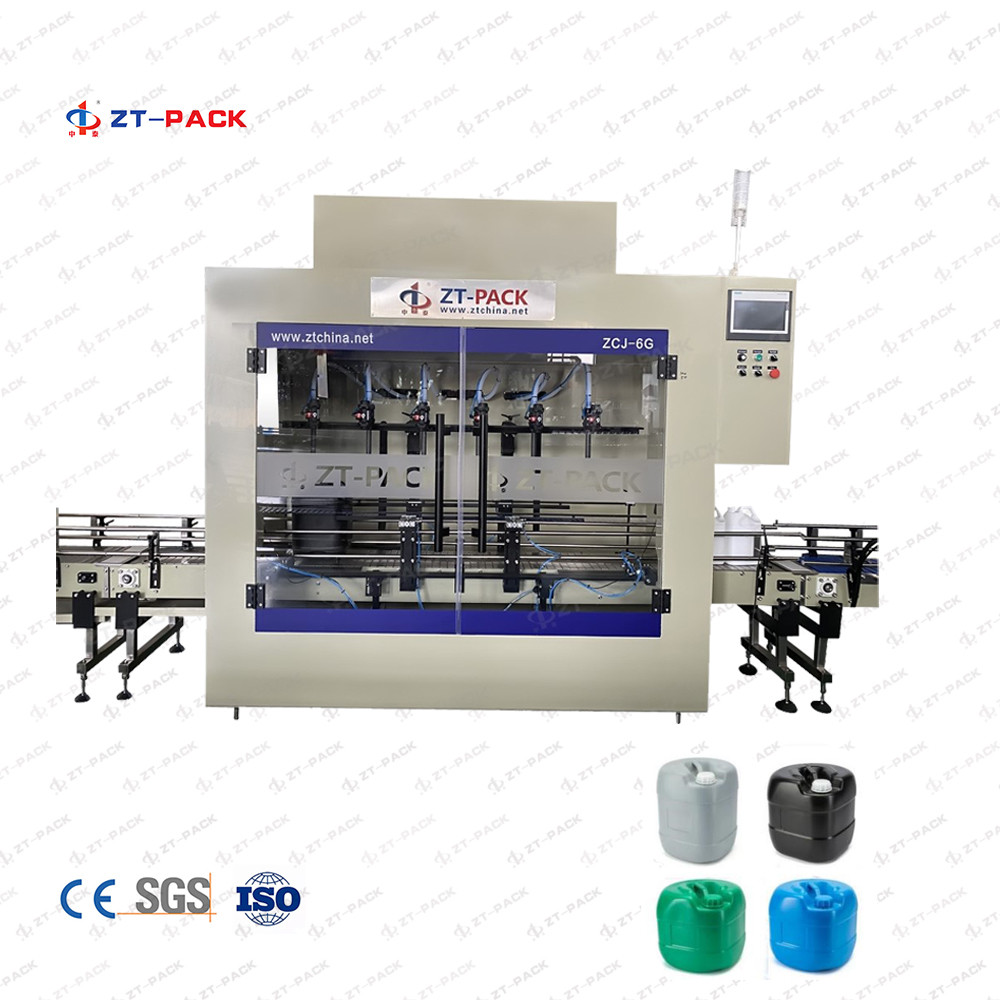

Machine Name : 5L-20L Corrosive Liquids Drum Gallons Filling Machine
Type : ZGP-G ( 20L )
Suitable For Filling: Bleach / / Toilet Cleaner / Flash / Acid / Chlorine / Sulfuric acid / 84 Disinfectant...Etc kinds Products
Filling Range : 5L-20L
Capacity speed : 200-600BPH can be choosen
Machine Material : Plastic
Machine Description :
This machine is used for the automatic low viscosity liquid filling in 5L -20L
The machine is a full corrosion-protecting high-tech filler integrating in the PLC program control, photo electricity transuding and pneumatic. The machine is specially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal. The equipment’s all parts touching liquid are manufactured with the non-metallic corrosion protection material, and designed the descending filling function. Measurement accurate, there is not bubble and drool as filling.
FEATURES
· The weighing filling machine is made of PVC.
· The machine uses a PLC with touchscreen as its control system.electrical control panel 2-3 meters far away from filling machine in case any problem , will not damage for control parts
· The diving nozzle is designed to prevent bubble formation.
· The machine is easy to take apart and clean for routine maintenance.
· An alarm will sound in the event of machine failure.

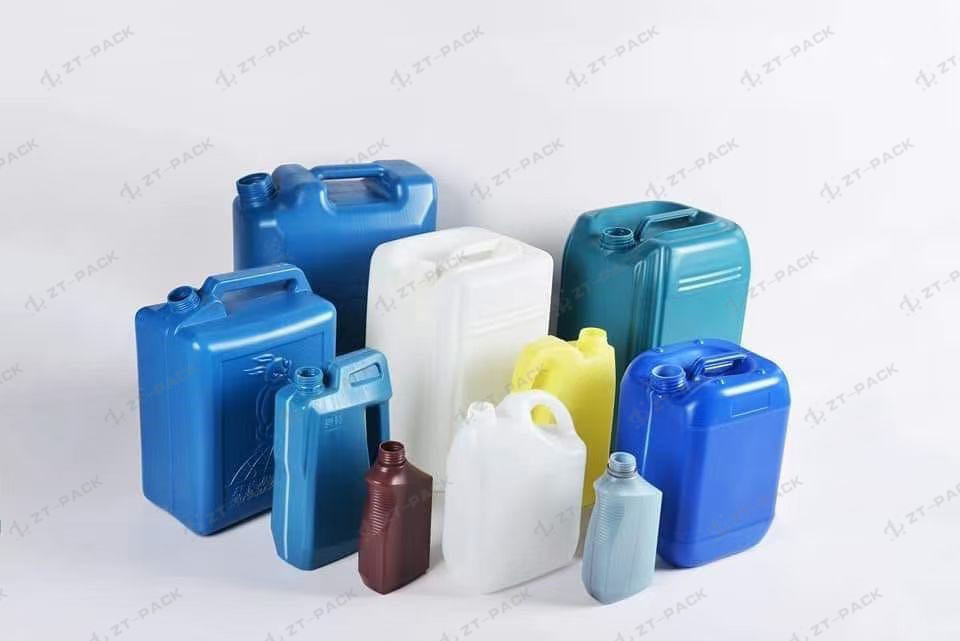

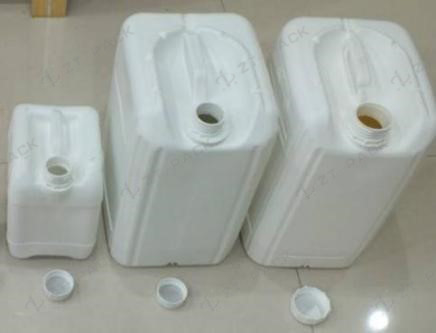

· Flexible operation: suitable for filling bottles in a range of 5 to 20L in capacity.
Capacity speed(choosen):
Suitable To Fill :
Machine Details :
Specifications are subject to change without notice, All rights are reserved.
Major characteristics :
This non-metal filling machine specially designed for strong acid and alkali product, such as: hydrochloric acid products bleach.
(1)PLC controlled, friendly touch screen control.
(2) Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
(3) Vacuum suck back for dripping can be special designed for foamy product.
(4) All wetted parts are made of non-metal materials, anti-corrosion.
(5)Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
(6)Bottle inlet counting, quantitative filling, bottle outlet counting, and serious motions can be done automatically.
(7)Simple structure, easy operation, Low noise, reliable running, accurate filling.
Heavy duty plastic construction
Controls PVC / Polyurethane Contact Parts
Plastic reservoir
Acid resistant tabletop chain
Automatic product level sensing float system
Safety guarding
Easily adjustable nozzle height settings accommodate different height containers
Pneumatic indexing gates (count in, count out)
Able to output multiple doses per container for large containers
User friendly PLC controls with touch screen HMI
Easy clean stainless steel quick connect fittings
Neck grabbers for containers wtih small opening
No bottle/No fill
Various indexing systems – pin or gate,timing screw,starwheel and shuttle

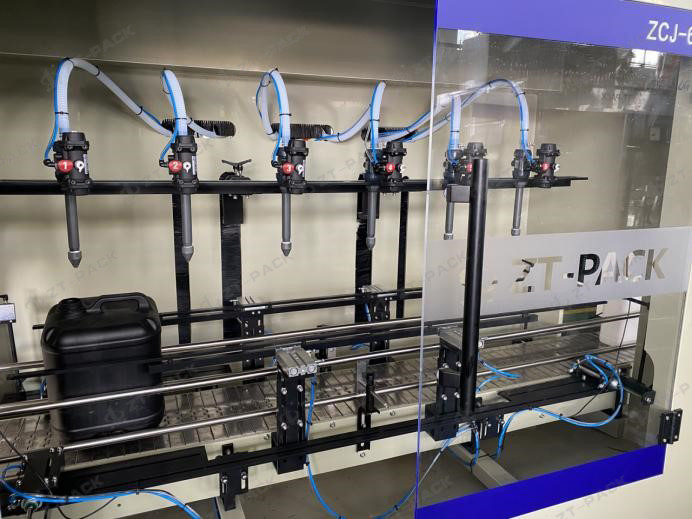

Diving heads nozzles for bottom up filling to reduce foam
Drip Tray
Output depends on fill size,viscosity of the liquid and type of container,Available with 6, 8, 10, 12 and 16 filling head. if you are unsure how to choose, please let us know and our professional team will give you specific advice on the best filing machine to fit your requirements.
What product to fill
What output capacity to achieve
What material and shape of containers
What size to fill
