Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | FX-1 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100sets per month |

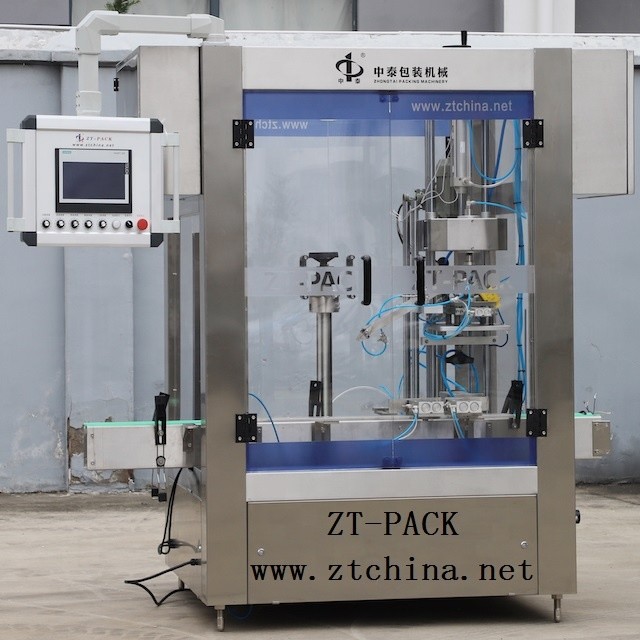

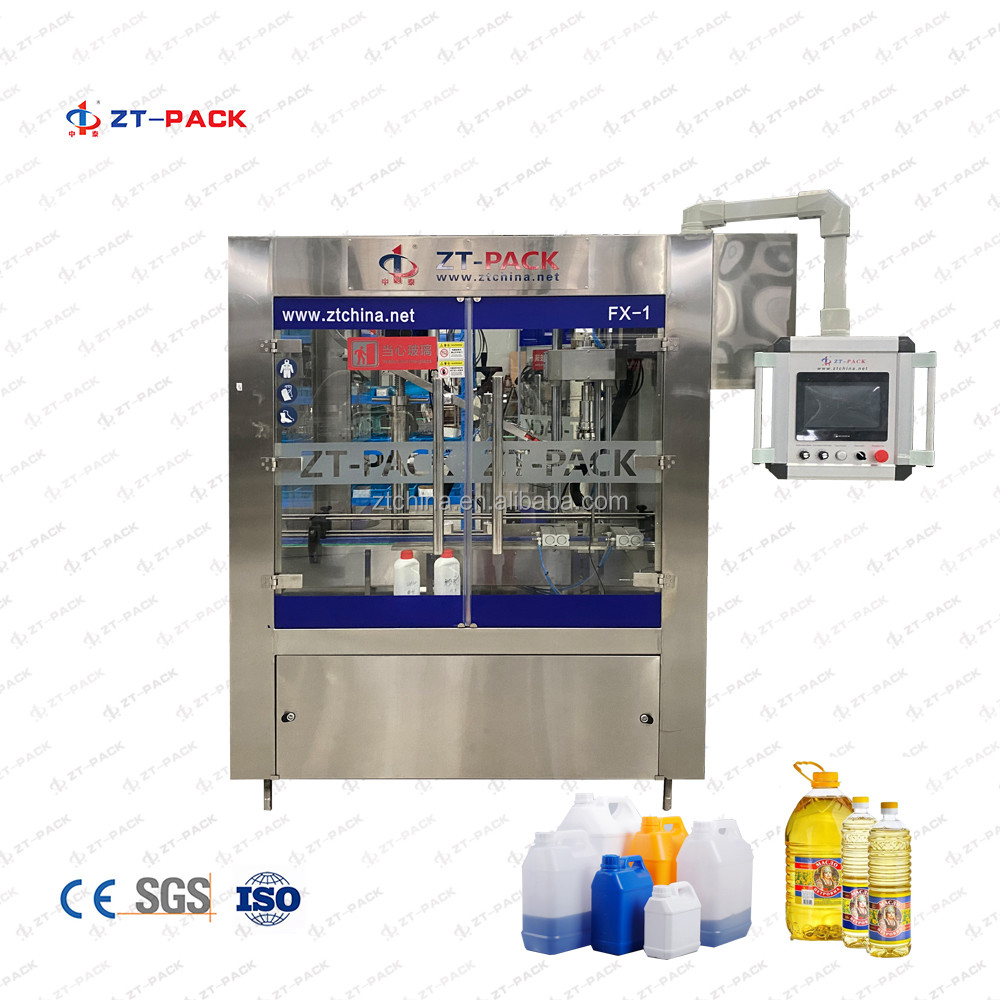

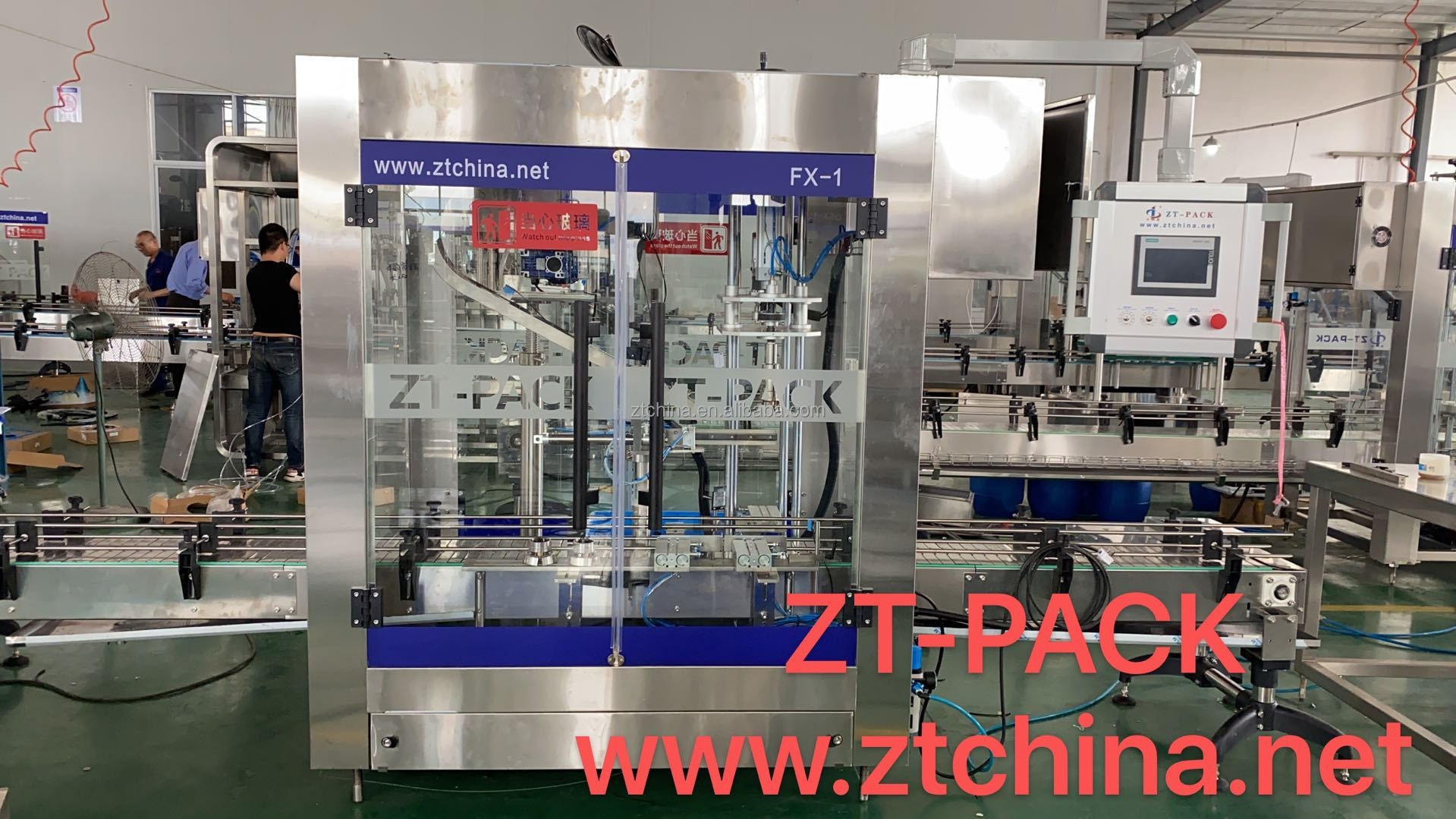

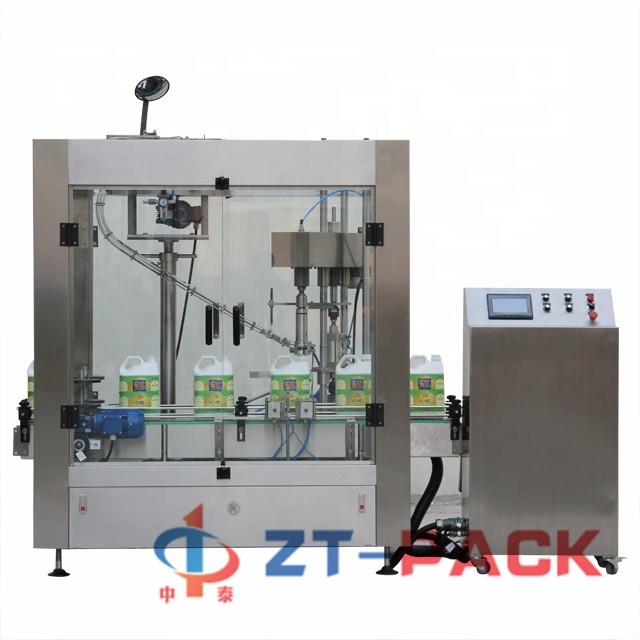

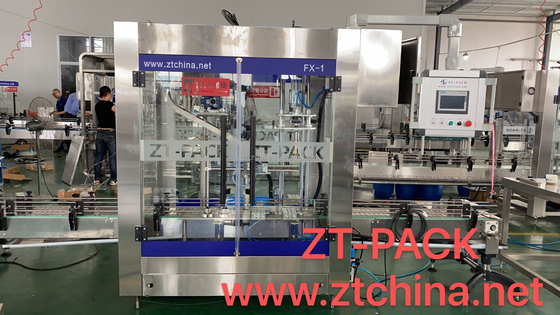

Small Capacity Pick And Place Type Single Head Plastic PET Bottle Capping Machine
Description:
This machine is protective automatic capping machine and control by PLC program .Bottles will be fixed by two cylinders and it can automatically arrange lid , taking lid and sending lid,it will first grasp lid then capping under control of double-acting cylinder lifting stroke. The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage. It suits for capping of 5-25kg drum plastic large diameter caps.
Parameter:
| 1 | Capacity | ≤1200 bottles/hour |
| 2 | Applicable bottle diameter | ≤210(L)×130(W)mm |
| 3 | Applicable bottle height | ≤3200mm |
| 4 | Cap diaeter | ≤70mm |
| 5 | Air pressure | 0.6-0.8Mpa |
| 6 | Voltage | AC380V,50/60Hz |
| 7 | Total power | 2KW |
| 8 | Net weight | 550kg |
| 9 | Dimension | 2000(L)×1030(W)×2100(H)mm |
Details:
