Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | FG-4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100sets per month |

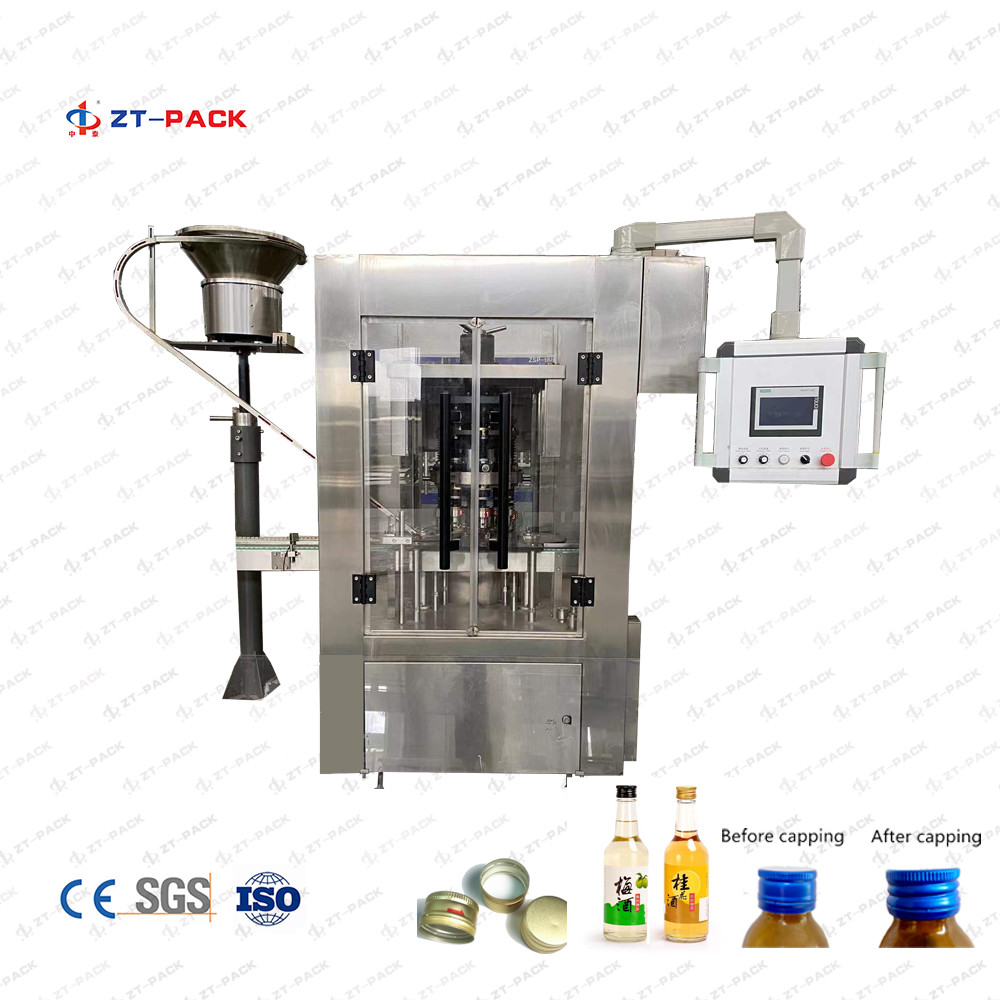

Rotary Aluminum Lid Capping Machine For Wine Olive Oil Juice Product
Description:
This machine combines bottle-in, cap-sorter, cap-elevator, capping and bottle-out altogether in one. The rotary structure , catching the lid in the certain position, stable and reliable. It does no harm to bottle and lid . High capping efficiency, high qualified rate of capping, and wide application which enjoys good competitiveness that can be compared with foreign products. It is applicable to varies size of glass and plastic bottles and caps. Its operation principle is by means of the scratching plate to cap the the lid when the bottle rotaryed. The whole machine is controlled by the PLC, touch screen interface and convenient operation.
Suitable for all aluminum lids, such as food and beverage, olive oil, alcohol products.
Features:
1. The rotary structure, using dedicated cap-catcher to grab lid, stable and reliable. Cap-catcher is designed inside a wear-resistant rubber, can effectively eliminate the injury lid in the capping process.
2. A inspecting sensor is installed on the bottle-dividing part. This can realize no bottle, no cap. The machine will automatically stop if the bottles are stuck. This protection structure is owned by our company.
3. the cap leader part come from the capper sorter ,catch by the capping heads to do the screw on bottles.
4. The elevating structure is electricity driven. Only one button in the touch screen can adjust the height. Fast changing mode with star wheel design , plus with the diamention marks makes changing different type of bottles easier.
5. With the feeder ,make sure all upset caps drop to the bucket. No nude orbit adopted solving the lid-stuck problem efficiently. motor capper sorter for caps diameter bigger than cap height .
Parameter setting:
| 1 | Applicable bottle | Diameter: 40－100mm,Height 80－280mm |
| 2 | Cap Specification | Diameter : 15-50mm , Cap height: 15-35mm |
| 3 | Capping Head | 4 |
| 4 | Capacity | ≤4000 bottles/hour |
| 5 | Capping qualified rate | ≥99% |
| 6 | Air Pressure | 0.6～0.8MPA |
| 7 | Power Source | ～380V,50HZ |
| 8 | Power | 3KW |
| 9 | External Dimension | 2200×1360×2400(L×W×H)mm |
| 10 | Weight | 1600Kg |
Configure:
| No . | Name | Brand | Country | Qty |
| 1 | Reducer motor | Ziguang | China | 1 |
| 2 | Power button | Schneider | France | 1 |
| 3 | Frequency inverter | Schneider | France | 2 |
| 4 | Sensor for bottles | OPTEX | Japan | 1 |
| 5 | Sensor for caps | Omron | Japan | 1 |
| 6 | Cap sort motor | Ziguang | China | 1 |

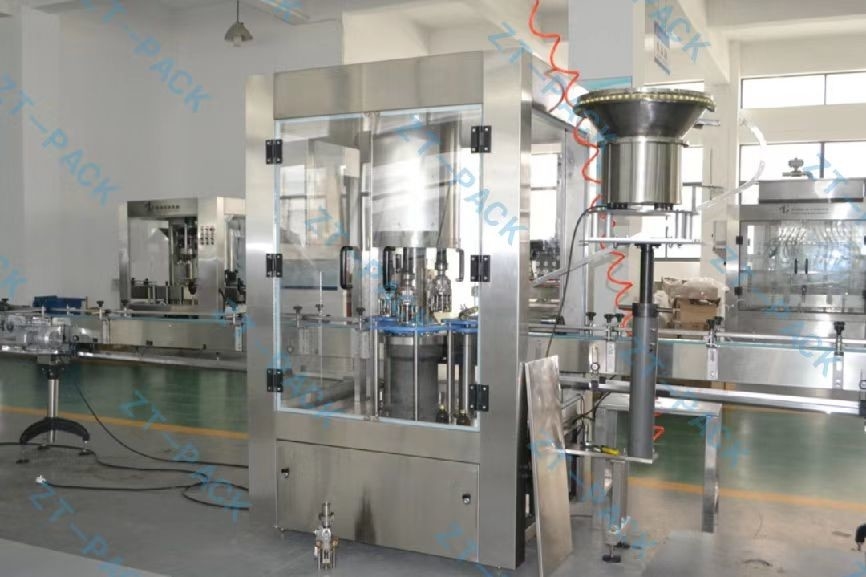

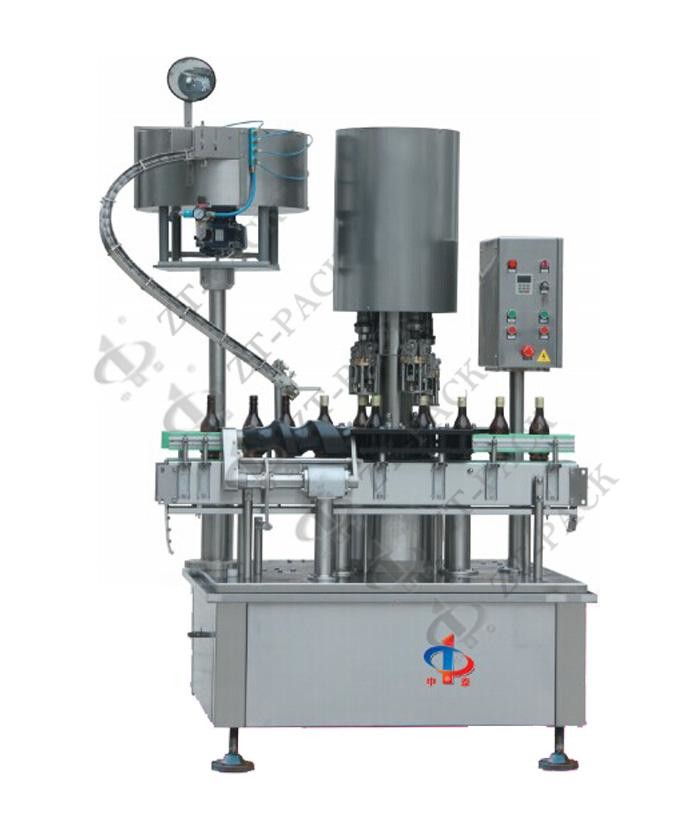

Pictures:
