Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO |
| Model Number: | ZGP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 45 sets per month |

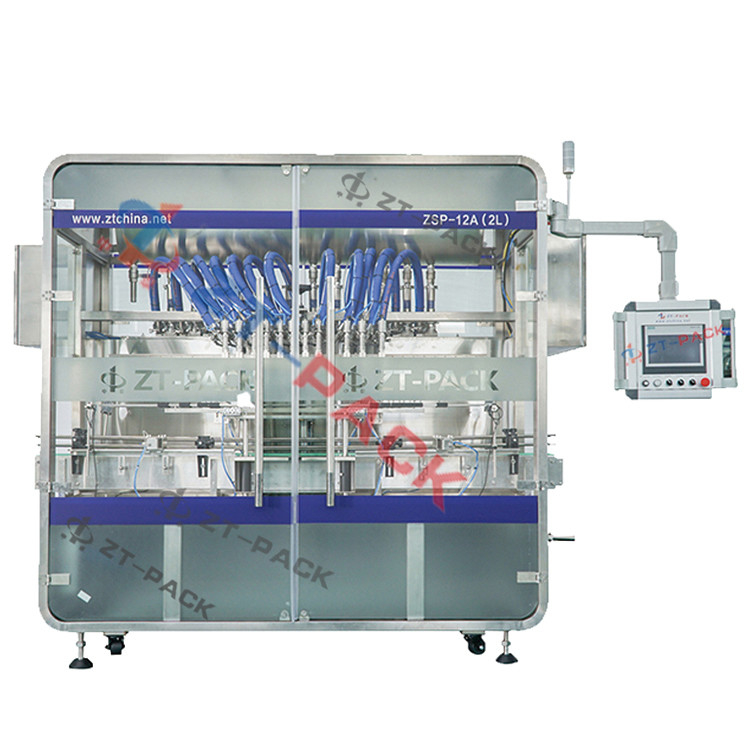

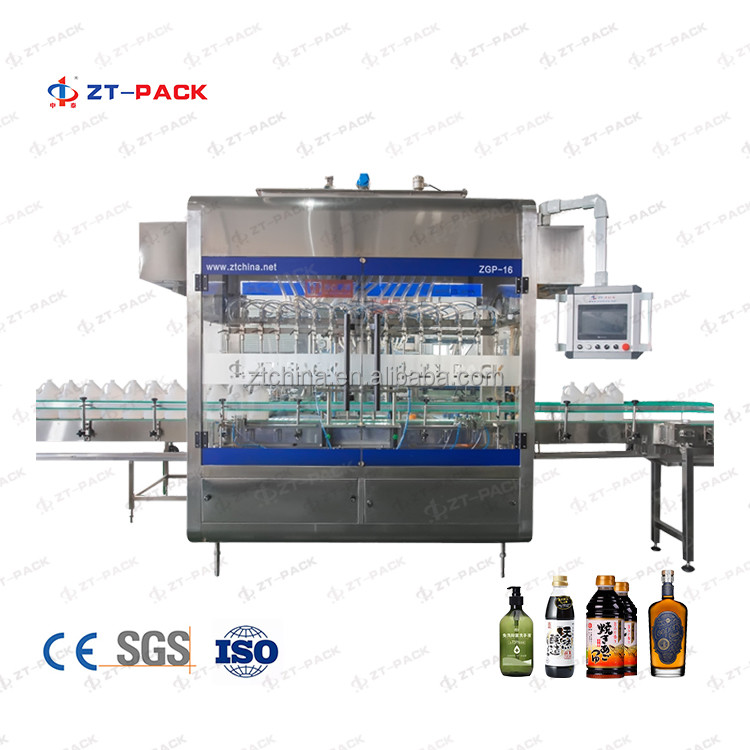

Automatic General Type Edible Vinegar Soy Sauce Gravity Liquid Bottle Filling Machine
Description:

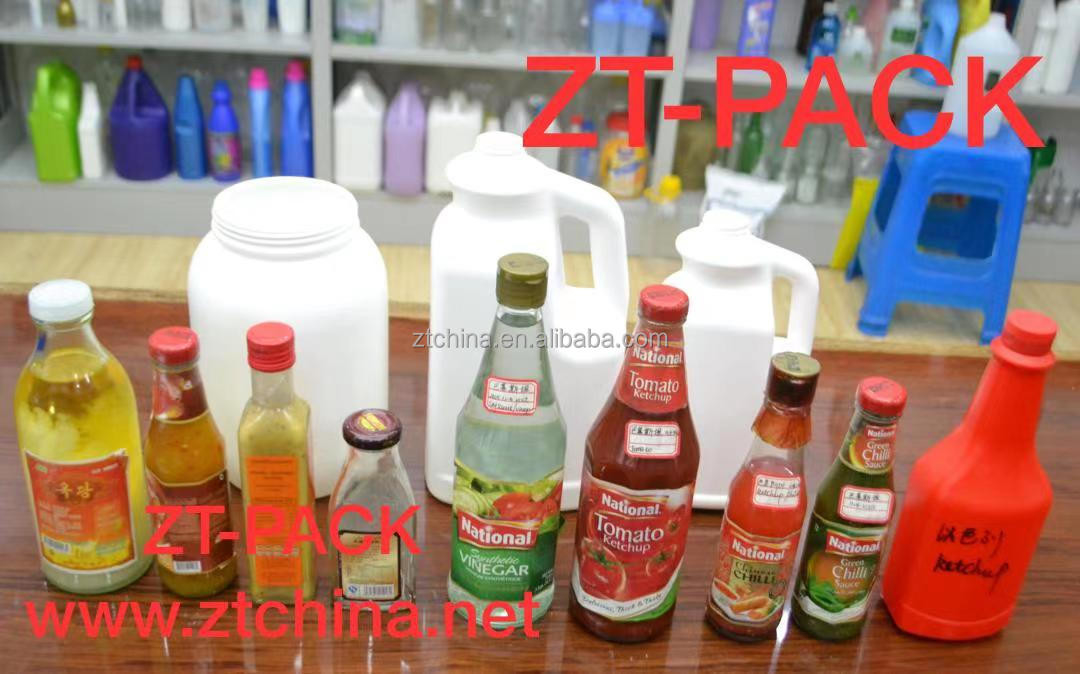

Suitable for fill: Vinegar / Soy Sauce/ Cooking Wine / Apple Cider Vinegar / Alcohol... Etc kinds Products
Filling Range : 50ml -1000ml ;1L -5L ; 4L -20L
Speed can be chosen: From 1000BPH-6000BPH (Basic on 1L )
Suitable for: Round & flat bottles
1. Very fast and easy changeover of format size

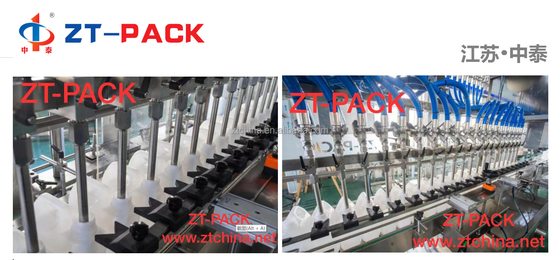

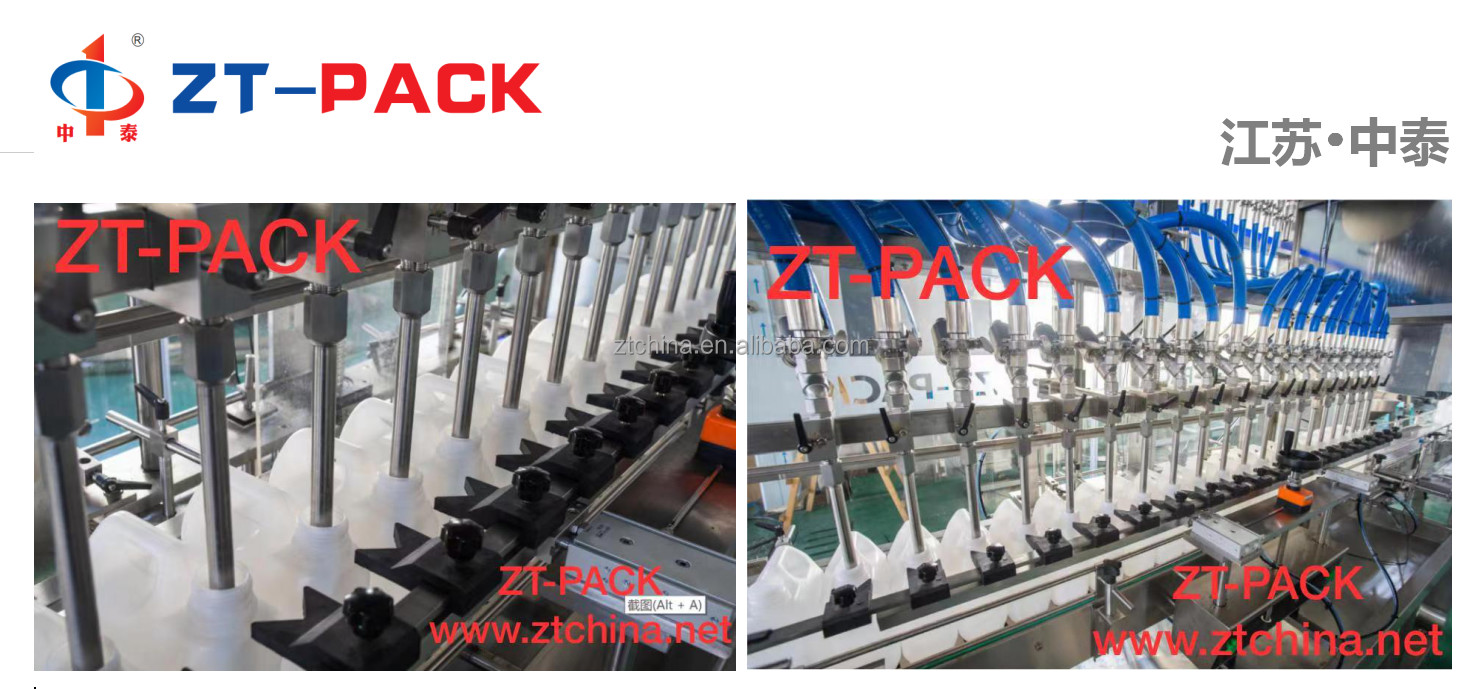

2. Diving nozzle with bottom-up filling
Parameters:
| Model | ZGP-6H | ZGP-8H | ZGP-10H | ZGP-12H | ZGP-16H |
| Dimension | 2000×710×2200mm (L×W×H) | 2200×710×2200mm (L×W×H) | 2300×710×2200mm (L×W×H) | ||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 1800 B/H | 2200 B/H | 2800 B/H | 4000 B/H |
| Power | 1KW | 1 KW | 1KW | 1.5KW | 1.5KW |
| Suitable bottle | Diameter:Φ33mm——Φ100mm Height:80mm——280mm | ||||
| Filling accurate | ≤100ml:+ -1.5ml 100-500ml:+ -2ml 500-1000ml:+ -3ml |
||||
| Neck diameter | Φ18mm | ||||
| Filling range | 50ml——5000ml | ||||
| Air pressure | 0.6Mpa | ||||
| Power supply | 220V ；50HZ | ||||
Main performance patameter:
1. Capacity:≤4000 bottles/hour (500ml as medium)
2. Applicable Bottle Type: Round bottle Φ40-100 mm, Height 80-280 mm
Flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L×W×H)
3. Bottle's mouth diameter:≥φ25mm
4. filling range:100-5000ml
5. Precision: (100ml) ±1% ;(100ml-1000ml)±0.5%
6. Air pressure: 0.6~0.8 MPA
7.Air consumption:120L/minute
8. Power Source:~380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight: About 850Kg
12. Production line height:850mm±50mm
13. Filling materials: Viscosity liquid
14. Bottle feed direction: From left to right
Details:
