Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 45 sets per month |

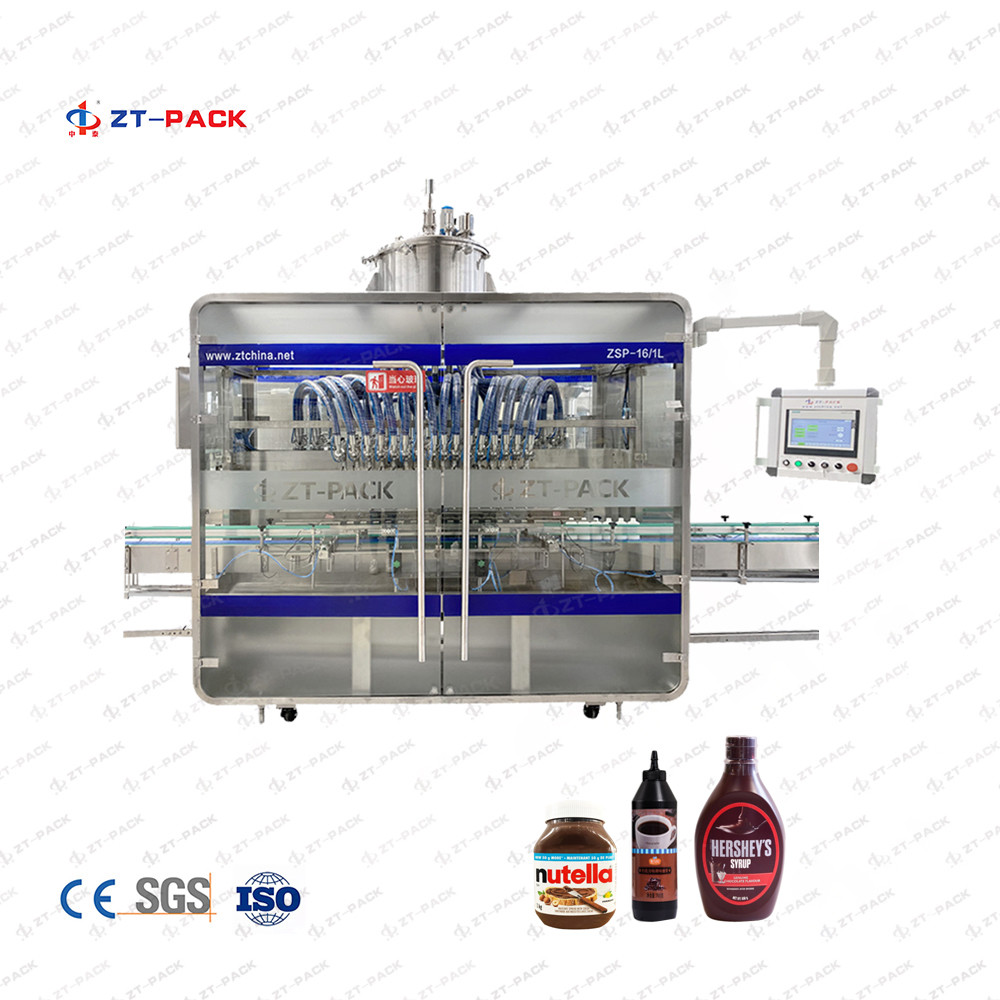

High Quality 500ml Chocolate Sauce Small Bottle Capping Labeling Sauce Filling Machine
Description
High Quality 500ml Chocolate Sauce Small Bottle Capping Labeling Sauce Filling Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials. . The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
Ideal For Food Packing :
1: High Viscous Paste Jam
2: With Chunk Or Without Chunk All Can Fill
3: Meet GMP Food Standard For Cleaning
4: Hot Filling with High Quality Pipes
5: Filling Range : 50g -1000g
1KG-5KG
6: Capacity Speed : 1000-6000BPH can be Choosen
7: Glass Bottle / Plastic Jar All Can Share without change parts
Suitable For Filling: Sauces / Ketchup / Salad Dressing / Honey / Jam Sauce / Bean Paste / Viscous Food ...Etc kinds Products
Feature:
1. Stainless steel and sanitary pipes are used, and the connection parts are all fast-connected.

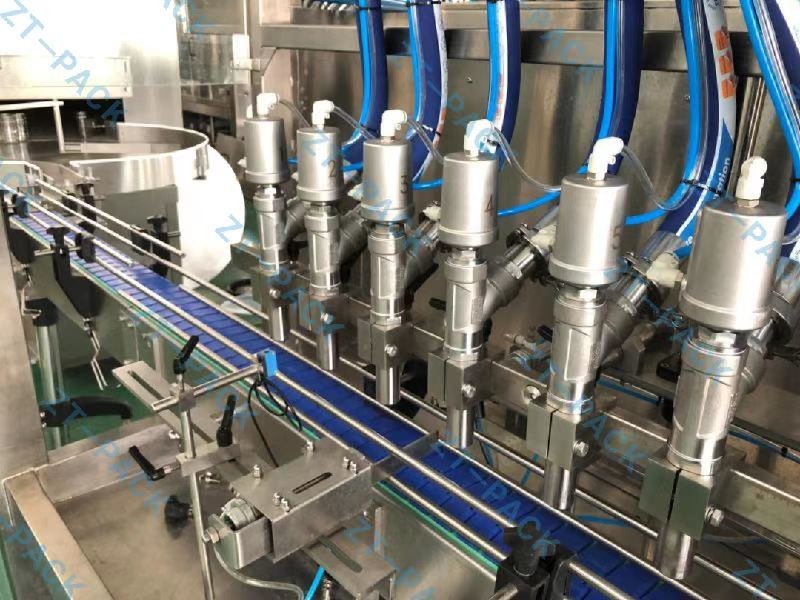

2. The servo motor control belt drives the submerged filling mode of the filling head operation.
3. It can also adopt the de-cylinder structure, which can completely empty the material in the material tank, effectively avoiding cross-contamination of materials, and replacing the sealing ring is more convenient and quick.
4. The latest PTFE technology piston seals improve wear resistance, longer service life and lower maintenance costs.
5. Single-row layout cylinders and fast change-over fixing method which is very easy for cylinder disassembling and the sealing parts cleaning inside.
Parameters:
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension |
2200mm(L)x1100mm(W) x2200mm(H) |
2300mm(L)x1100mm(W) x2200mm(H) |
2400mm(L)x1100mm(W) x2200mm(H) |
||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm | ||||
| Neck diameter | Φ18mm | ||||
| Filling range | 50ml--1000ml (From ZT-PACK) | ||||
| Filling System | Piston Type | ||||
| Air pressure | 0.6Mpa--0.8Mpa | ||||
| Power supply | 380V ;50HZ / 60HZ | ||||
Details:
