Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | FDB |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100sets per month |
Stainless Steel Vacumm Steam Twist Off Capping Machine For Metal Cap
Description:
It is an all-stainless steel model after two generations of improvement, with good performance and easy operation. All stainless steel models, beautiful appearance. The color touch screen man-machine dialogue is adopted, and the programmable logic controller (PLC) is used for high-precision automatic control. It is suitable for capping of cans, beverages, condiments, medicines, and chemical products. It can vacuum cap various three-, four- and six-screw screw-top bottles. Four-turn, six-turn screw cap. The whole machine has compact structure, stable operation, low noise, low energy consumption, easy operation, convenient adjustment, maintenance and cleaning, complete functions and high degree of automation. It is an ideal bottle sealing equipment with high quality and efficiency.
Features:
This machine digests and absorbs the advantages of foreign advanced models, adopts the frequency conversion stepless speed regulation method, and adapts to the user's requirements for various bottle sealing speeds. Cap, and then rinse with cold water to cool it to a certain degree of vacuum; the cap feeding device uses the principle of "parabolic tracking sliding", as long as the cap is poured into the feeding hopper at will, the cap organizer will automatically comb the bottle cap, which is dexterous In a very short time, the machine smoothly and accurately automatically and continuously completes "cap supply", "positioning", "covering", "spraying steam", "sealing", etc. a series of actions. At the same time, the machine adopts non-contact induction switch (electric eye) control to realize automatic cap supply. If there is no cap, the bottle feeding will be stopped, so as to ensure the work in an orderly manner and not damage the bottle or bottle cap.
This machine has a unique design and a wide range of applications. It can package bottles and caps of different specifications. It only needs to make simple adjustments on the machine without replacing parts. With different glass bottles and caps, users can realize product diversification.
Parameter setting:
| 1 | Model | FDB |
| 2 | Capacity | 4000BPH |
| 3 | Closure Types | Three twist cover,Four twist cover, Six twist cover & Pressing twist cover |
| 4 | Cap/Jar Diameter | Ф30-Ф90mm |
| 5 | Bottle/Jar Diameter | Ф30-Ф100mm |
| 6 | Bottle Height | 65-260mm |
| 7 | Motor Power | 3.12kw |
| 8 | Steam Consumption | 180-230kg/h |
| 9 | Steam Pressure | ≤0.4MPa |
| 10 | Max. Vacuum Degree | 67kPa(502mmHg) |
| 11 | Weight | 1100kg |
| 12 | Outer Dimension | 3000×1100×2000mm |

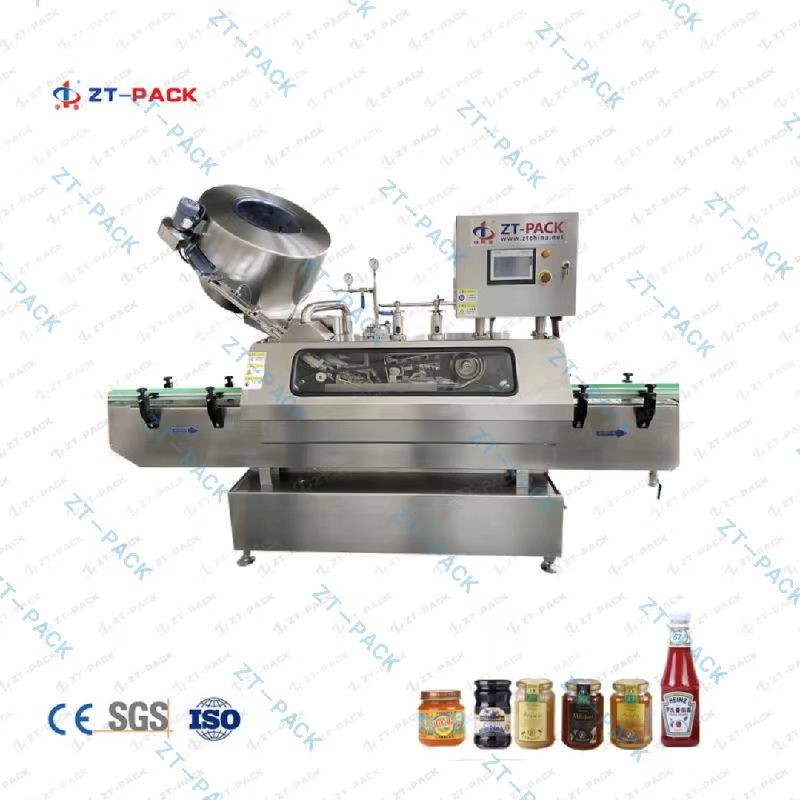

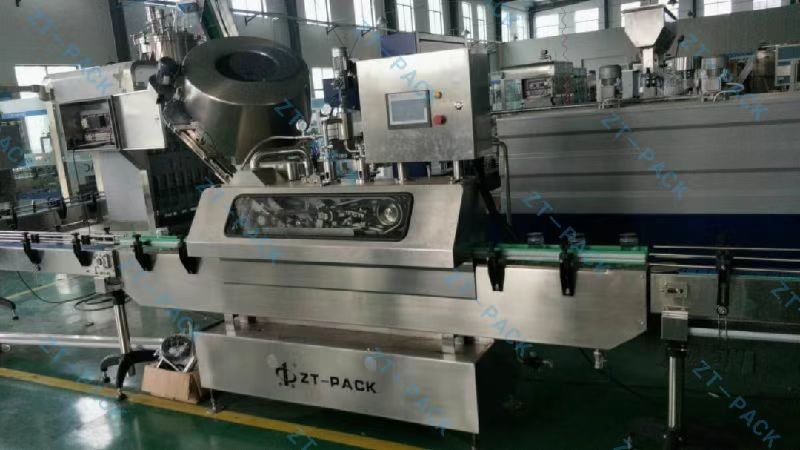

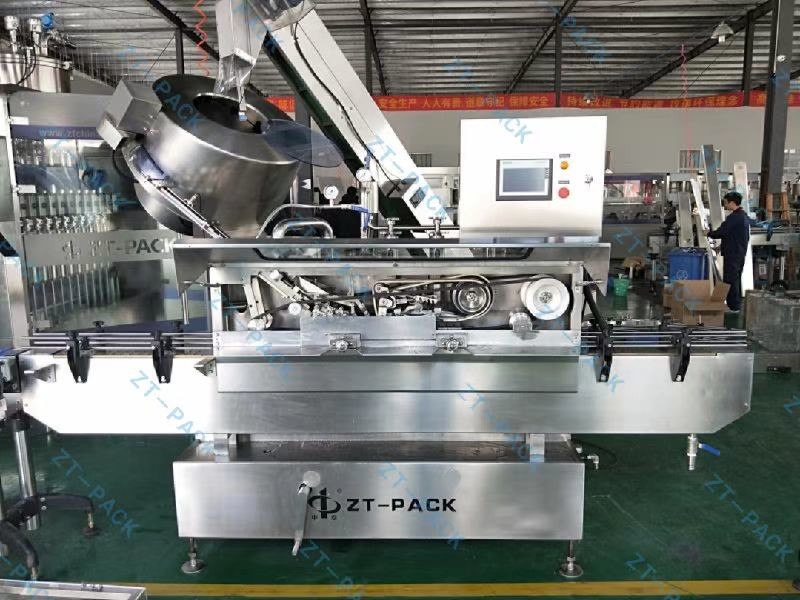

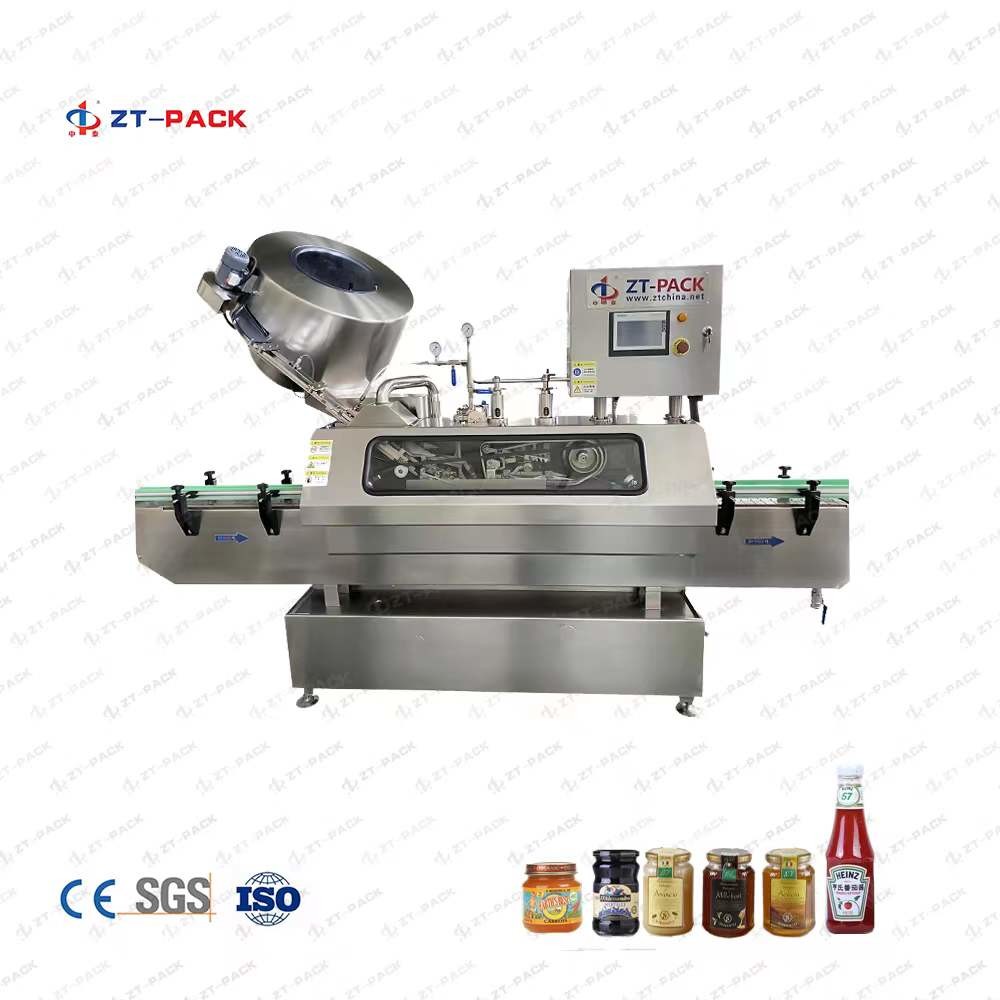

Pictures:
