Ss 304 Automatic Bottle Sealing Machine Bottle 50-220mm Capping

Product Details:
Place of Origin: CHINA
Brand Name: ZT-PACK
Certification: CE/ SGS/ ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wooden packages
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 30sets/month
Specifications Product Description Request A Quote
Specifications
Specifications
Warranty: 1 Year
Voltage: 380V
Condition: New
Power(w): 15kw
Sealing Head: 2 Heads
Sealing Speed: 68~80 Cans / Min
Highlight:

ss 304 automatic bottle sealing machine

,

50mm automatic bottle sealing machine

,

220mm bottle capping machine

Product Description



Automatic Tin Can Seamer Sealing Machine





This machine is applicable for sealing of various tin cans, aluminum cans, paper cans, plastic cans and all kinds of round cans.









Performance features:



1. Can and cap inter-control mechanism, when there have cans entering, the caps drop to the can, no cans, no caps.

2. Simple control panel design, convenient and easy to adjust.

3. High production capacity, high grade automation, it is an ideal device for can sealing line.

4. Sealing roll wheel adopts SS304, hard and wear, rustless and with good sealing quality.



Characteristics:



1. Unmanned operation, full automatic drop cap and sealing cap.



2. Can without rotating while sealing, to protect the product and can, high precision, sealing quality is superior than the domestic same product.



3. The production capacity is 2--3 times of semi-automatic can sealing machine, and it adopts full automatic cap drop and sealing device, save time and manual work, and improve production efficiency.



4. Applicable to tin can, aluminum alloy can, paper can and other round type pop-top can, easy and convenient operation, it is an ideal device for food, beverage, medical and chemical industry, etc.



5. Suitable for plastic pop-top can, metal can, paper can or aluminum can or other round can sealing.











Technical Parameters:

Material Stainless steel 304
Sealing Head 2 Heads
Number of seaming roller: 4 (2 for first operation, 2 for second operation)
Sealing speed 68~80 cans / min
Sealing height 50~220mm (adjustable)
Applicable can diameter 35~130mm
Air sourse 0.6Mpa
Power 2KW
Weight 500KG

Working humidity:



35-85%



Size L2650*W110*H1650MM
Voltage 380V,60HZ
Conveyor Height 850+-50mm

Servo motor control ,Servo motor : Delta

PLC : Delta

Touch Screen : Delta

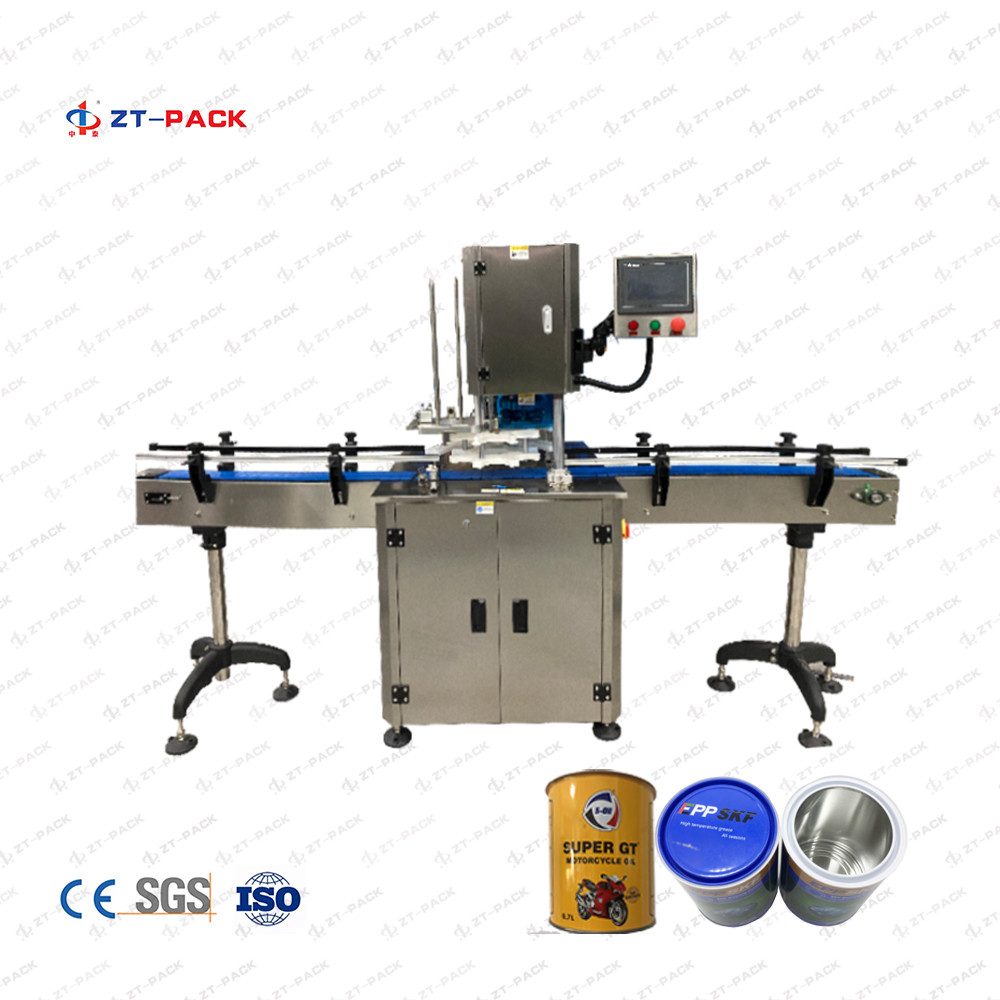

Ss 304 Automatic Bottle Sealing Machine Bottle 50-220mm Capping 0



Ss 304 Automatic Bottle Sealing Machine Bottle 50-220mm Capping 1

Ss 304 Automatic Bottle Sealing Machine Bottle 50-220mm Capping 2
