Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 45sets per month |

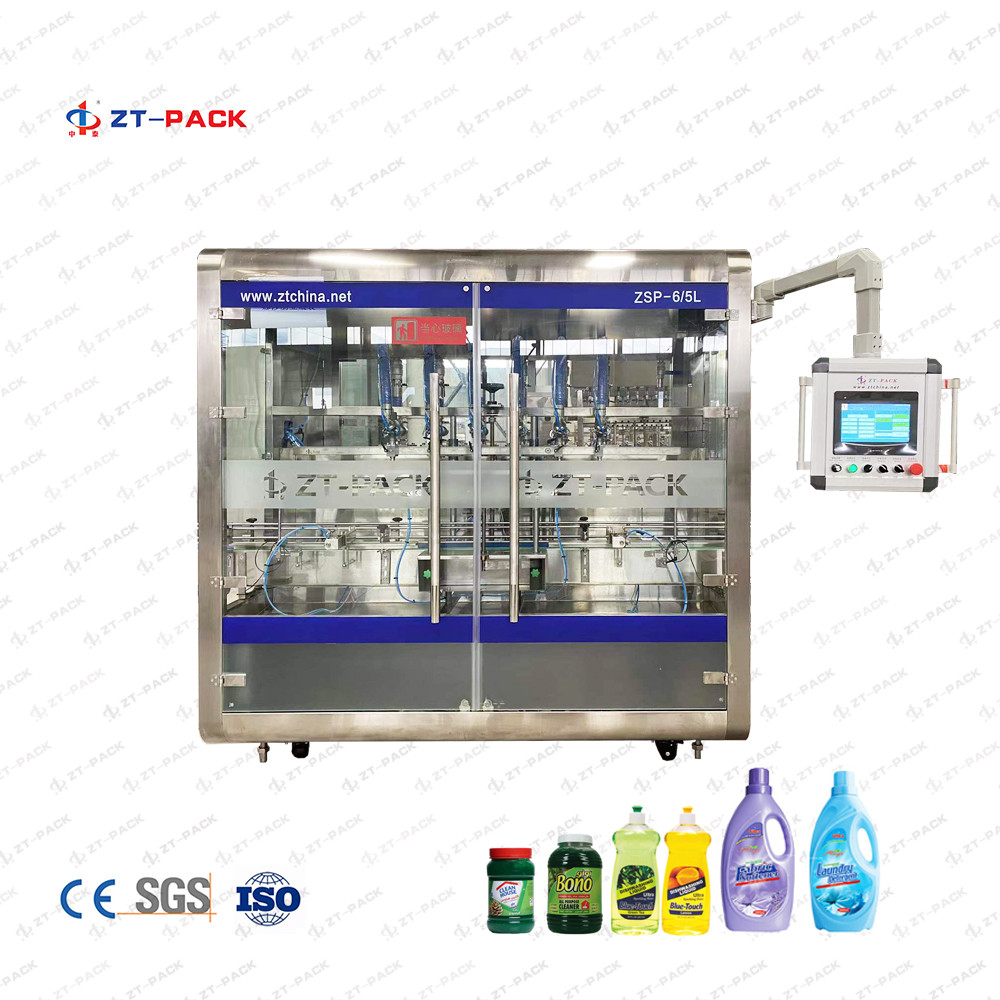

High Accuracy Servo Piston 1L-5L All purpose Detergent Power Gel Dishwash Liquid Bottling Filler 3800B/H 5l Automatic
Description
High Accuracy Servo Piston 1L-5L All purpose Detergent Power Gel Dishwash Liquid Bottling Filler 3800B/H 5l Automaticis the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials.
The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel / Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Feature:
This non-metal filling machine specially designed for strong acid and alkali product, such as: hydrochloric acid products bleach.
1. PLC controlled, friendly touch screen control.
2. Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
3. Vacuum suck back for dripping can be special designed for foamy product.
4. All wetted parts are made of non-metal materials, anti-corrosion.
5. Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
Parameter
| Capacity | ≤2000 bottles/hour |
| Applicable Bottle Type | 1. 1L Height 190-200mm,width 135-145mm,thickness 55mm. |
| Bottle’s mouth diameter |
1L diameter 35-45mm,machine design according to customer bottle
|
| Filling range | 100ml-5000ML |
| Precision | 100ml-5000ml)±0.5% |
| Air pressure | 0.6～0.8 MPA |
| Air consumption | 120L/minute |
| Power Source | ～380V,50HZ |
| Power | 2.5KW |
| External Dimension | 2440×1150×2300mm(L×W×H) |
| Weight | About 1850Kg |
| Production line height | 850mm±50mm |
| Filling materials | Viscosity liquid |
| Bottle feed direction | From left to right |

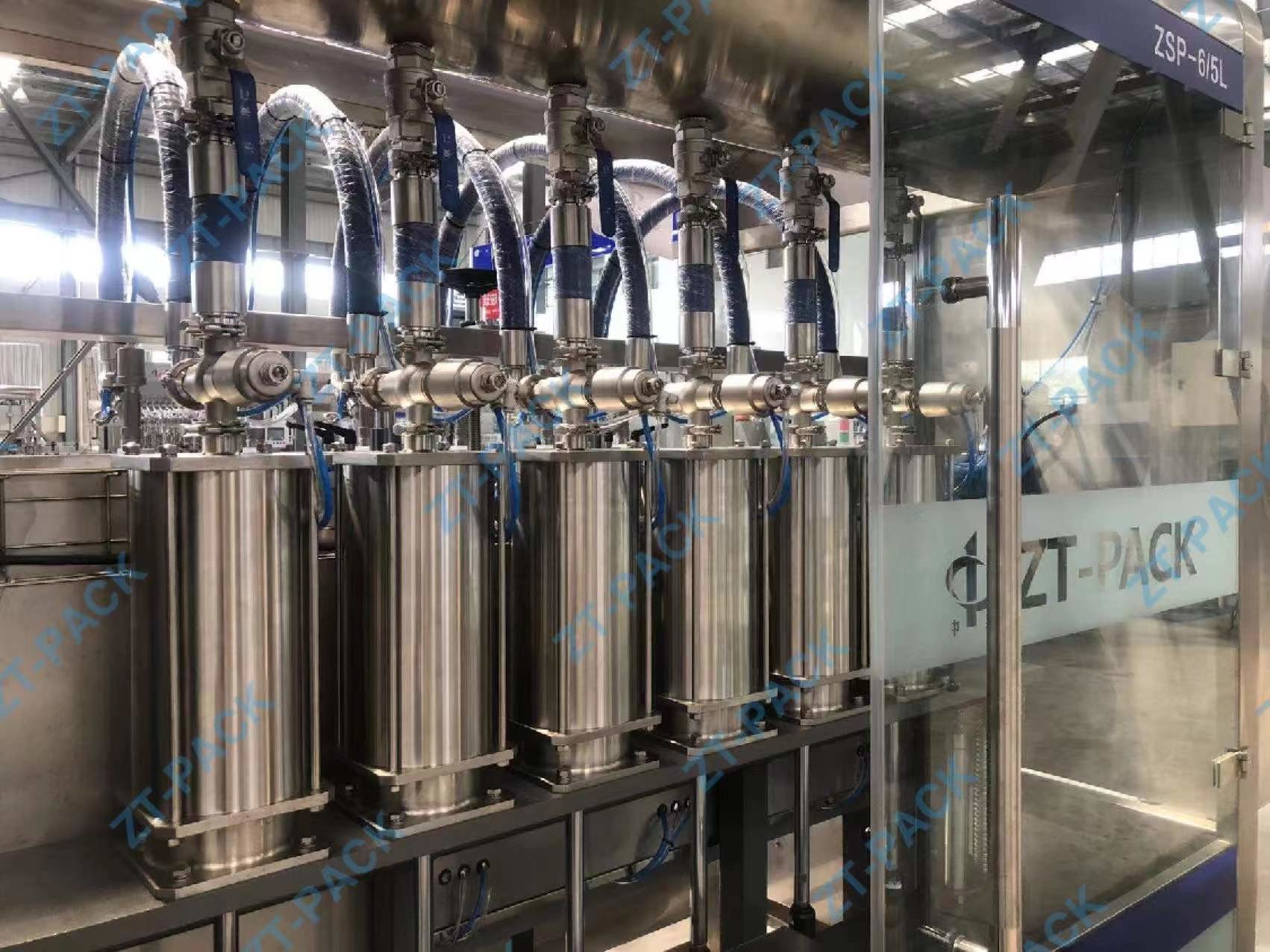

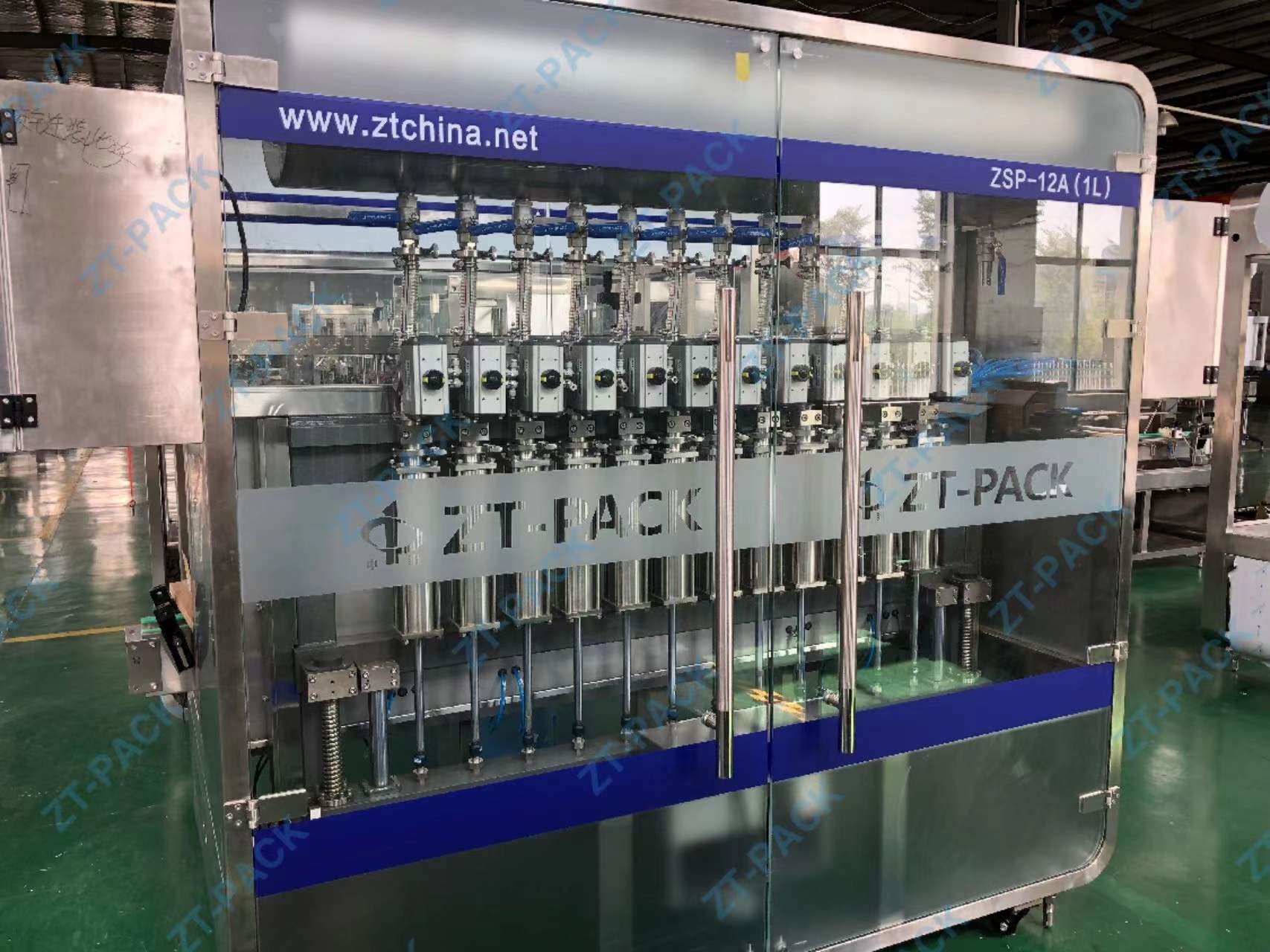

Detail:
