Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 45sets per month |

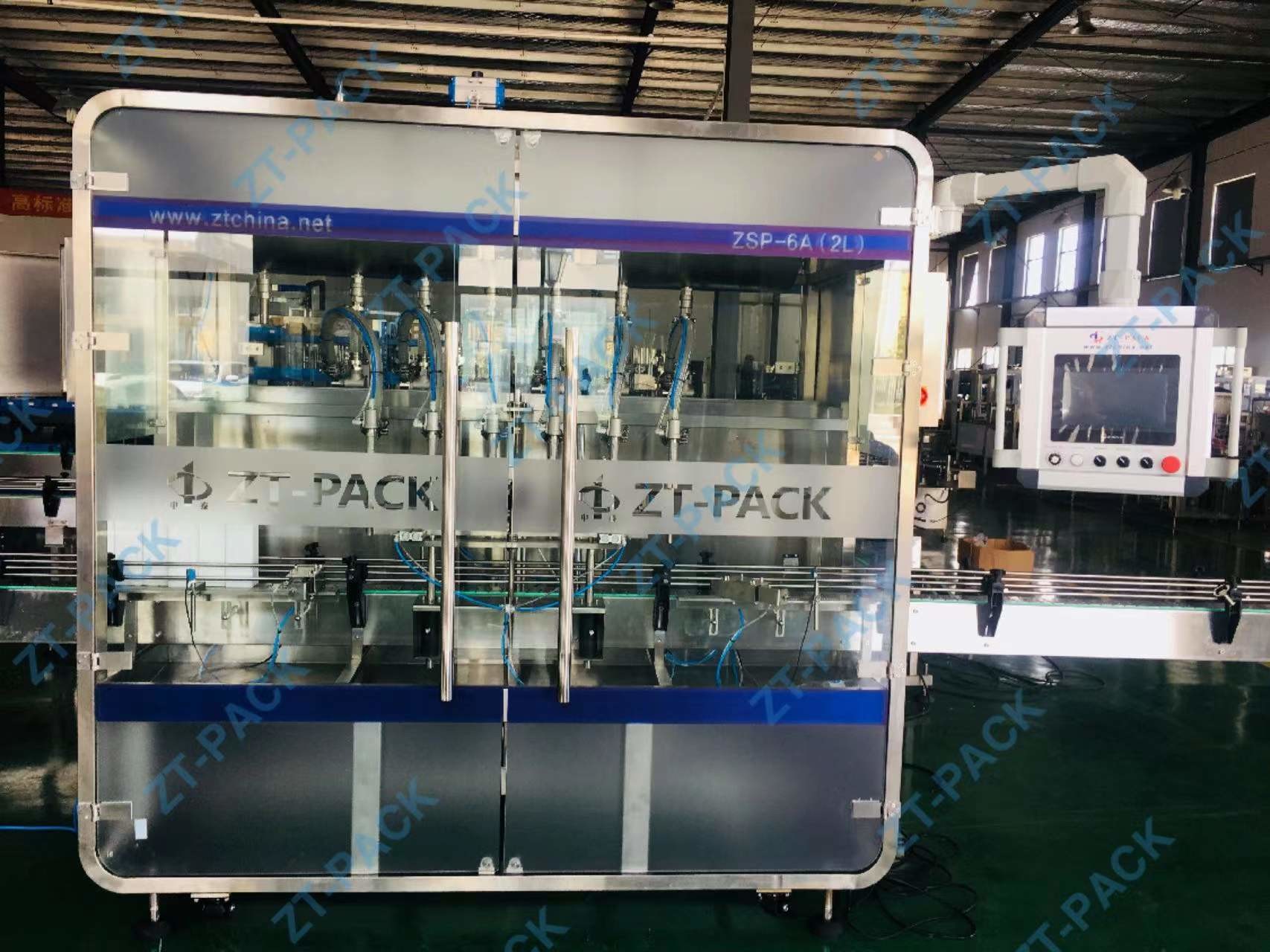

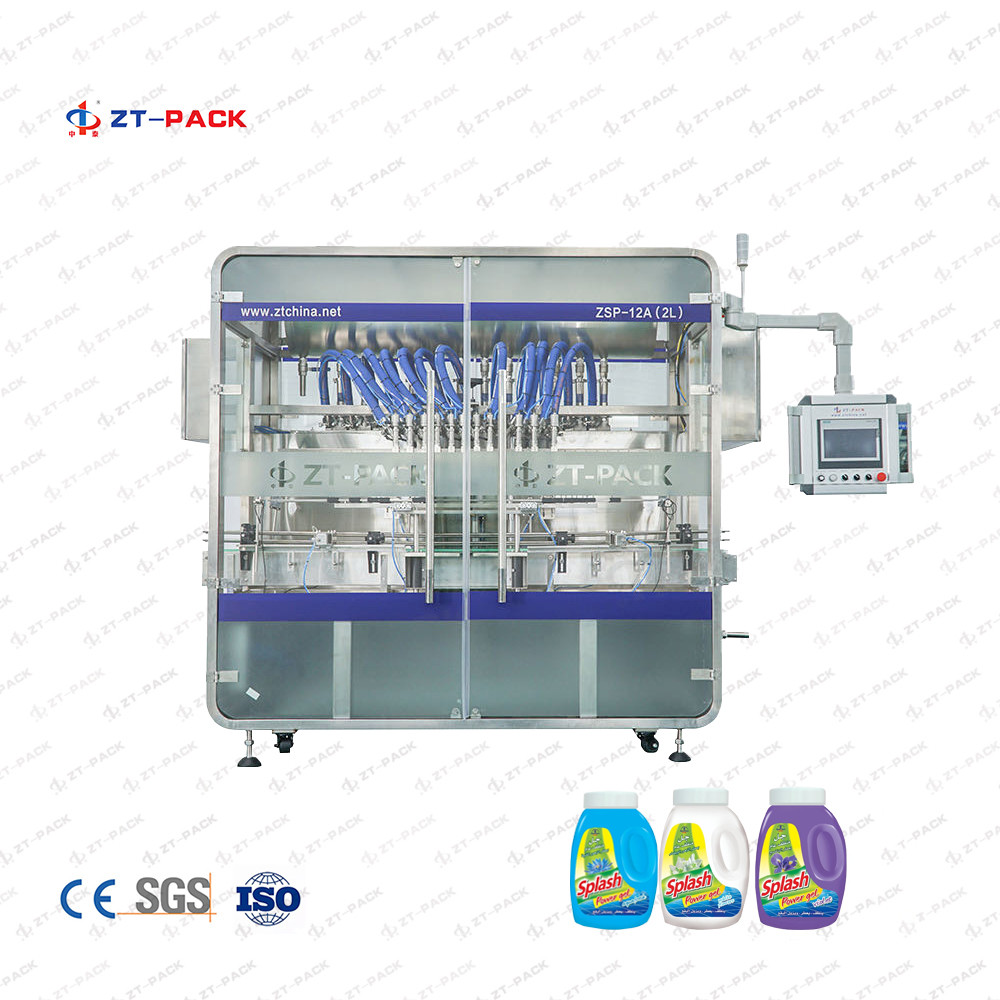

High Speed Detergent And Sealing Full Automatic 4000BPH Liquid Soap Filling Machine Full Line
Description
High Speed Detergent And Sealing Full Automatic 4000BPH Liquid Soap Filling Machine Full Line is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials.
The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.

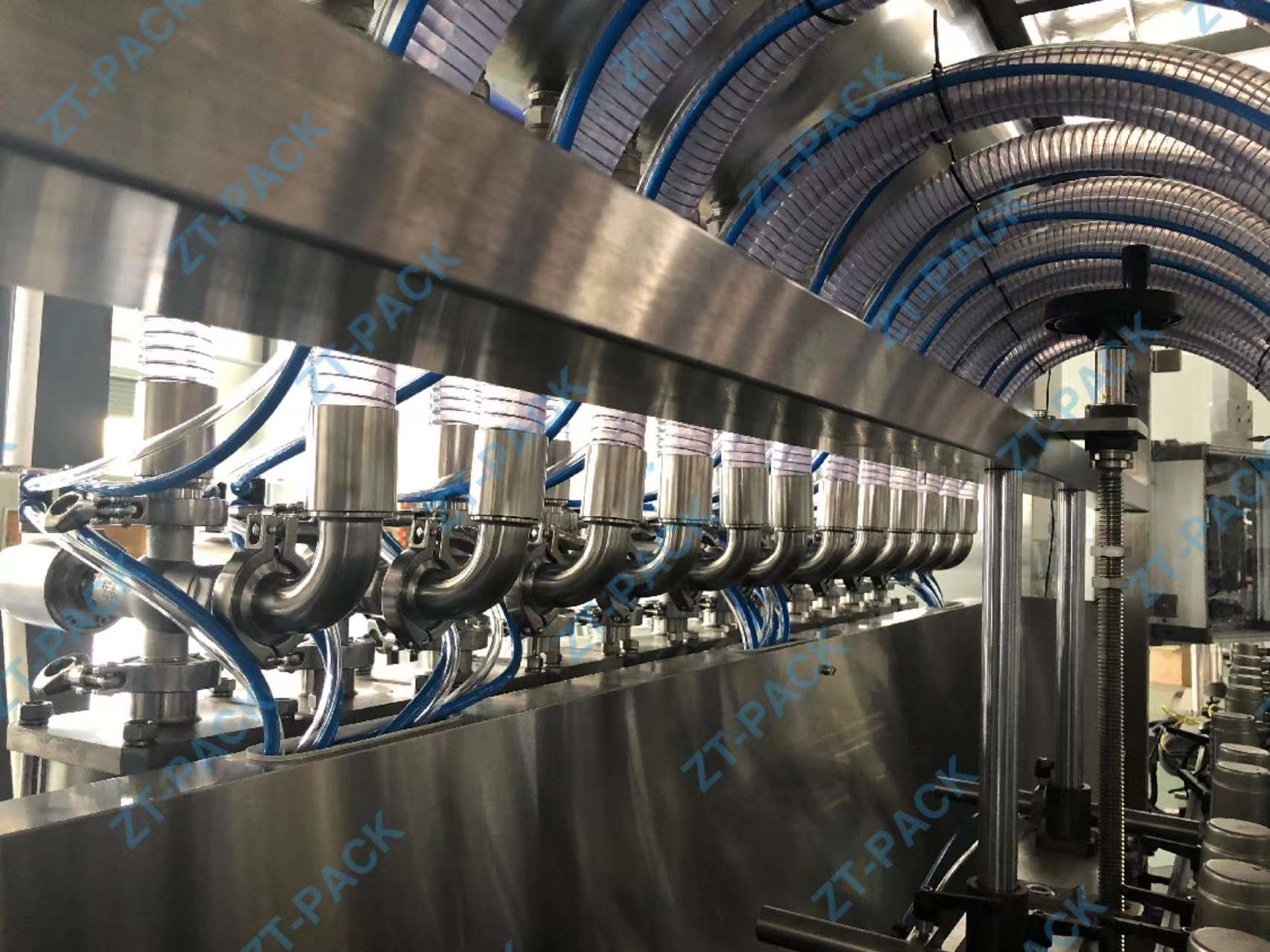

Empty bottles are staged on the main drive conveyor prior to entering the piston filler. Bottles enter the filler and are counted by optical sensors to ensure the correct numbers of bottles are in position. Once in place, bottles are locked in position by the pneumatically operated bottle clamping mechanism. This ensures bottles are located correctly under each filling head to minimize under or over-fills. The filling process begins as a series of stainless steel valves descend into the bottles for fast, accurate and consistent filling. After target volume is achieved, the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel / Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Parameter
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
Detail:
