Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 45sets per month |

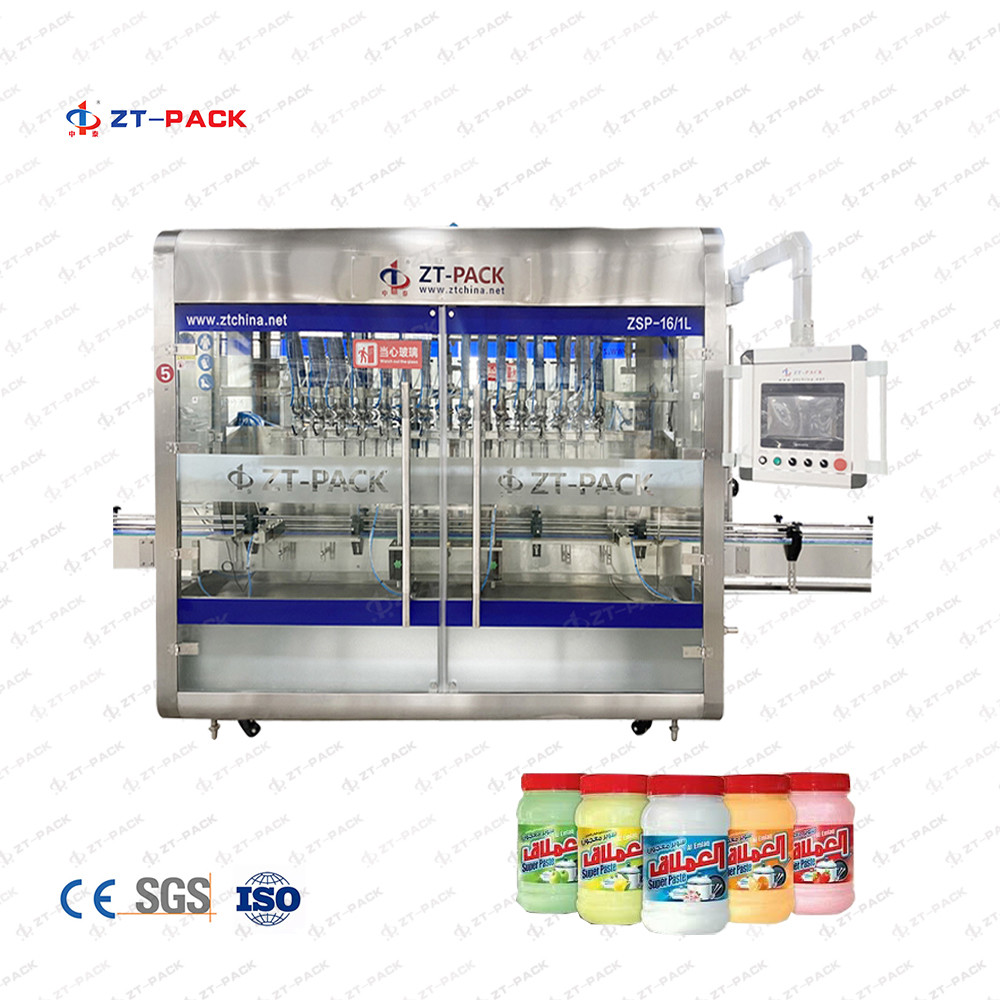

High Tech Filling Laundry Detergent Liquid Soap Dispenser Pump Filler Machine Automatic Full Production Line
Description
High Tech Filling Laundry Detergent Liquid Soap Dispenser Pump Filler Machine Automatic Full Production Line is the new-generation improved volumetric filling machine that is suitable for materials: agrochemical SC, pesticide, dishwasher, theoilkind, softener, detergent cream class contour viscosity materials.. The whole machine uses the in-line structure and it is driven by the servo motor. The volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface, and easy operation. The machine is equipped with an electric scale weight feedback system which makes the volume adjustment easier. it is an ice choice for foodstuff, pharmacy, cosmetic and chemical industries. This series of models is suitable for liquid and semi-automatic liquid without gas. Automatic counting is completed into the bottle, quantitative filling, and bottle conveying a series of operations.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel / Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Feature:
This non-metal filling machine specially designed for strong acid and alkali product, such as: hydrochloric acid products bleach.
1. PLC controlled, friendly touch screen control.
2. Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
3. Vacuum suck back for dripping can be special designed for foamy product.
4. All wetted parts are made of non-metal materials, anti-corrosion.
5. Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
Parameter
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm | |
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension | 2200mm(L)x1100mm(W) x2200mm(H) | 2300mm(L)x1100mm(W) x2200mm(H) | 2400mm(L)x1100mm(W) x2200mm(H) | ||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm | ||||
| Neck diameter | Φ18mm | ||||
| Filling range | 50ml--1000ml (From ZT-PACK) | ||||
| Filling System | Piston Type | ||||
| Air pressure | 0.6Mpa--0.8Mpa | ||||
| Power supply | 380V ;50HZ / 60HZ | ||||
Details:
Layout Drawing :
