Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 45sets per month |

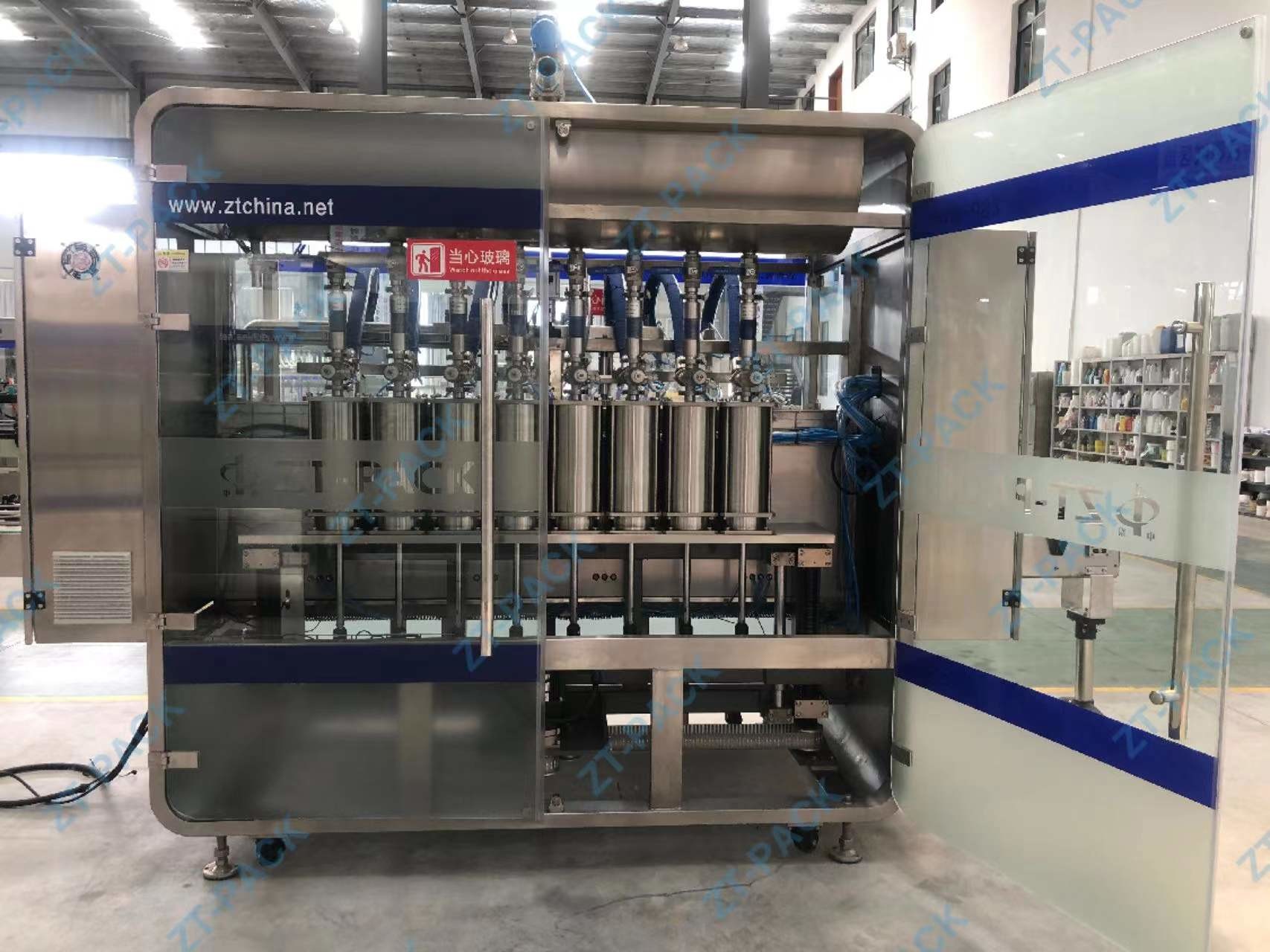

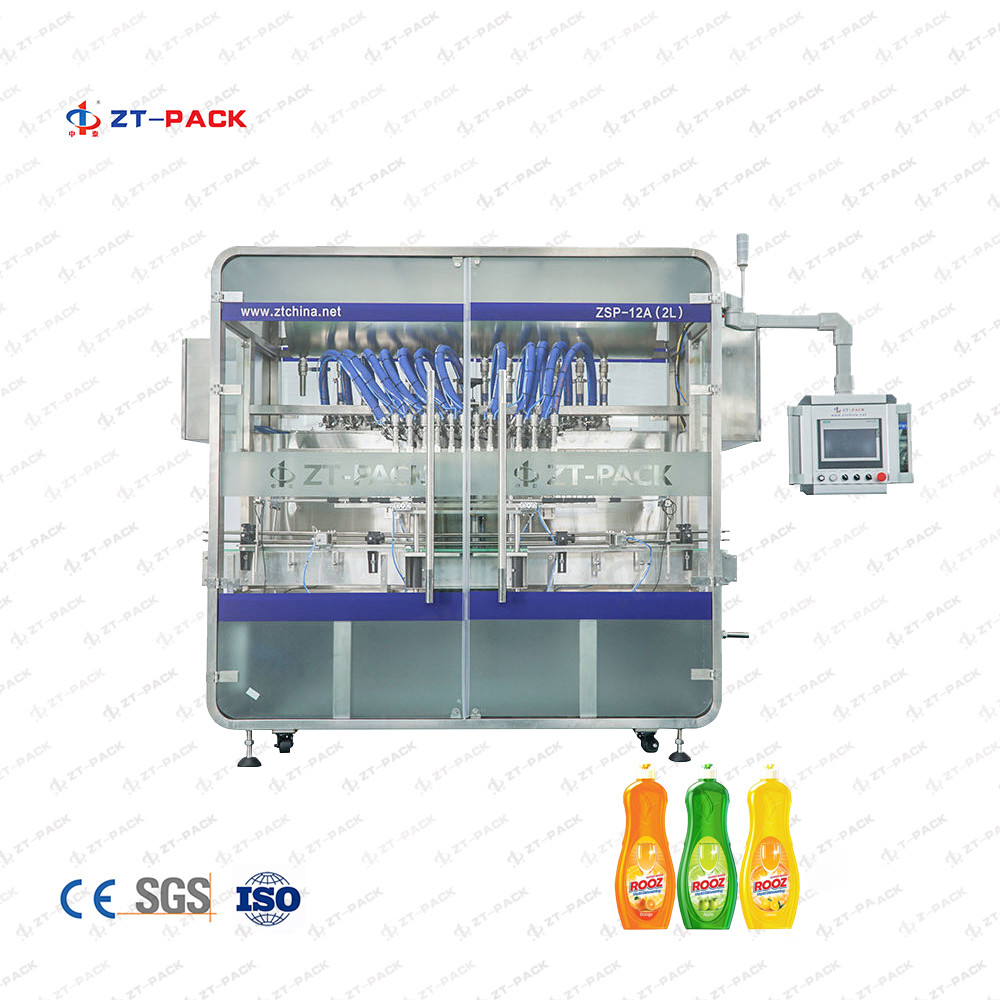

Cheap Price High Accuracy Householding Product Detergent Dishwasher 1000ml Plastic Bottle Liquid Filling Machine
Description
Cheap Price High Accuracy Householding Product Detergent Dishwasher 1000ml Plastic Bottle Liquid Filling Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials.
The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel / Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Filling Range : 50ml -1000ml
1L -5L
4L -20L
Features
1.Stainless steel and sanitary pipes are used, and the connection parts are all fast-connected.

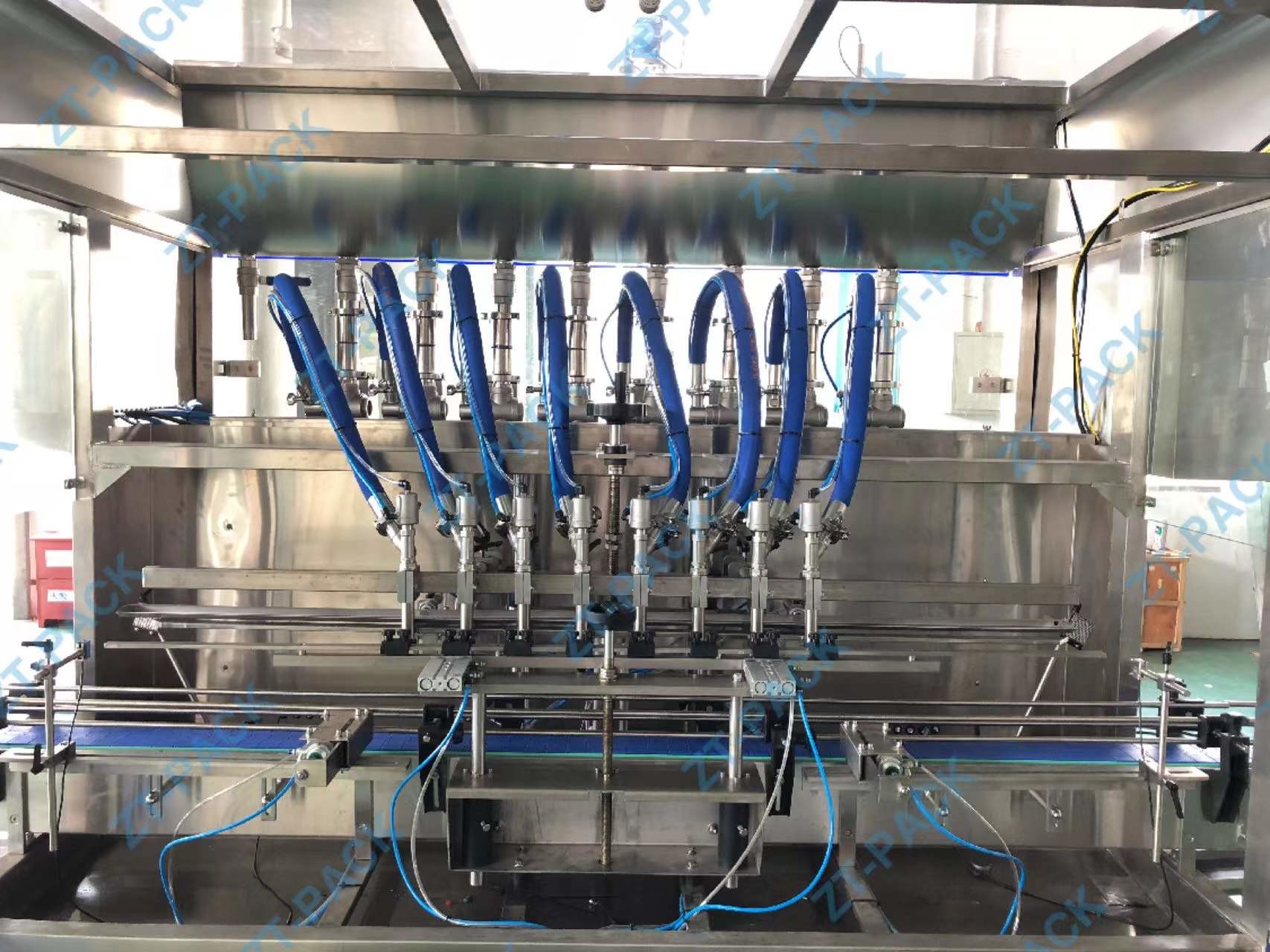

2.The servo motor control belt drives the submerged filling mode of the filling head operation.
3.It can also adopt the de-cylinder structure, which can completely empty the material in the material tank, effectively avoiding cross-contamination of materials, and replacing the sealing ring is more convenient and quick.
4.The latest PTFE technology piston seals improve wear resistance, longer service life and lower maintenance costs.
5.Single-row layout cylinders and fast change-over fixing method which is very easy for cylinder disassembling and the sealing parts cleaning inside.
Parameter:
1. Capacity:≤2000 bottles/hour
2. Applicable Bottle Type:1L Height 190-200mm,width 135-145mm,thickness 55mm.
3. Bottle’s mouth diameter:1L diameter 35-45mm,machine design according to customer bottle
4. filling range:100ml-1000ML
5. Precision: (100ml-5000ml)±0.5%
6. Air pressure : 0.6～0.8 MPA
7.Air consumption:120L/minute
8. Power Source:～380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 1850Kg
12.Production line height:850mm±50mm
13.Filling materials:Viscosity liquidr
14.Bottle feed direction:From left to right
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
Details:
