Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 45sets per month |

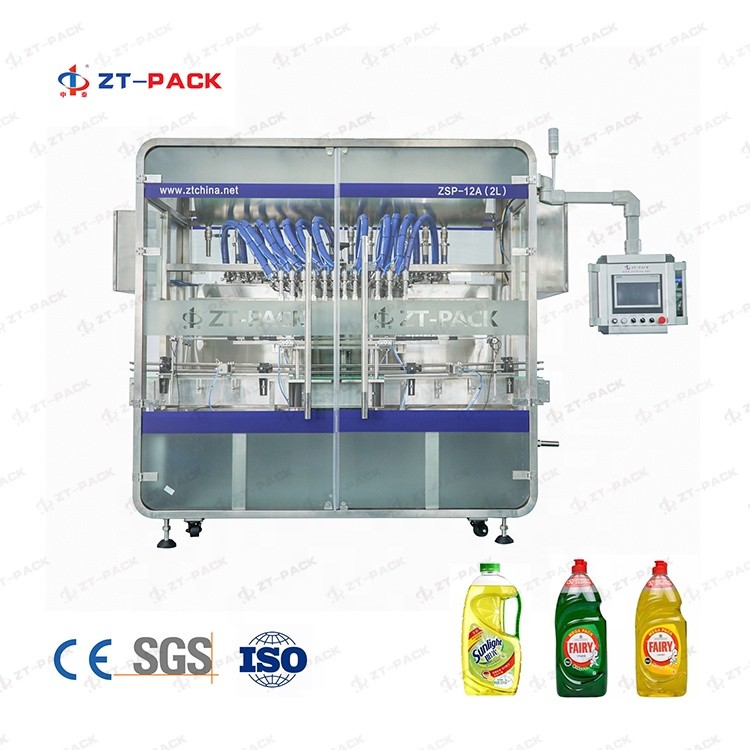

Dishwashing Liquid Wash Cleaner Detergent Plastic Bottle Filling Machine Piston Servo Type Motor Manufacturing Machine
Description
Dishwashing Liquid Wash Cleaner Detergent Plastic Bottle Filling Machine Piston Servo Type Motor Manufacturing Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials.

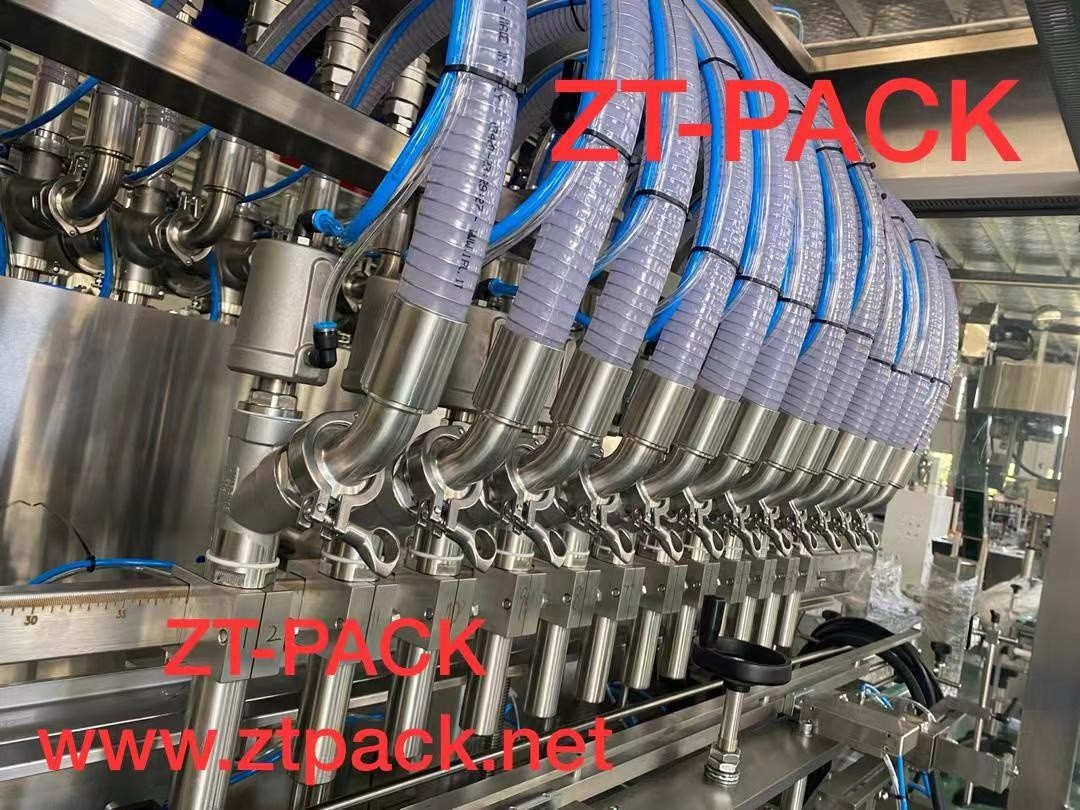

Automatic linear piston filler is designed for completely automatic, multiple position, inline dispensing of liquids and pastes in volume ranging from 50ml to 1000m per cycle. Available in 6, 8, 10 ,12 and 16 nozzle configurations to match specific production requirements, Dual lane option is available to increase production by 100% while preserving valuable line space.

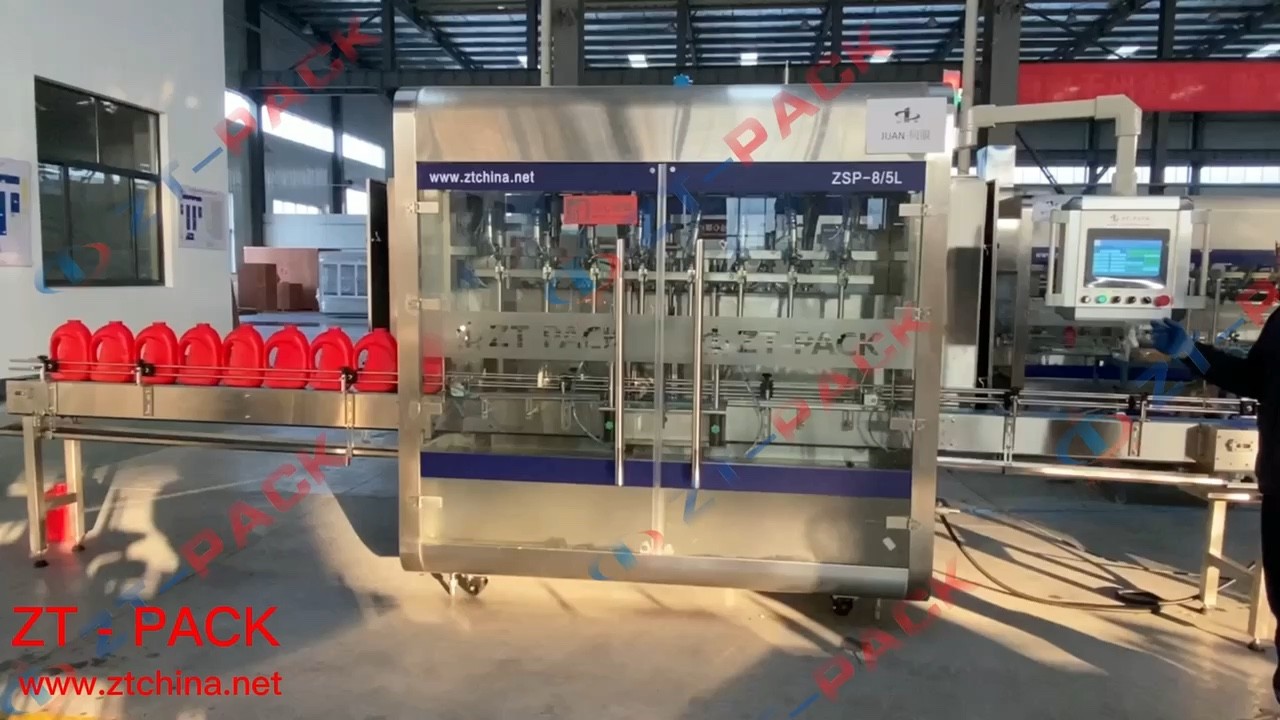

The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel / Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Parameter
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension |
2200mm(L)x1100mm(W) x2200mm(H) |
2300mm(L)x1100mm(W) x2200mm(H) |
2400mm(L)x1100mm(W) x2200mm(H) |
||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm | ||||
| Neck diameter | Φ18mm | ||||
| Filling range | 50ml--1000ml (From ZT-PACK) | ||||
| Filling System | Piston Type | ||||
| Air pressure | 0.6Mpa--0.8Mpa | ||||
| Power supply | 380V ;50HZ / 60HZ | ||||
Detail:
