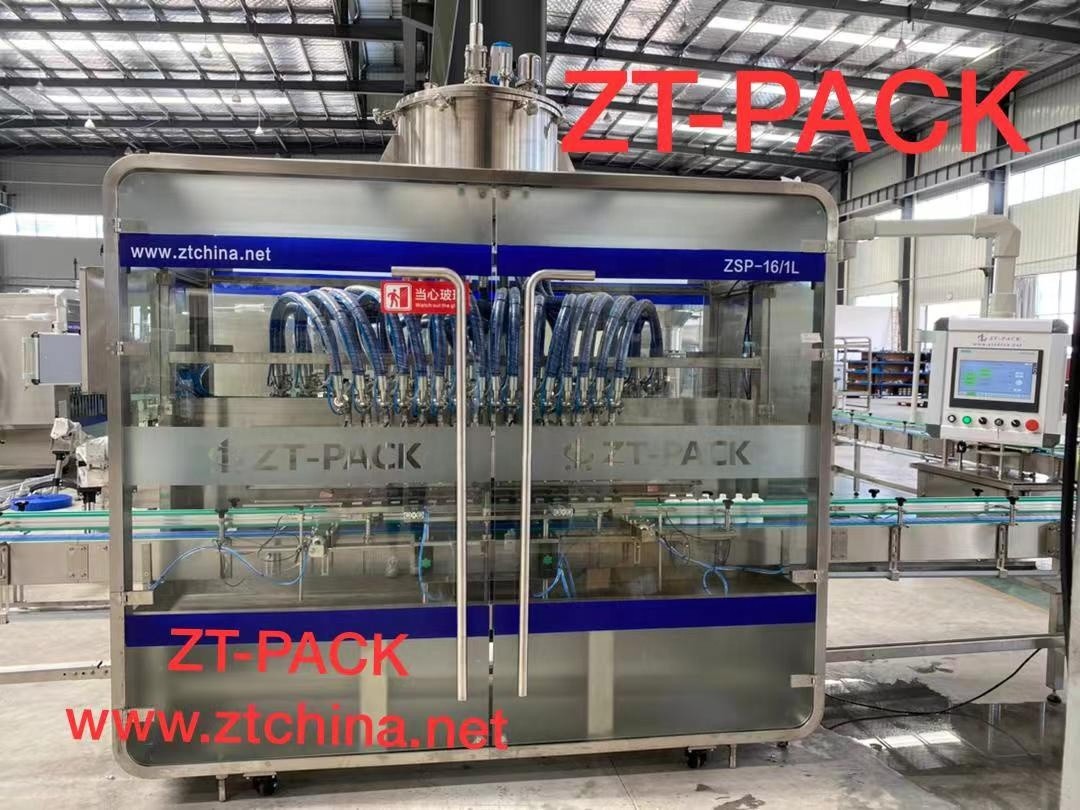

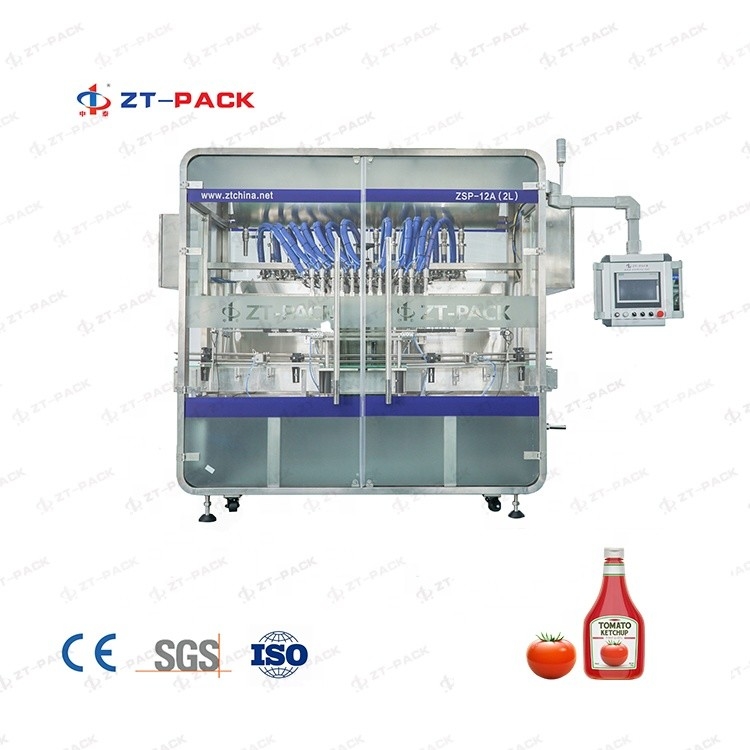

4000bph Ketchup Paste Jam Sauce Hot Filling plastic bottle drum Filling Machine

Automatic Ketchup Filling Machine For Honey / Paste / Sauce Etc Viscous Liquid

Description

The Piston filling machine is a high-tech product designed and developed by our company. It suits for different viscosity of water agent, semi-fluid, and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide and chemical industry .

Feature:

1. Stainless steel and sanitary pipes are used, and the connection parts are all fast-connected.
2.  The material level sensor is used to check the level position under the normal running of the machine, plus with a high and low-level check and alarm device. A filter is installed in the tank (very easy for disassemble). It can improve the precision of filling and the life of the filling valves.

3. We use the latest PTFE sealing parts which can improve the abrasion resistance of the sealing parts (24 months). It solves the problem that a piston filling machine can not be used for SC, EC, and high-viscosity.

4. he servo motor control belt drives the submerged filling mode of the filling head operation. With the set variable speed filling function, the filling head rises with the liquid level, and the liquid level is synchronized, which can reduce the easy foaming. The production of foam during filling, prevents bottle mouth pollution caused by material spillage, effectively increasing production capacity

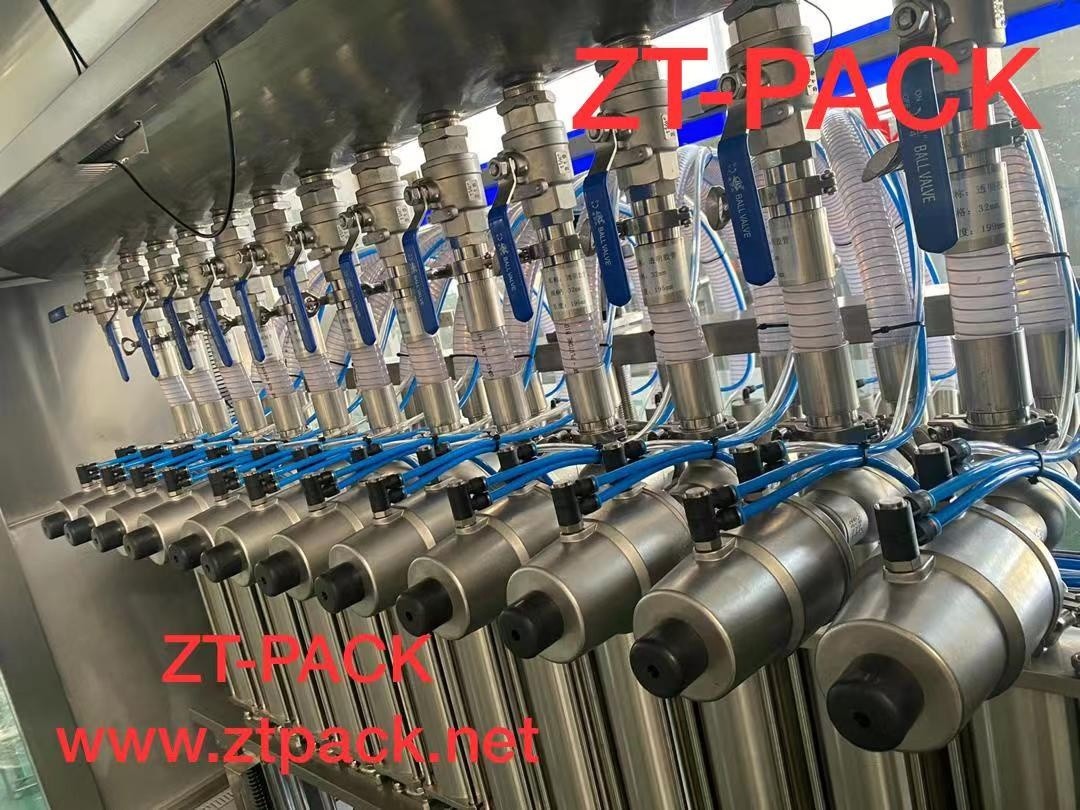

Anti Leakage filling valve
1) Used for viscous material

2) Fast speed filling , precision, and stability

3) With anti-foam function by diving system

4) Filling valve with aortic cylinder to prove anti-leakage function

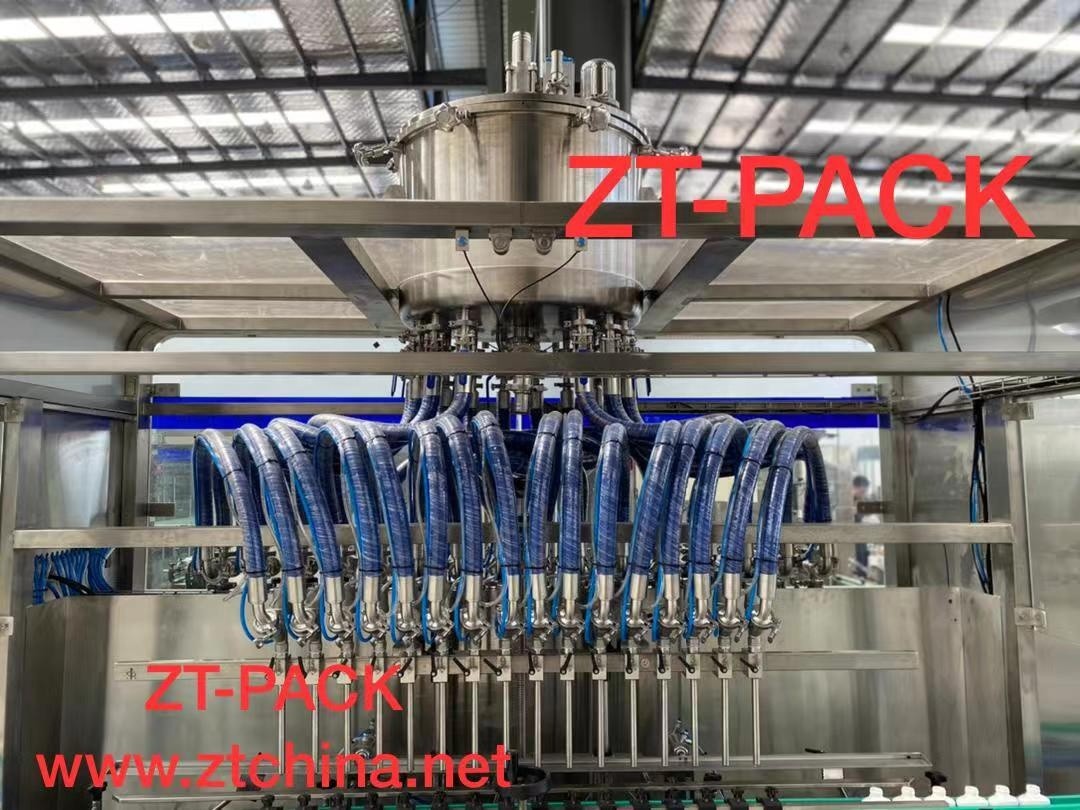

Volumetric filling piston
1) Fast speed filling, precision, and stability
2) By servo motor drive
3) Material: SUS316L
4) Different filling volume 1L / 2L / 3L / 5L
5) Easy different volume setting

Details:
