Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-G |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 45 sets per month |

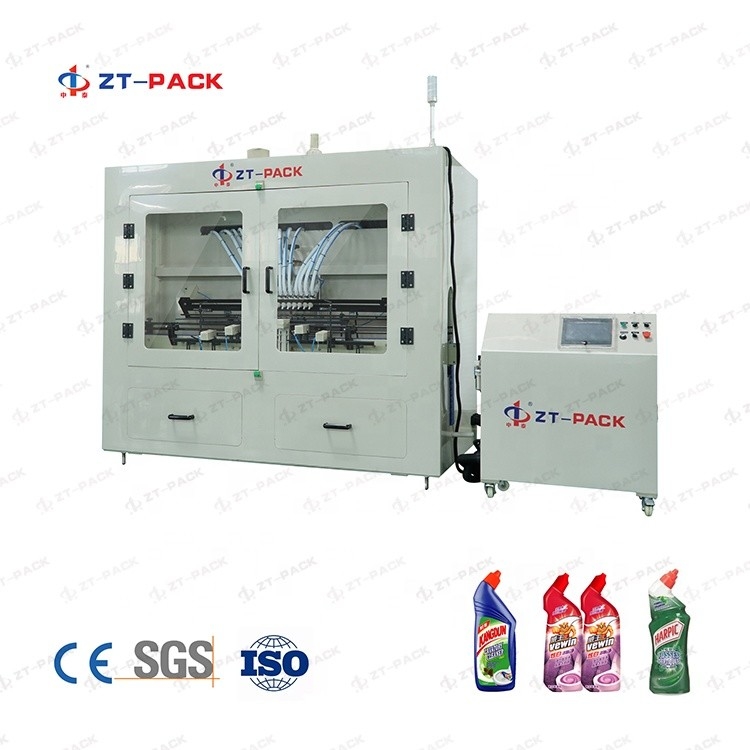

Automatic Antiseptics Anti Agro Chemical Liquid Equipment And Bottle Price Pesticide Filling Machine
1. The machine is complied with GMP requirements and is made of SUS316 stainless steel.
2. All pneumatic appliances are imported, a Mitsubishi brand PLC control system with an LCD touch screen interface.
3. Seals are made of domestic famous brand silicone rubber (abrasion resistance, high-temperature resistance, acid and alkali resistance, corrosion resistance), fluorine rubber (abrasion resistance, strong acid and alkali resistance, strong corrosion).
4. Liner filling machine refers to foreign advanced brands of similar machines to create a design, and enhance some additional functions. It makes the product more simple and convenient in operation, accuracy error, installation adjustment, equipment cleaning, maintenance, and so on.
|
Model
|
ZGP-6H
|
ZGP-8H | ZGP-10H | ZGP-12H | ZGP-16H |
| Dimension |
2000x710x2200mm (LxWxH)
|
2200x710x2200mm (LxWxH) |
2300x710x2200mm (LxWxH)
|
||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 1800B/H | 2200B/H | 2800B/H | 4000B/H |
| Power | 1KW | 1KW | 1KW | 1.5KW | 1.5KW |
| Suitable bottle | Diameter:Φ33mm--Φ100mm Height:80mm- -280mm | ||||
| Filling accurate |
≤100ml:+ -1 .5ml
100-500ml:+ -2ml
500-1000ml:+ -3ml
|
||||
| Neck diameter |
Φ18mm
|
||||
| Filling range | 50ml--1000ml | ||||
|
Air pressure
|
0.6Mpa
|
||||
|
Power supply
|
220V;50HZ
|
||||
Equipment features:
Suitable For Filling: Insecticide / Pesticide / Fertilizer / Chemicals / Agrochemical products / SC ...Etc kinds Products
