Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 45 sets per month |

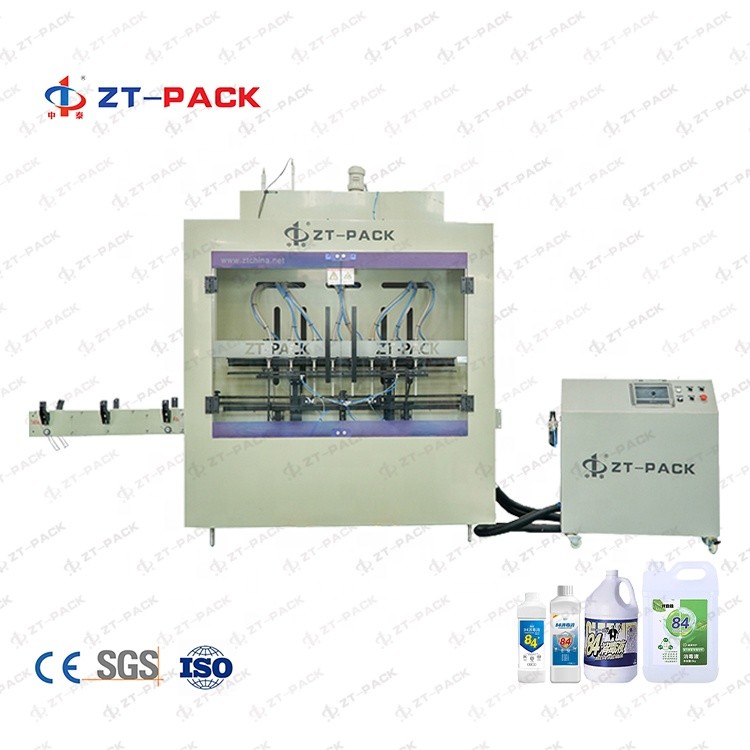

Automatic Sodium Hypo chlorite Liquid Filler Plastic Bottle For NACIO Bleach Acid Filling Machines
Description
Empty containers are conveyed to the corrosive liquid filling machinery through an plastic conveyor, The in- gate cylinder opens, out-gate cylinder closes. the inlet sensor detects quantity of bottles. After set quantity bottles are positioned under filling nozzle, Bottle neck grabbers hold bottle in position.the fill cycle is initiated, After completing the filling operation,the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations. To minimize foaming, Diving head is available, nozzles will go upwards slowly from bottom level of bottles towards neck during filling. No container no filling system arrangement is standard feature of the machine. The main drive of the machine and conveyor drive consist of AC motor with synchronized variable frequency drive.
· Anti-corrosive so can be used with strong acids and bases
· Easily adjustable between models
· Imported components from trusted brands for reliability and long service life
· Easy to clean and low noise
· Automatic bottle feeding and counting
· Filling heads can be finely adjusted for accurate filling
· Made of nonmetallic material to prevent corrosion
· PLC and touch screen control
|
Model
|
ZGP-6G
|
ZGP-8G
|
ZGP-10G
|
ZGP-12G
|
ZGP-16G
|
|
Dimension
|
2000x710x2200mm (LxWxH)
|
2200x710x2200mm (LxWxH)
|
2300x710x2200mm (LxWxH)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity (500mL)
|
1500 B/H
|
2000 B/H
|
2500 B/H
|
3000 B/H
|
4000 B/H
|
|
Power
|
1KW
|
1KW
|
1KW
|
1.5KW
|
1.5KW
|
|
Suitable bottle
|
Diameter:Φ40mm————Φ100mm Height: 80mm———— 280mm
|
||||
|
Filling accurate
|
≤100ml: + -1.5ml
100-500ml: + -2ml
500-1000ml: + -3ml
|
||||
|
Neck diameter
|
≤Φ10mm ( can be designed accordingly)
|
||||
|
Filling range
|
100mI———— 5000ml
|
||||
|
Air pressure
|
0.6 Mpa
|
||||
|
Power supply
|
220V;50HZ/60HZ
|
||||
Suitable For Filling: Bleach / / Toilet Cleaner / Flash / Acid / Chlorine / Sulfuric acid / 84 Disinfectant...Etc kinds Products
