Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-8A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 45 sets per month |

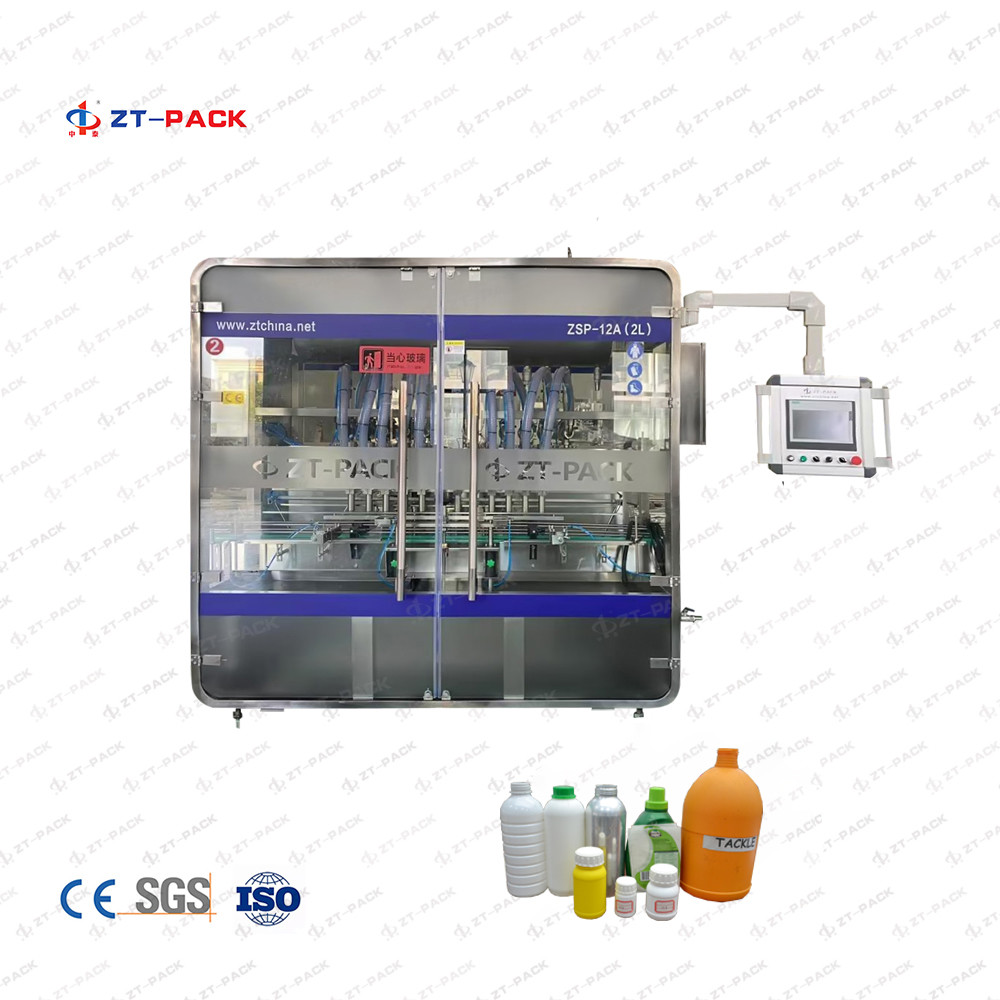

Pesticide Agrochemical Liquid Filling Capping Labeling Machine
Description
The machine is specially used for filling strong corrosive liquids and liquids such as cosmetics that can't contact the metal.The parts of the machine that contact the liquids are all made of nonmetal anticorrosive materials. It is designed with a submersible filling function, featured by accurate measurement and no bubble and drooping during the filing. The filling nozzle can lift and dive . Add bottle fix device on the filling nozzle part, ensure when filling material, the bottle is fixed in the right position, the filling nozzle use PP material customize, anti-corrosive and anti-drop. Length can customize according to different bottles.
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
Suitable For Filling: Insecticide / Pesticide / Fertilizer / Chemicals / Agrochemical products / SC ...Etc kinds Products
