Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZGP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 45 sets per month |

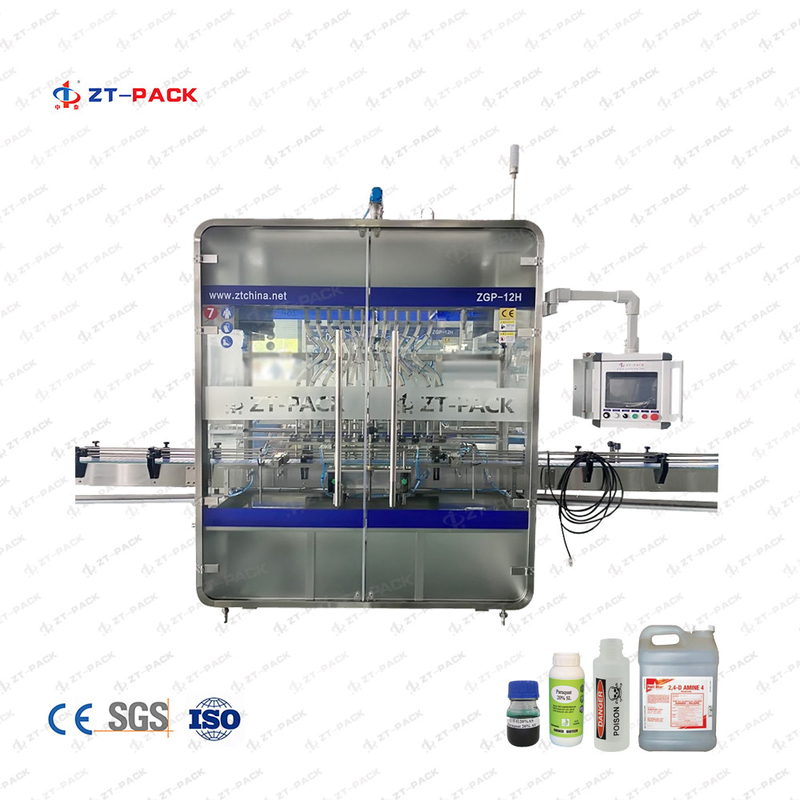

14 Heads Automatic Gravity 100-10000 Ml Pesticide Chemical Liquid Bottle Fertilizer Filling Machine
Description
Linear piston liquid filling machinery is manufactured with a 304 stainless steel frame, It comes standard with PLC control and touch screen HMI ensuring reliable, repeatable control with minimal operator intervention, Precision bored, heavy- walled metering cylinders dispense product at accuracy up to +/- 0.2%, High-precision, servo motor driven screw movement faster and more precise than pneumatic system, food grade stainless steel and plastics for sanitary operations or use,anodized aluminum components, plus many more features available with motorized conveyor and indexing package for integrated container handling and positioning, No container/No fill feature detects missing or mispositioned containers to prevent waste and product spillage. Unique variable, separate speed control and actuator of a dual-stage fill provides precise “no spill” control for top-off applications or filling difficult products.
|
Model
|
ZGP-6H
|
ZGP-8H
|
ZGP-10H
|
ZGP-12H
|
ZGP-16H
|
|
Dimension
|
2000x710x2200mm (LxWxH)
|
2200x710x2200mm (LxWxH)
|
2300x710x2200mm (LxWxH)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity(1L)
|
1500B/H
|
1800B/H
|
2200B/H
|
2800B/H
|
4000B/H
|
|
Power
|
1KW
|
1KW
|
1KW
|
1.5KW
|
1.5KW
|
|
Suitable bottle
|
Diameter:Φ33mm--Φ100mm Height:80mm- -280mm
|
||||
|
Filling accurate
|
≤100ml:+ -1 .5ml
100-500ml:+ -2ml
500-1000ml:+ -3ml
|
||||
|
Neck diameter
|
Φ18mm
|
||||
|
Filling range
|
50ml--1000ml
|
||||
|
Air pressure
|
0.6Mpa
|
||||
|
Power supply
|
220V;50HZ
|
||||
Feature:
This non-metal filling machine specially designed for strong acid and alkali product, such as: hydrochloric acid products bleach.
1. PLC controlled, friendly touch screen control.
2. Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
3. Vacuum suck back for dripping can be special designed for foamy product.
4. All wetted parts are made of non-metal materials, anti-corrosion.
5. Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
Suitable For Filling: Insecticide / Pesticide / Fertilizer / Chemicals / Agrochemical products / SC ...Etc kinds Products
Details:
