Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 45 sets per month |

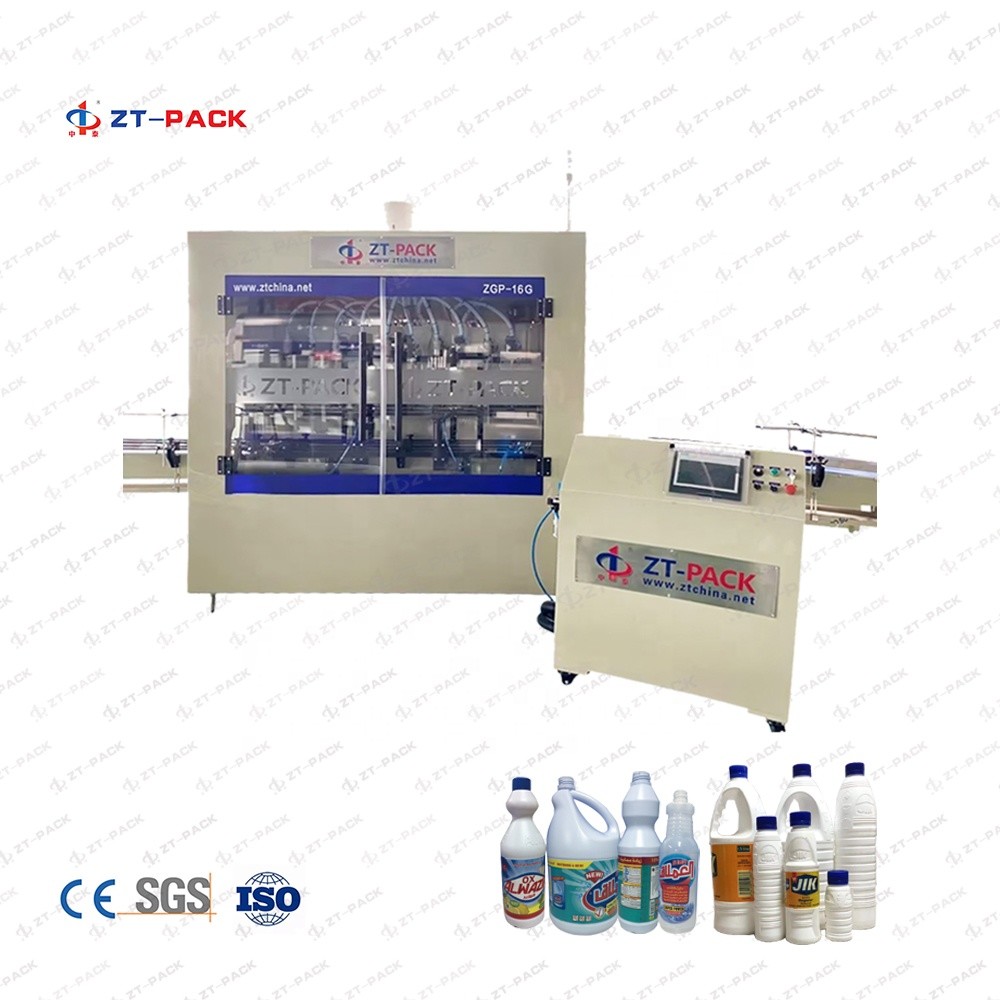

High quality automatic gravity anti corrosive pp cleaning liquid filling machine
Description
ZGP-G PP Plastic 4000BPH Fully Automatic Toilet Cleaner Filling Machine is engineered to withstand harsh liquid and environments. Each filling machine is built from corrosive resistant plastic material custom to tolerate the corrosive environments and suited to the products they intended for including not only chemical plants producing strong acids, pesticide and bleach but also food plants using brine or sugar solutions in their products. In both cases, even the factory air alone contributes to the accelerated degradation of the machinery.
Empty containers are conveyed to the corrosive liquid filling machinery through an plastic conveyor, The in- gate cylinder opens, out-gate cylinder closes. the inlet sensor detects quantity of bottles. After set quantity bottles are positioned under filling nozzle, Bottle neck grabbers hold bottle in position the fill cycle is initiated, After completing the filling operation,the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations. To minimize foaming, Diving head is available, nozzles will go upwards slowly from bottom level of bottles towards neck during filling. No container no filling system arrangement is a standard feature of the machine. The main drive of the machine and conveyor drive consist of AC motor with synchronized variable frequency drive.
|
Model
|
ZGP-6G
|
ZGP-8G
|
ZGP-10G
|
ZGP-12G
|
ZGP-16G
|
|
Dimension
|
2000x710x2200mm (LxWxH)
|
2200x710x2200mm (LxWxH)
|
2300x710x2200mm (LxWxH)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity (500mL)
|
1500 B/H
|
2000 B/H
|
2500 B/H
|
3000 B/H
|
4000 B/H
|
|
Power
|
1KW
|
1KW
|
1KW
|
1.5KW
|
1.5KW
|
|
Suitable bottle
|
Diameter:Φ40mm————Φ100mm Height: 80mm———— 280mm
|
||||
|
Filling accurate
|
≤100ml: + -1.5ml
100-500ml: + -2ml
500-1000ml: + -3ml
|
||||
|
Neck diameter
|
≤Φ10mm ( can be designed accordingly)
|
||||
|
Filling range
|
100mI———— 5000ml
|
||||
|
Air pressure
|
0.6 Mpa
|
||||
|
Power supply
|
220V;50HZ/60HZ
|
||||
Feature:
This non-metal filling machine specially designed for strong acid and alkali product, such as: hydrochloric acid products bleach.

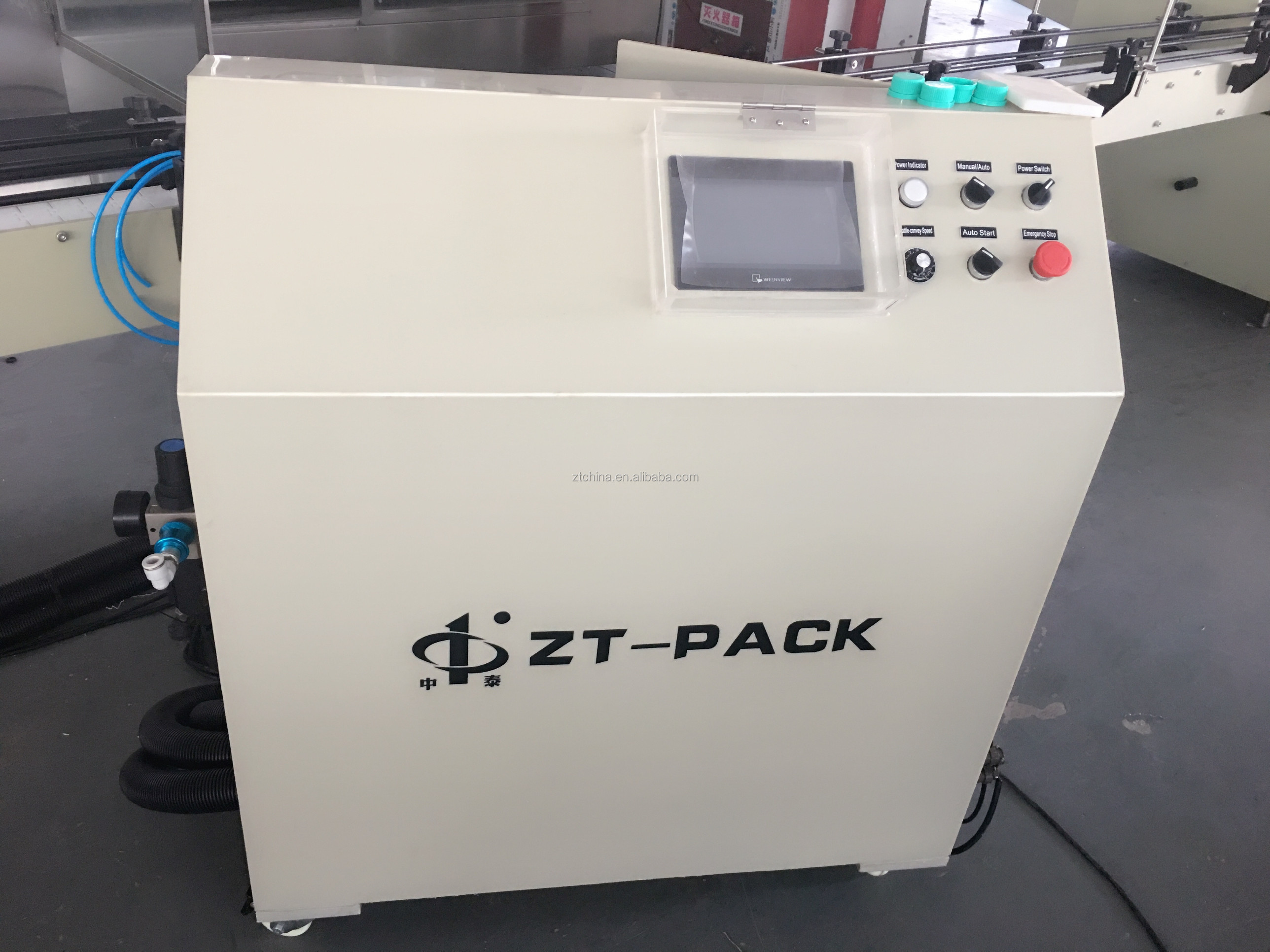

1. PLC controlled, friendly touch screen control.
2. Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
3. Vacuum suck back for dripping can be special designed for foamy product.
4. All wetted parts are made of non-metal materials, anti-corrosion.
5. Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
Suitable For Filling: Bleach / Clorox / Toilet Cleaner / Flash / Acid / Chlorine / Sulfuric acid / 84 Disinfectant...Etc kinds Products
