Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30sets per month |

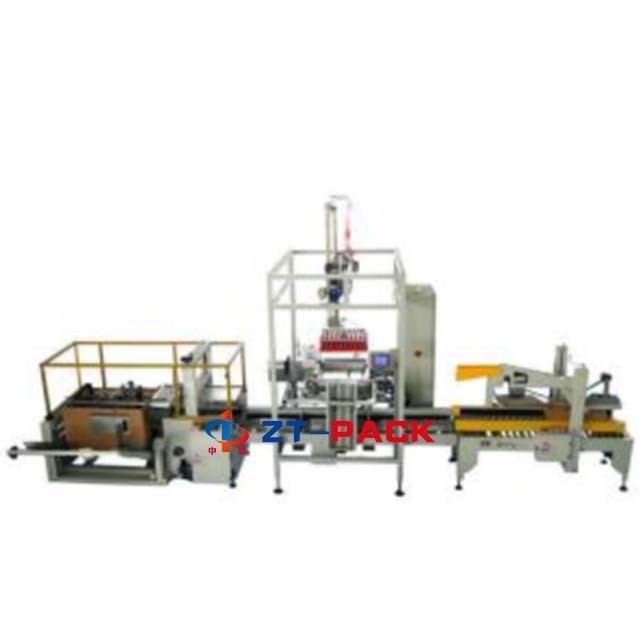

Automatic Carton Packing Machines For Finished Product Carton Box
Major characteristics:
The carton packaging line opens, packages and seals cartons full of regular or flat glass and plastic bottles. This carton packaging machine is used to package food, beverages, medicine, cosmetics, fertilizers, and chemicals.
1. Compact combined opening, packing and sealing machine.
2. Double servo drive and cross move structure does automatic bottle selection and packing.
3. Inflatable bottle grab structure adjustable for different bottles.
4. Easily adjustable for height and other settings.
5. Efficient opening and carton conveying structures.
6. Effective and reliable sealing.
7. Optional DB-02 automatic clipper is available.
Parameters:
| Packing Speed | 8 carton/min |
| Carton specification | L 200-550mm,W 150-400mm, H 100-400mm |
| Labeling Precision | ±1mm |
| Applicable bottle | MinΦ40mm |
| Air pressure | 0.5-0.7 Mpa |
|
Power source
|
~ 220V, 50HZ |
| Power | 5 KW |
|
External dimensions
|
6000 x 1500 x 2500 (L x W x H)mm |
|
Weight
|
1000KG |
