Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE/ SGS/ ISO |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wooden packages |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets/ month |
Machine Name :

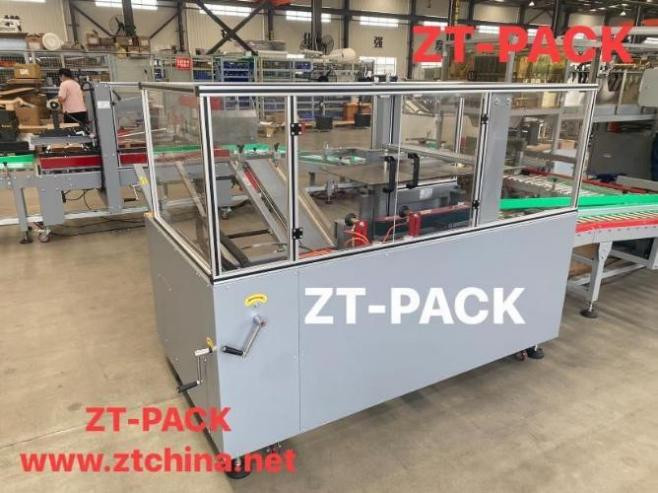

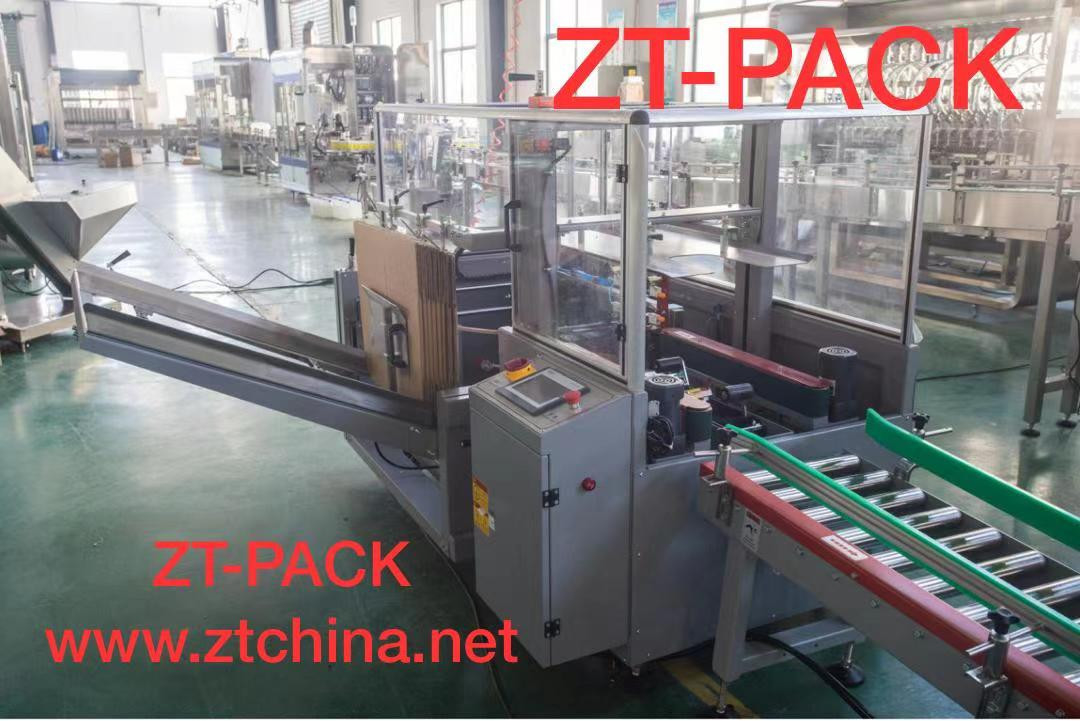

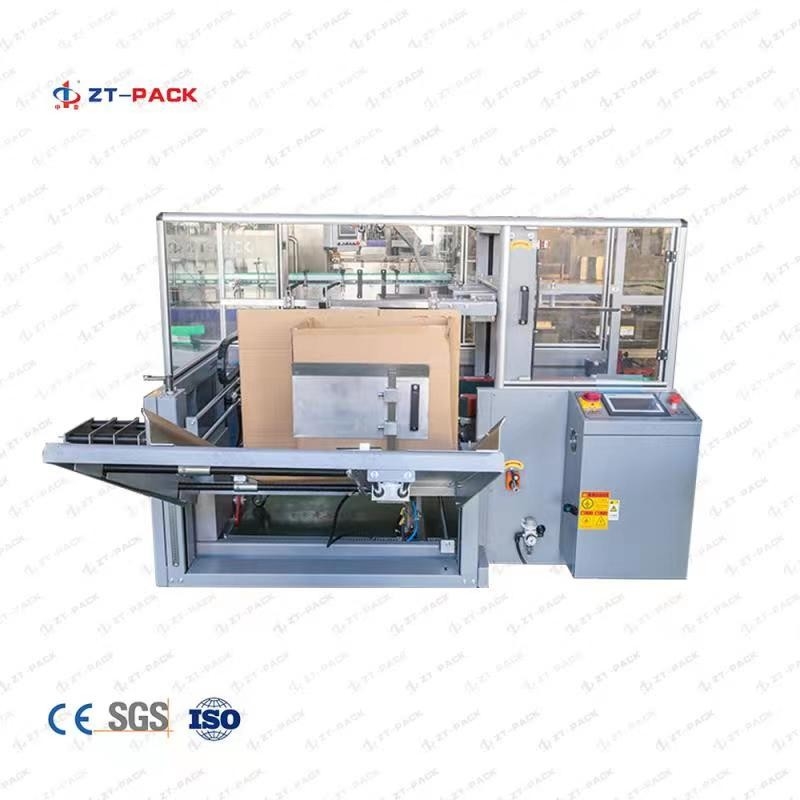

Automatic Case Erector
ZT- Carton Erector The main features are automatic binning, automatic vertical box molding, automatic folding cover, automatic sealing function.
main parameter:
1, voltage:380V/50HZ;
2, Carton erector speed:5-10 cases per minute;
3, Max carton specification:L410*W275*H230(mm);
4, Sealing tape Size:weight 48~60mm;
5, Gas source:4.6kg~6.5kg,intake pipeφ10;
6, Storage carton tank can put at least 50pcs without forming the carton once,can be added any time .
7, The electric system: "Siemens" PLC controller, the text mode of operation, "Schneider" contactor, FESTO and AIRTAC pneumatic components and Chenbang notor
8, No tape and no carton alarm function;
9, Carton erector type:Vertical shape, exit height 600mm,opening towards the top after carton forming out
10, Machine oversize:L2000*W1995*H1460mm;
11, cloour:White color card;
12, Carton erector is right into left out.
