Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30sets per month |

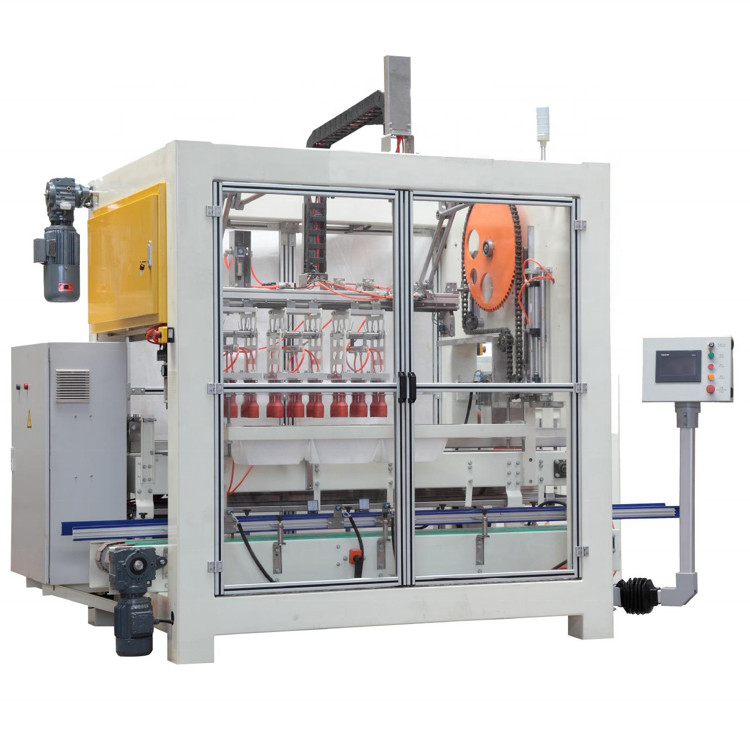

Automatic Case Packer Carton Box Packer Packaging Machine
Major characteristics:
This machine is an intelligent automatic carton packing machine, that adopt the high-speed orienting device to pack a different kind of bottles including oblate, round, irregular plastic bottle, and the different size of a glass bottle, square cans and paper cans, etc. Also, it is applicable for packing with cardboard sheets. The bottle grabber (designed according to different bottle )take the bottles to the forme cartons, then the gibber release. The loaded carton is sent to the carton sealing machine. This machine adopts PLC touch screen control. With the safety device of alarming and stopping for bottles lacking. Greatly reducing the labor and labor force, is the indispensable machine of automation producing line, according to different packaging requirement, can orient the products automatically. Wide application, suitable for many kinds of products especially for boxes, bags, and barrel series.
Parameters:
| Oversize | 4500x800x2500mm |
| Carton Size | L200-500xW150-400xH100-450mm |
| Speed | 8-20 carton /min (depends on the size) |
| Packing Method | Pick & place (suck & grab)(From ZT-PACK) |
| Total Installed Capacity | 35KW |
| Main Power | AC3-380V 50HZ+G+E |
| Optimal Working Temperature | -10~40C |
| Auxiliary Power Supply | 24VDC |
| Pressure Of Compressed Air | 0.4-0.6MPA |
| Consumption Of Compressed Air | 1500L/min |
About us:
Zhongtai Packing Machinery Company develops high-quality packaging and bottling production lines. From filling to capping to labeling to storing in cartons for shipping, ZT-Pack supplies you with everything you need to get your product into the hands of customers. Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods; beer, wine, soda, and other beverages; cosmetic and beauty care products such as lotions, creams, and shampoos; pesticides and other agrochemicals; and oils and gases. We help customers from over 30 countries around the world to package their products.
At ZT-Pack, we value collaboration and innovation, working together and with our customers to develop better packaging solutions that keep products fresh and hold up in transit. With quality management and production processes, our packaging machines meet industry standards and satisfy those who use them. Whatever your product, we can package it. Contact ZT-Pack today.
