Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-8A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 45sets per month |
Description:

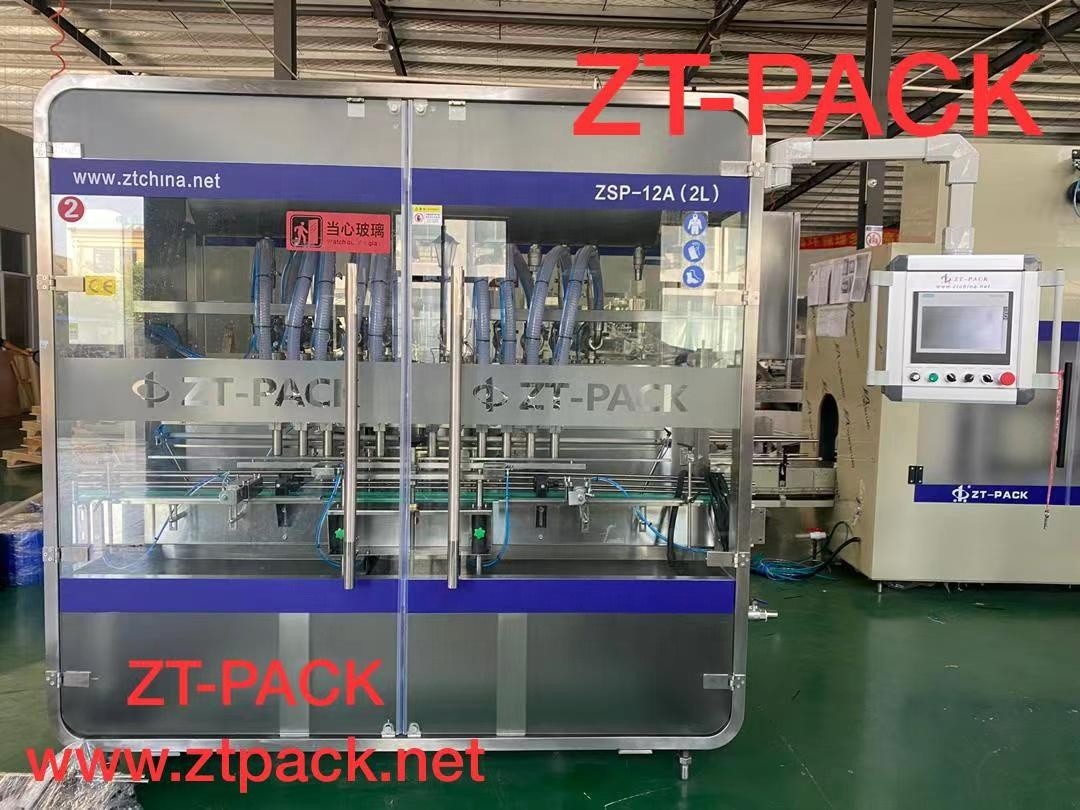

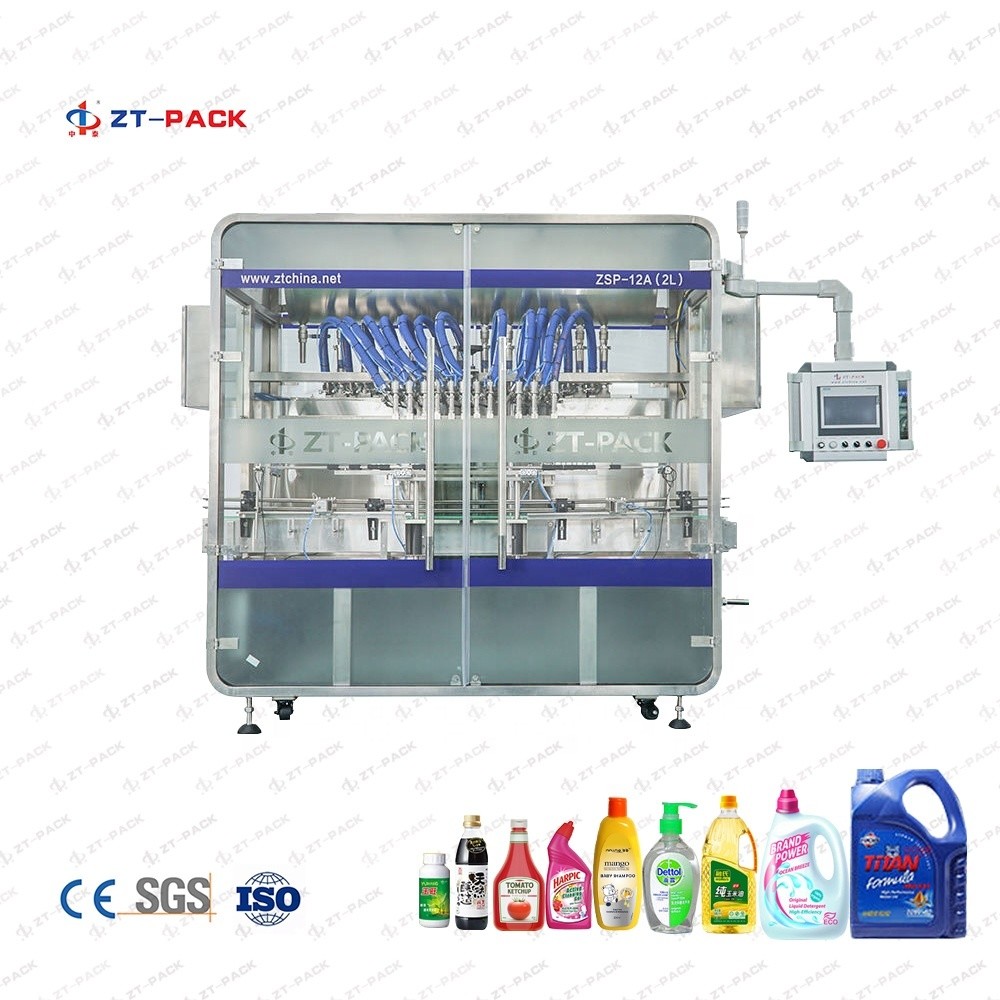

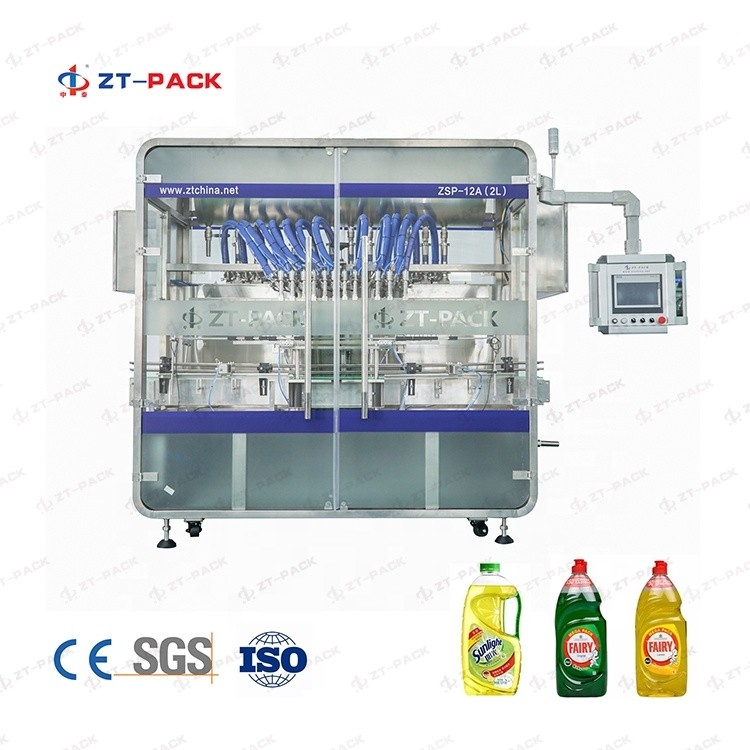

ZSP-A Intellectual High Viscosity Filling Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials. . The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
This series of model suitable for liquid and semi-automatic liquid without gas. Automatic counting is completed into the bottle, quantitative filling, and bottle conveying a series of operations.
1,The machine adopts PLC and touch screen automation control, with accurate measurement, advanced structure, smooth operation, low noise, large adjustment range, the filling speed, etc.
2,The machine adopts advanced macaronis technology to replace any of the filling specifications only need to modify the parameters in the touch screen , can also be a significant overall adjustment of filling volume of each filling head , but also for every filling volume of a single micro- adjustment carried head .
3,the application of touch-screen technology, the operation of the machine is more reliable, convenient and human-machine interface more friendly. Photoelectric sensors, proximity switches, etc. are used in advanced sensing elements, so no bottle no filling, plugging bottles will automatically stop and alarm.
4,filling way with dive style, using different materials seal rings, to meet the different characteristics of the filling material.
the machine produced according to GMP standards , all piping connections using quick way to disassemble and clean convenient location and contact with the material exposed parts are made of high quality stainless steel , machine safety, environmental protection , health, beauty, able to adapt a variety of work in different environments.
Main Feature:
1. Stainless steel and sanitary pipes are used, and the connection parts are all fast-connected.
2. PLC control, touch bottle operation, simple and convenient operation.
3. The use of internationally famous brand electrical components, performance, and stability.
4. User can adjust the filling range, the materials is not enough in the hopper, the computer will give the feeding pump signal to
add material by the level sensor. When the material is full, the pump will stop automatically.
5. Machine body is made of 304 stainless steel, easy to clean, the machine is in full compliance with GMP requirements.

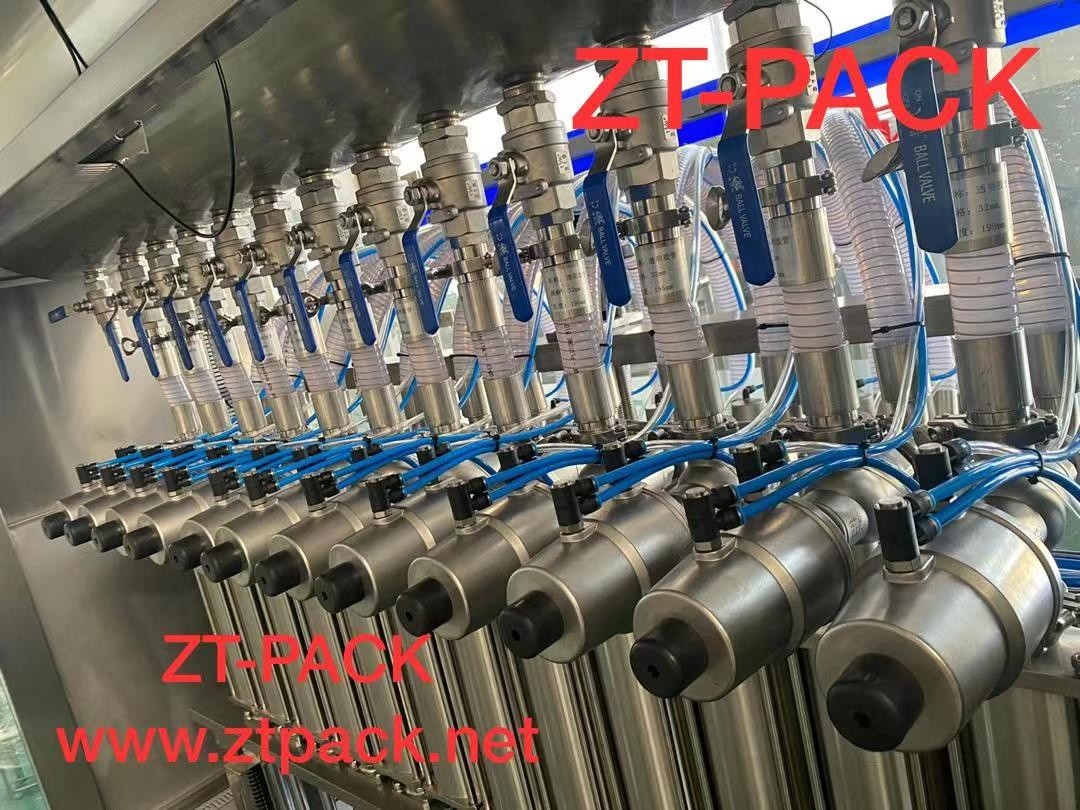

6. Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.
| 1. Capacity | ≤3500(b/h) |
| 2. filling volume | 50-5000ml |
| 3. measurement precision | ±0.5% |
| 4. applicable bottle diameter | ≤160mm(210×130) |
| 5. applicable bottle height | ≤350mm |
| 6. air pressure | 0.6-0.8Mpa |
| 7. total power | 3.5Kw |
| 8. voltage | AC380V,50/60Hz |
| 9. net weight | 1200kg |
| 10.dimension | 2400(L)×1300(W)×2150(H)mm |
About us:
Zhongtai Packing Machinery Company develops high-quality packaging and botting pro-duction lines. From filling to capping to labeling to storing in cartons for shipping, ZT-Pack supplies you with everything you need to get your product into the hands of customers. Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods; cosmetic and beauty care products such as lotions, creams, and shampoos; pesticides and other agrochemicals; and oils and gases. We help customers from over 30 countries around the world to package their products.
FAQ:
Q: Are you a manufacturer or trade company?
A: We are a manufacturer in the package machine field since 2002, located at Jintan, Changzhou, near Shanghai, We will pick you up to visit our factory.
Q: Do you have any certification?
A: SGS, ISO, CE
Q: What about the delivery time?
A: Usually 30 Working days
Q: What about the machine's capacity?
A: according to different machine types, 800-2000 bottles in 1000ml per hour.
Q: The after-sale service
A: 12 months warranty to change the spare parts which are damaged by non-human factors for free. solve basic questions by telephone, email, Whatsapp, WeChat and video call. The engineer will go to the buyer's factory to install, test machines, and train the buyer's staff on how to operate and maintain machines. Operating manuals will be sent with a machine or by email. We also have an overseas service center
Q: If I want to buy a machine, what information do I need to tell you?
a. What kind of product do you want to pack?
b. bottle volume: 250ml, 330ml, 500ml, 750ml, 1L, 2L, 5L, 20L etc.?
c. Producing capacity requirement? How many bottles do you want to pack per hour?
d. Pictures of your products' bottles and caps
e. Voltage and altitude.
