Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 45sets per month |

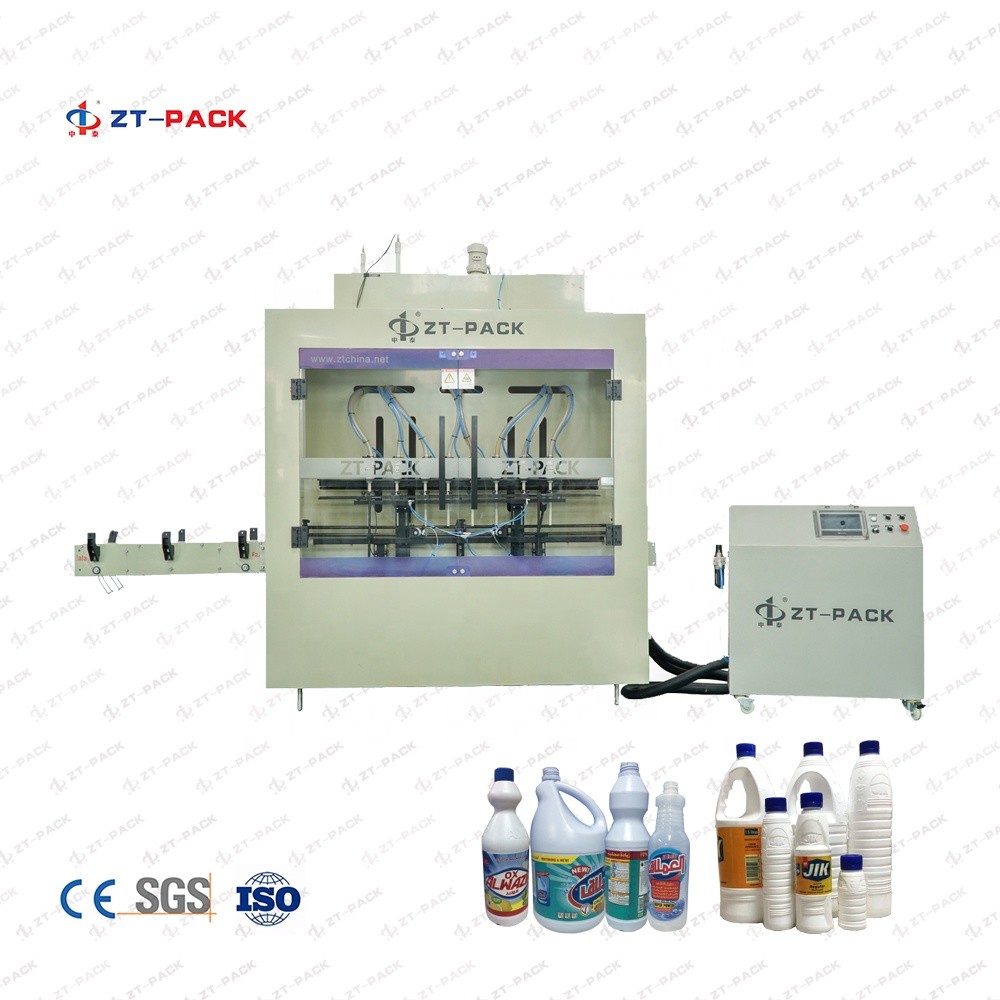

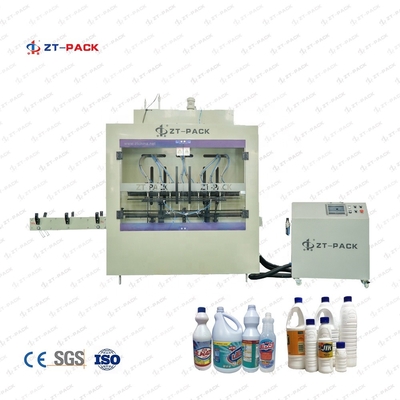

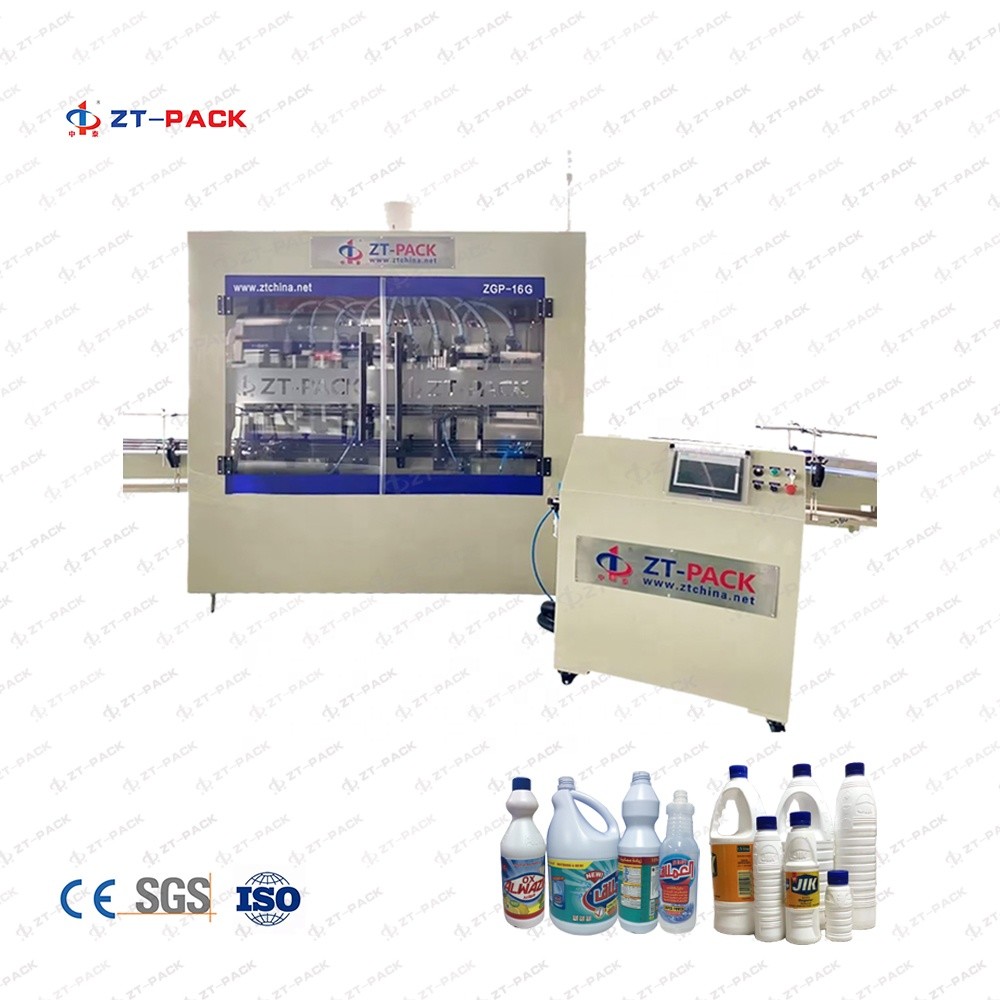

This machine is used for the automatic low viscosity liquid filling in 500ML-5L, with the bottle diameter 40-150mm, bottle height 80-370mm. Changing into different models without tools. Easy cleaning, water can be directly used for machine cleaning. The machine is a full corrosion-protecting high-tech filler integrating in the PLC program control, photoelectricity transuding and pneumatic. The machine is specially used in the liquid filling of strongly corrosion liquid and cosmetics which can't touch the metal. The equipment's all parts touching liquid are manufactured with the non-metallic corrosion protection material, and designed the descending filling function. Measurement accurate, there is not bubble and drool as filling.
Main Features
1: Anti-corrosive, used for the filling of Strong Acid and Bases
2: Changing into different models without tools.
3: FESTO, SICK, SCHNEIDER allocations for the stable working of the machine.
4: Easy cleaning, water can be directly used for machine cleaning.
5. Capacity: ≤2000 Bottles/hour (Filling 1L)
6. Applicable Bottle Size: Diameter: 40-100mm, Height: 80-230mm
Parameter
Containers and Specifications (50mL-1000mL)
|
Model
|
ZGP-6G
|
ZGP-8G
|
ZGP-10G
|
ZGP-12G
|
ZGP-16G
|
|
Dimension
|
2000x710x2200mm (LxWxH)
|
2200x710x2200mm (LxWxH)
|
2300x710x2200mm (LxWxH)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity (500mL)
|
1500 B/H
|
2000 B/H
|
2500 B/H
|
3000 B/H
|
4000 B/H
|
|
Power
|
1KW
|
1KW
|
1KW
|
1.5KW
|
1.5KW
|
|
Suitable bottle
|
Diameter:Φ40mm————Φ100mm Height: 80mm———— 280mm
|
||||
|
Filling accurate
|
≤100ml: + -1.5ml
100-500ml: + -2ml
500-1000ml: + -3ml
|
||||
|
Neck diameter
|
≤Φ10mm ( can be designed accordingly)
|
||||
|
Filling range
|
100mI———— 5000ml
|
||||
|
Air pressure
|
0.6 Mpa
|
||||
|
Power supply
|
220V;50HZ/60HZ
|
||||
Three way valve
1. Connecting among tank, rotaty valve,position tank all with fast remove clip.
2. The valve is special designed for oil without leakage, ensure high accuracy.
3. 0.2% accuracy
4. Each filling nozzles can be controlled
5. Servo motor control all nozzles
