Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 45sets per month |

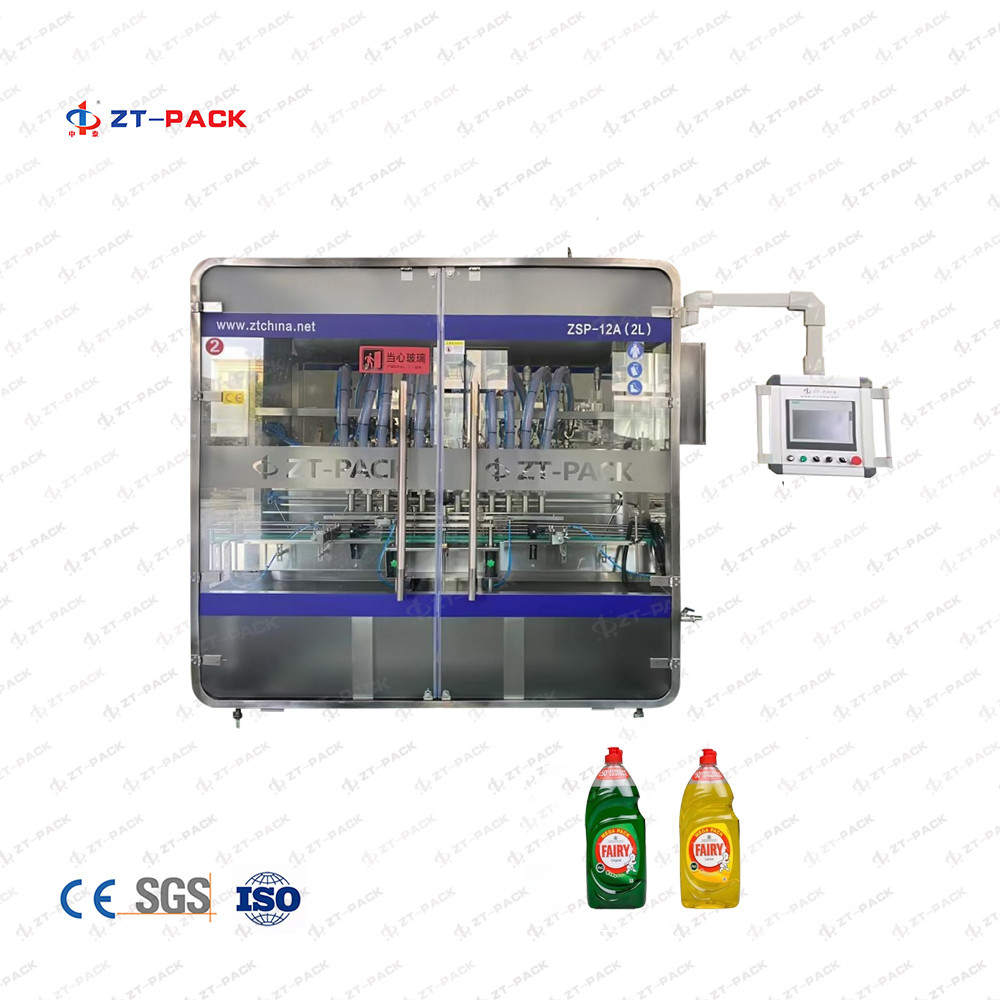

With high accuracy, fast speed, wider filling range can be shared for many different sizes of viscous liquids packing It is produced with the GMP standards, safety, environmental hygienist, beautiful and adapt to different kinds of work place. This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection, and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.
Main configuration:
Intelligent bottle unscrambler, intelligent filling and capping integrated machine, online check weighing and rejecting device, aluminum foil sealing machine, inkjet printer, two-dimensional code traceability system, high-speed unpacking machine, partition machine, intelligent packing machine, online inspection Heavy rejection machine, intelligent stacker, robot palletizer.
Key Features :
1. This line is suitable for the packaging of pesticides, lubricating oils, food edible oils, sauces, condiments, wine, paints, daily chemical detergents, conditioners, shower gels, disinfectants, detergents, and other products.
2. The whole line can be operated by 2-3 people, which reduces labor intensity and labor cost.
3. The filling speed of the whole line is 1000-6000 bottles/hour, which can be customized according to requirements.
4. The average filling accuracy is ±0.2%, the accuracy is accurate, and unnecessary waste is reduced.
5. The whole line is made of stainless steel, with a beautiful appearance and high appearance. Customers can visit it.
Parameter
Containers and Specifications (50mL-1000mL)
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension | 2200mm (L) x 1100mm (W)x 2200mm(H) | 2300mm(L) x1 100mm(W) x 2200mm(H) | 2400mm(L) x 1100mm(W) x 2200mm(H) | ||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm | ||||
| Neck diameter | Φ18mm | ||||
| Filling range | 50ml--1000ml (From ZT-PACK) | ||||
| Filling System | Piston Type | ||||
| Air pressure | 0.6Mpa--0.8Mpa | ||||
| Power supply | 380V ;50HZ / 60HZ | ||||
Containers and Specifications (1L-5L)
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
