Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 45sets per month |

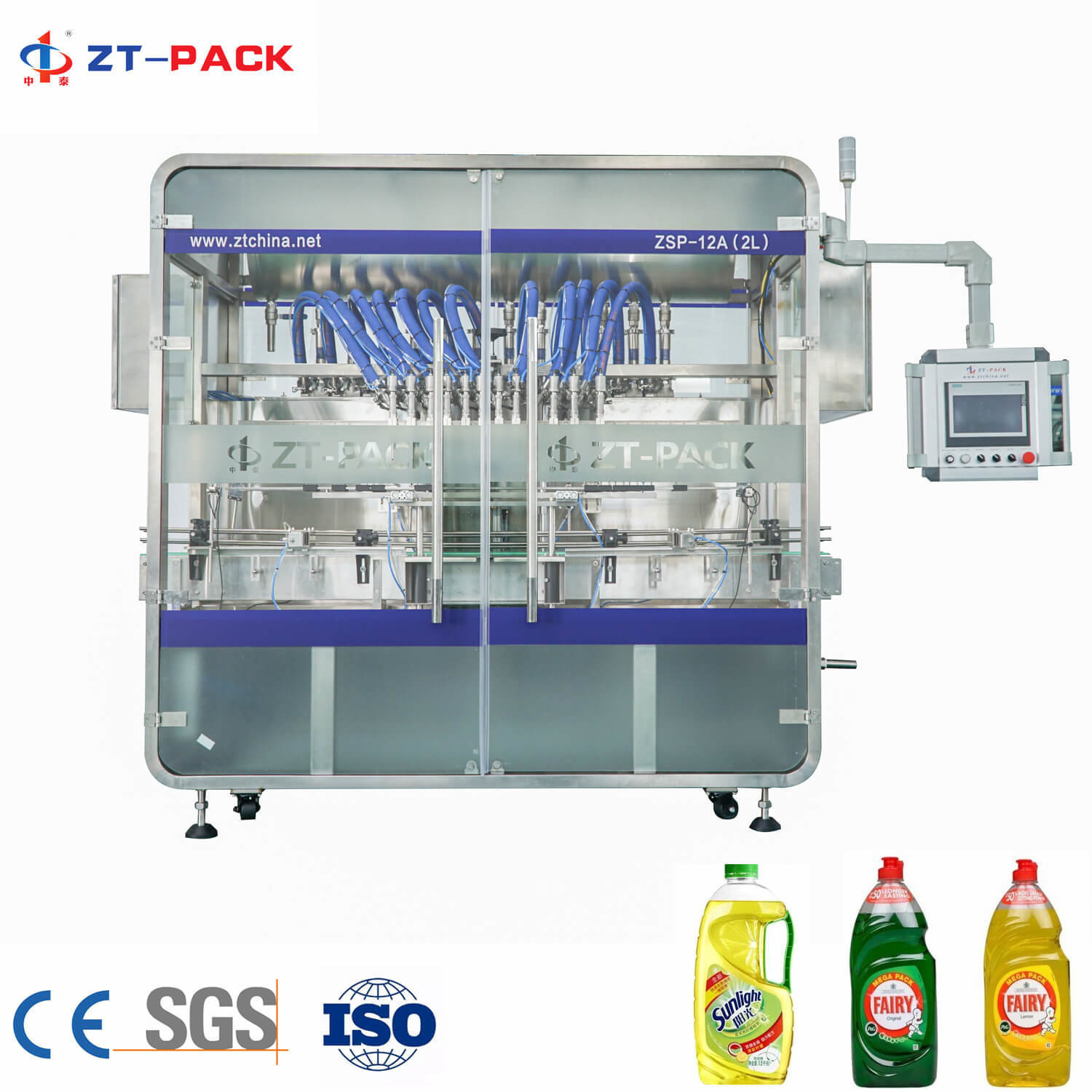

Machine Name
Description
Intellectual High Viscosity Filling Machine is the new-generation improved volumetric filling machine that is suitable for materials: agrochemical SC, pesticide, dishwasher, theoilkind, softener, detergent cream class contour viscosity materials.. The whole machine uses the in-line structure and it is driven by the servo motor. The volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface, and easy operation. The machine is equipped with an electric scale weight feedback system which makes the volume adjustment easier. it is an ice choice for foodstuff, pharmacy, cosmetic and chemical industries. This series of models is suitable for liquid and semi-automatic liquid without gas. Automatic counting is completed into the bottle, quantitative filling, and bottle conveying a series of operations.
Suitable For Filling: Laundry Detergent / Sanitizer Gel / Shampoo / Shower Gel / Conditioner / Dishwasher / Clothes Liquid ...Etc kinds Products
Main performance patameter:
1. Capacity:≤4000 bottles/hour (500ml as medium)
2. Applicable Bottle Type:Round bottle Φ40-100 mm,Height 80-280 mm Flat bottle (40-100mm)*(40-100mm)*(80-280mm)(L×W×H)
3. Bottle's mouth diameter:≥φ25mm
4. filling range:100-5000ml
5. Precision: (100ml) ±1% ;(100ml-1000ml)±0.5%
6. Air pressure : 0.6~0.8 MPA
7. Air consumption:120L/minute
8. Power Source:~380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 850Kg
12. Productiin line height:850mm±50mm
13. Filling materials:Viscosity liquid
14. Bottle feed direction:From left to right
Parameter
Layout Drawing :
