Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC, Western Union |
| Supply Ability: | 100 sets per month |
Intellectual Servo Motor Filling Machine For Bottle Oil Motor Oil Lubricant Oil Product Filling Capping Package Machines
Description
Intellectual High Viscosity Filling Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials. . The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
This series of model suitable for liquid and semi-automatic liquid without gas. Automatic counting is completed into the bottle, quantitative filling, and bottle conveying a series of operations.
Feature:
The servo motor control belt drives the submerged filling mode of the filling head operation. With the set variable speed filling function, the filling head rises with the liquid level, and the liquid level is synchronized, which can reduce the easy foaming. The production of foam during filling, preventing bottle mouth pollution caused by material spillage, effectively increasing production capacity.
Suitable for fill : Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products
Filling Range : 50ml -1000ml
1L -5L
4L -20L
208L / 220L -1000L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L )
contact us for more details
Parameters:
| 1 |
Capacity |
1000-6000BPH |
| 2 |
Applicable Bottle Type |
1L Height 190-200mm,width 135-145mm,thickness 55mm. |
| 3 |
Bottle’s mouth diameter |
1L diameter 35-45mm,machine design according to customer bottle |
| 4 |
Filling range |
100ml-5000ml |
| 5 |
Precision |
±0.5% |
| 6 |
Air pressure |
0.6～0.8 MPA |
| 7 |
Air consumption |
120L/minute |
| 8 |
Power Source |
～380V/220V,50HZ/60HZ |
| 9 |
Power |
2.5KW |
| 10 |
External Dimension |
2440×1150×2300mm(L×W×H) |
| 11 |
Weight |
About 1850Kg |
| 12 |
Production line height |
850mm±50mm |
| 13 |
Filling materials |
Oil liquid |
| 14 |
Bottle feed direction |
From left to right |

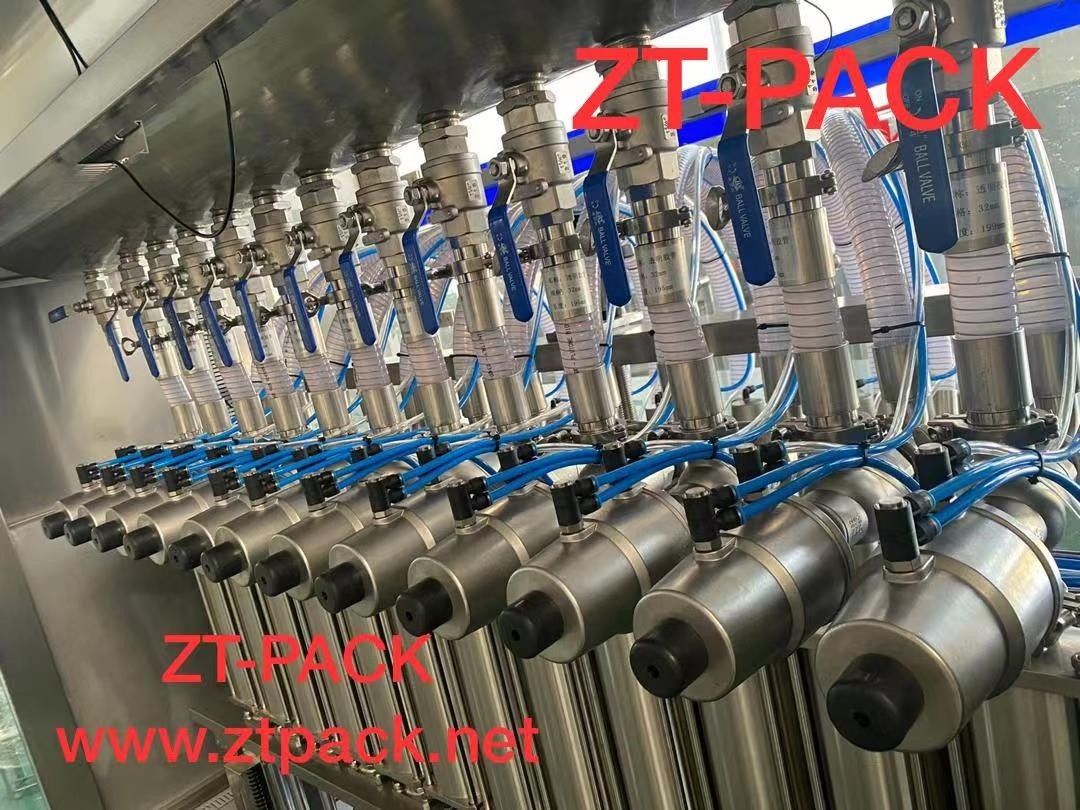

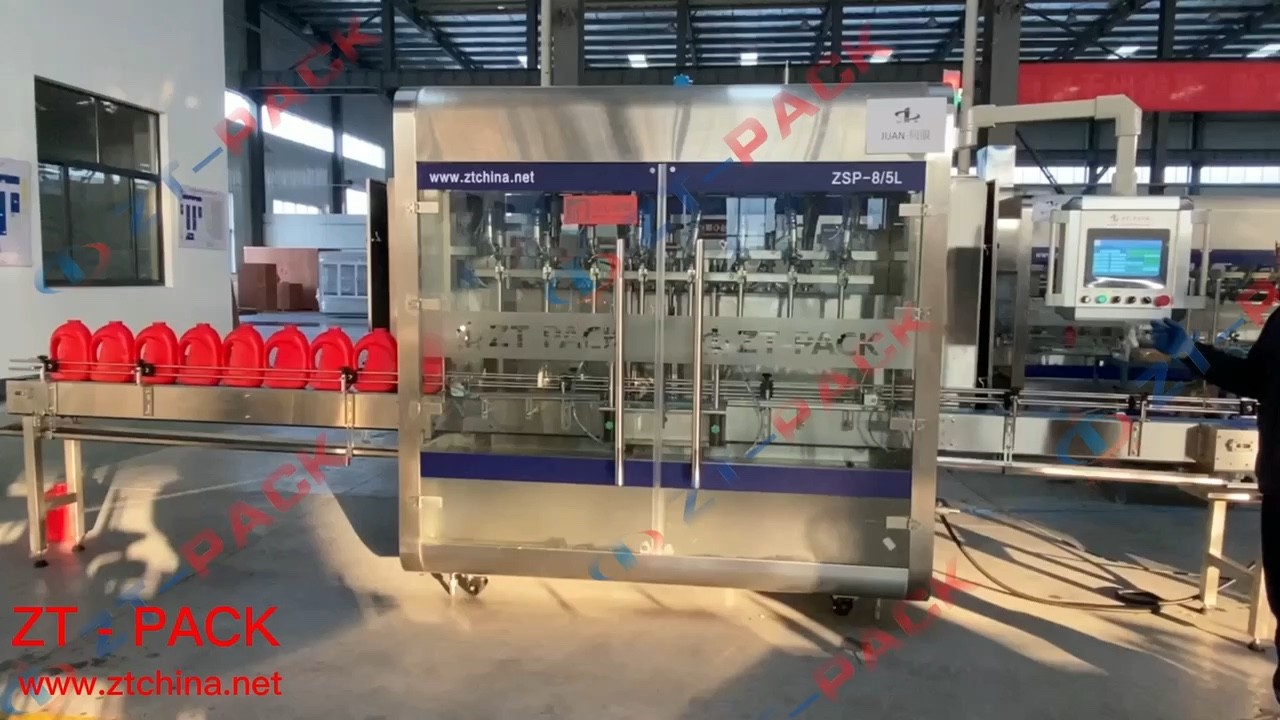

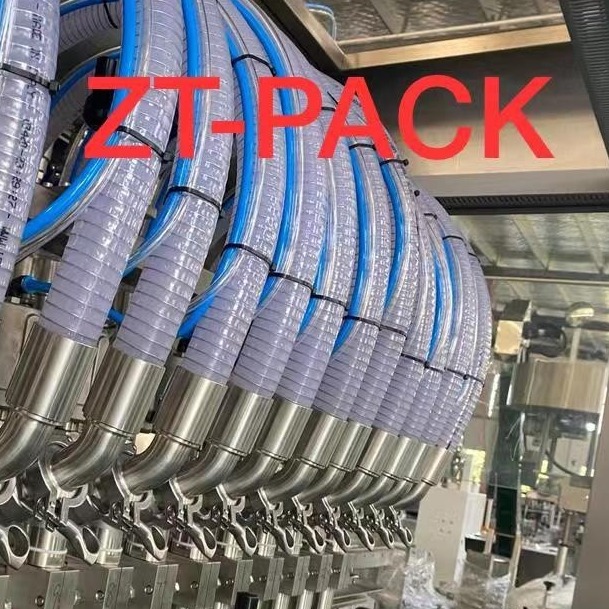

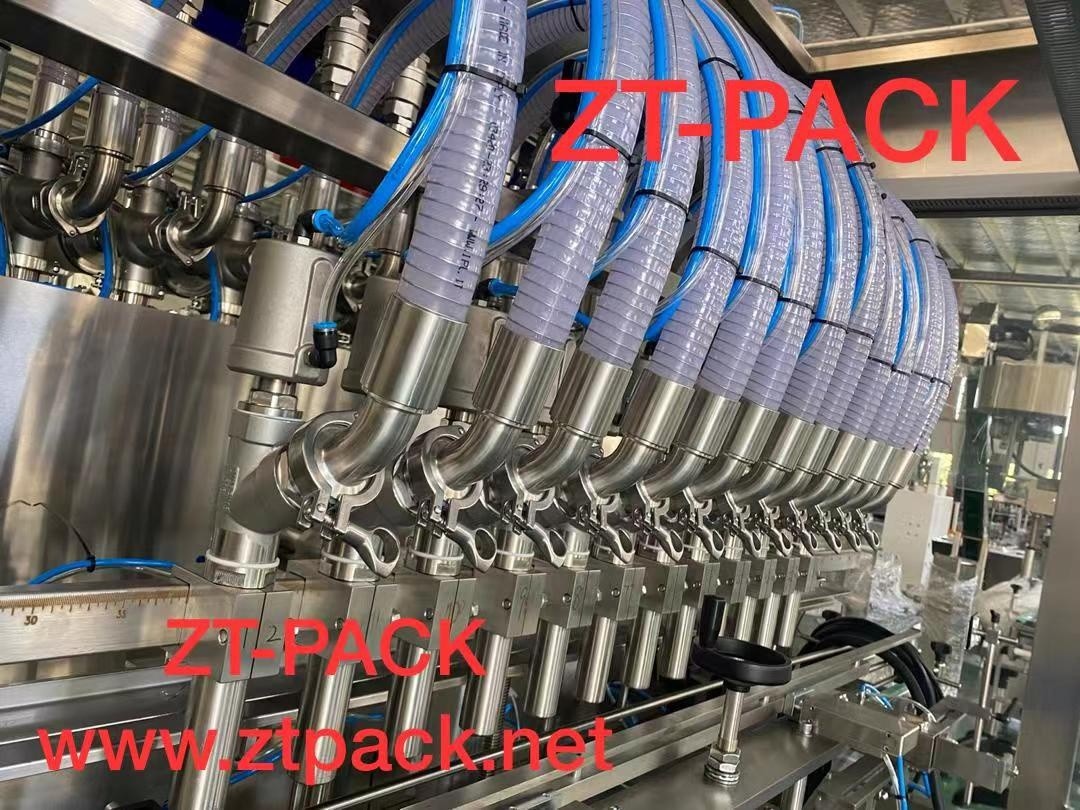

Details:
