Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days |
| Payment Terms: | TT/LC, Western Union |
| Supply Ability: | 30 sets per month |

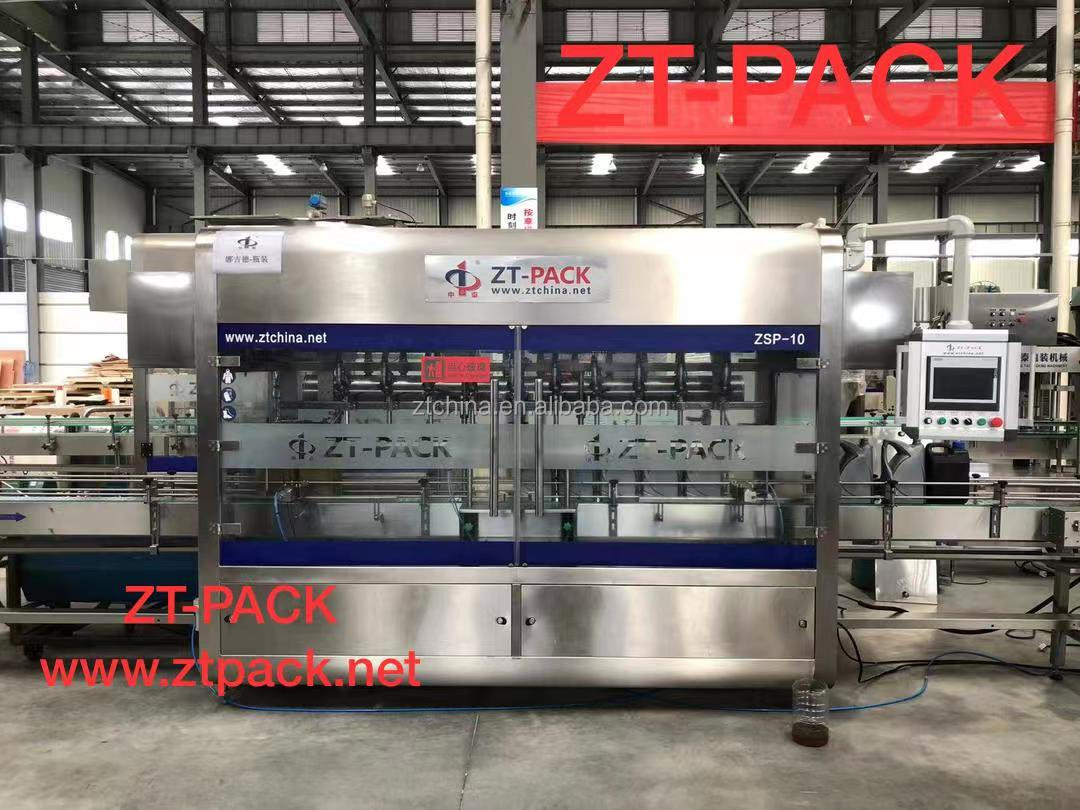

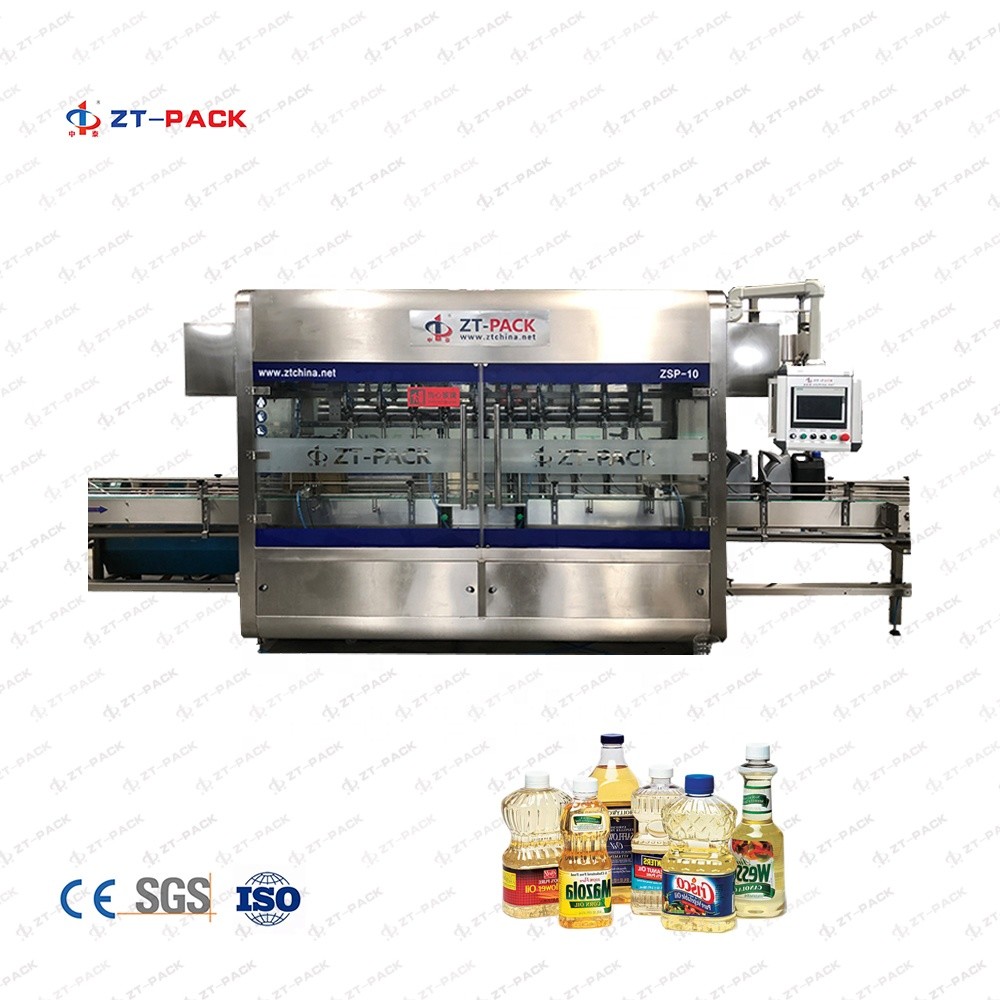

Automatic PET HDPE Bottle Oil Food Oil Cookie Oil Vegetable Oil Bottle Filling Packing Machine
Description
This filling machine adopts PLC and touch screen automatic control. It has the advantages of accurate measurement, advanced structure, stable operation, low noise, large adjustment range and fast filling speed.
For peanut oil, walnut oil and other oils canned equipment preferred.
The measurement can be adjusted digitally on the human-machine interface, and the required measurement can be set to 1L-5L, which can be reached at the touch of the touch screen, and the measurement can be fine-tuned on a single head. The equipment is controlled by the patent system of single head single pump single frequency converter, which ensures the filling accuracy of 1‰. While ensuring the filling accuracy, the filling speed is increased by 20%-35%. The operation is simple, the maintenance is convenient, the labor cost is saved, and the production efficiency is higher.
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds Products
Equipment Features:
The principle of the elliptic gear flow meter is to measure the rotation of the elliptic gear by the pressure head of the measured medium. The greater the viscosity of the medium, the smaller the leakage from the gear and the space gap, the greater the viscosity of the medium, the smaller the leakage error and the more favorable for the measurement. The elliptical gear flow meter has high accuracy and is suitable for the measurement of the flow rate in the medium with high viscosity, especially for the filling of different labels and different viscosity.
1: the advantage of flow meter way: The adjustment in dosage is convenience and quick, the volume only need to be set on the touch screen directly, considered that the vegetable oil is different in density in the different temperature, resulting in the volume setting different, we have added an automatic temperature-compensated system.
The accuracy of filling: instead of the traditional computing type of flow meter --through pulse generator, now promoted by our company, adopting rotary encode is more accurate.
2: The speed of filling: instead of the traditional power delivery -- pressure artesian flow, our machine adopting frequency converter to adjust the speed of filling, the efficiency highly raised. The speed can be arbitrarily adjusted on panel. the adjustment of filling accuracy, promoted by our company, the weight of filling can be set on the touch screen.
3: It will not affected by the season, In summer and winter the oil all can be fill easily, not restricted by the viscosity of oil products, such as gear oil can also be easily filled. The more viscous material is, the more obvious the advantage of flow meter filling method is.
4:The operation interface is simple, easy to learn and maintain, low requirements for field operators, use of start up and formula adjustment and one key solution
5: No wearing parts in the production process, mechanical transmission, The cost in use is lower.
Main Performance Parameters:
| Capacity | ≤4000 bottles/hour |
| Filling range | 100ml-5000ML |
| Precision |
± ≤ 0.5% FS |
| Filling nozzles | 6/8/10/12/16 |
| Air consumption |
0.5-1 .0 MPA |
| Power Source | ～380V,50HZ |
| Power | 2.5KW |
| External Dimension |
2200*1600*2400mm (L×W×H) |
| Weight | About 1600Kg |
| Production line height | 850mm±50mm |
| Bottle feed direction | From left to right |
Parameters:

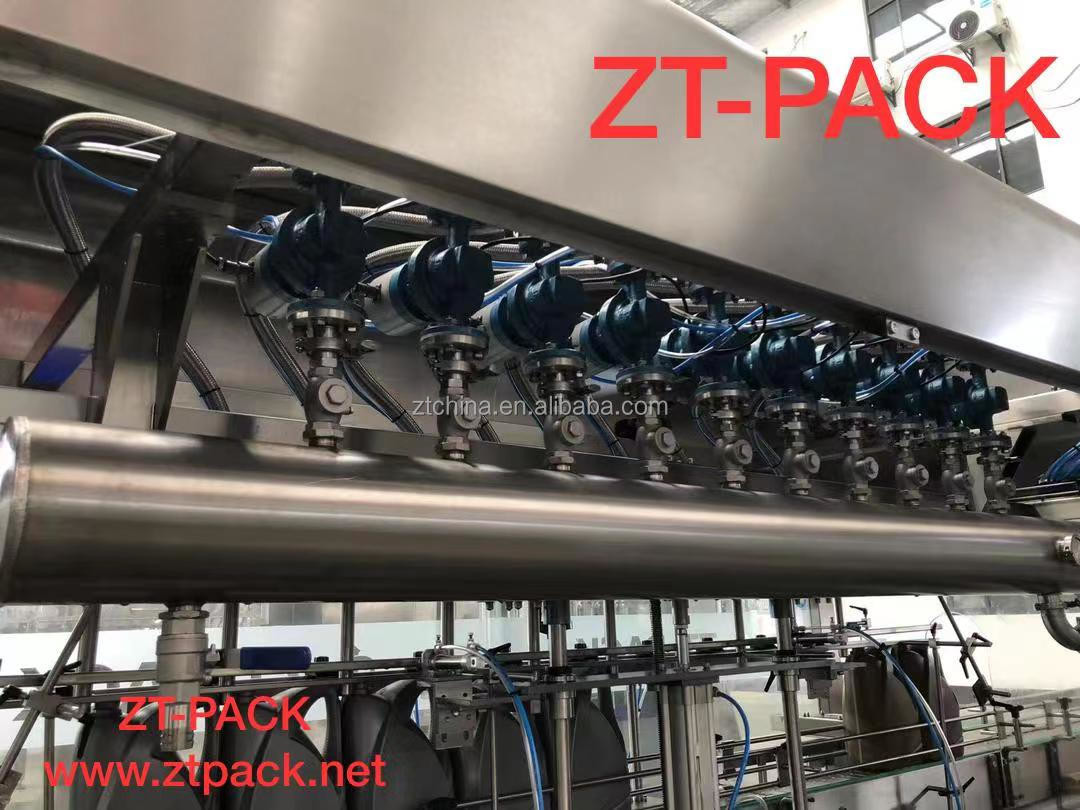

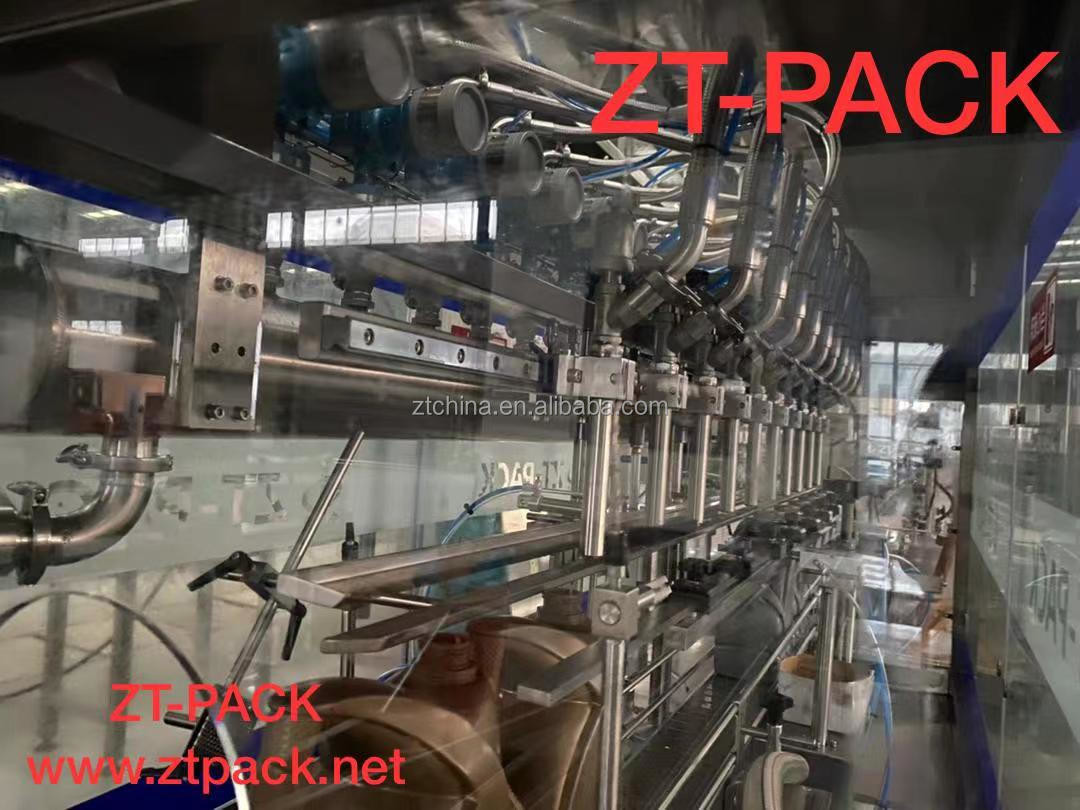

Details:
