Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days |
| Payment Terms: | TT/LC, Western Union |
| Supply Ability: | 100 sets per month |

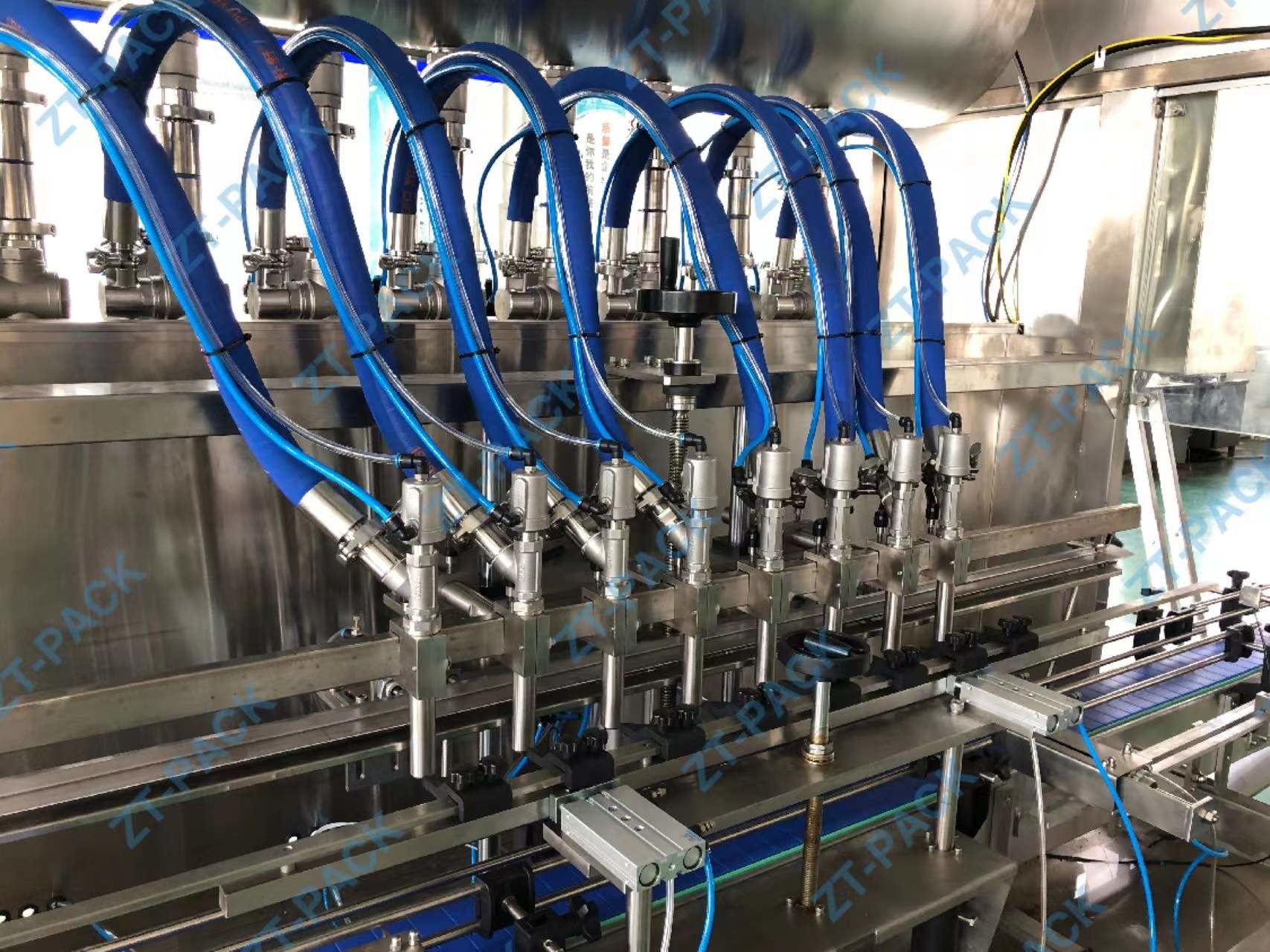

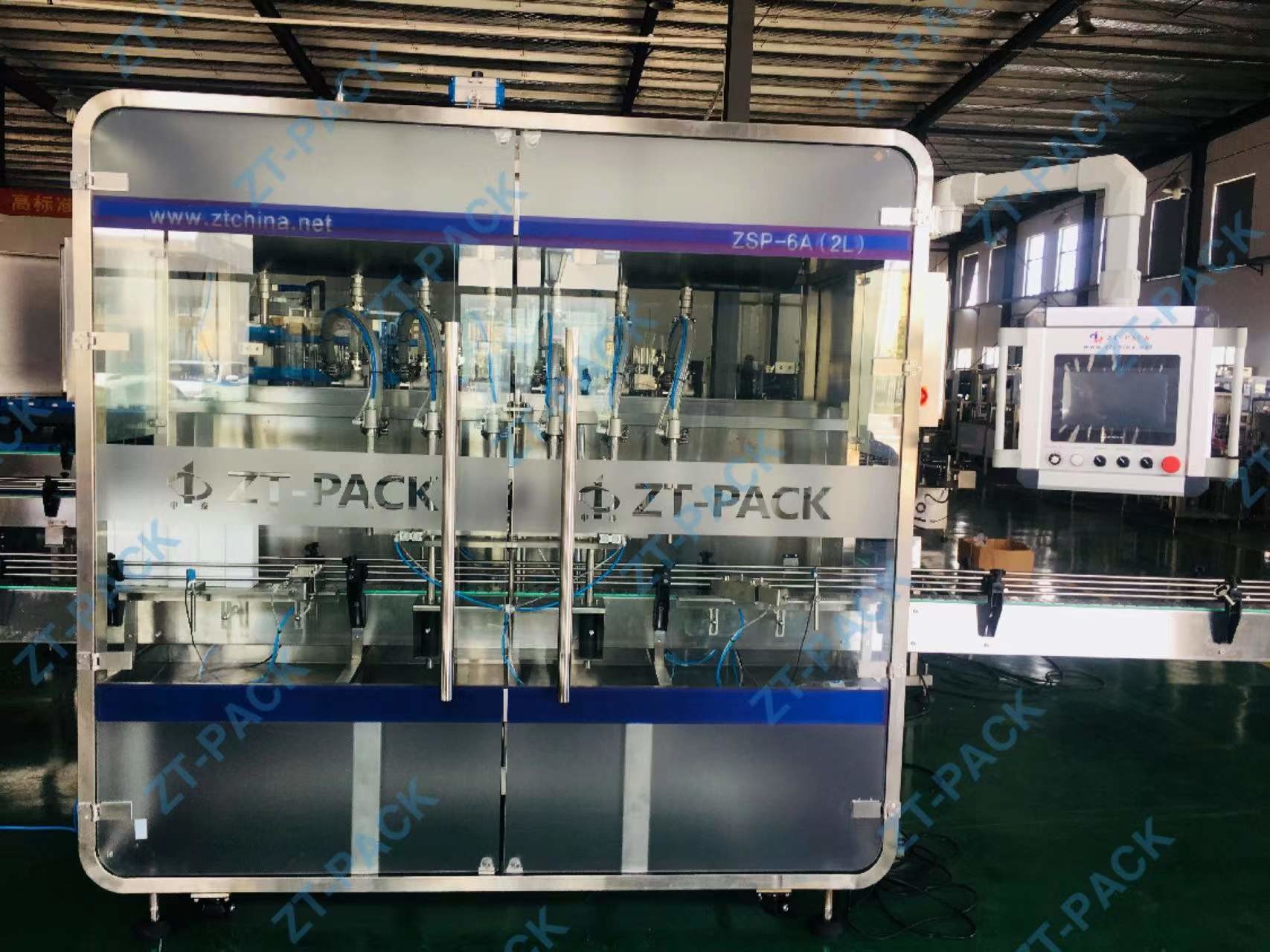

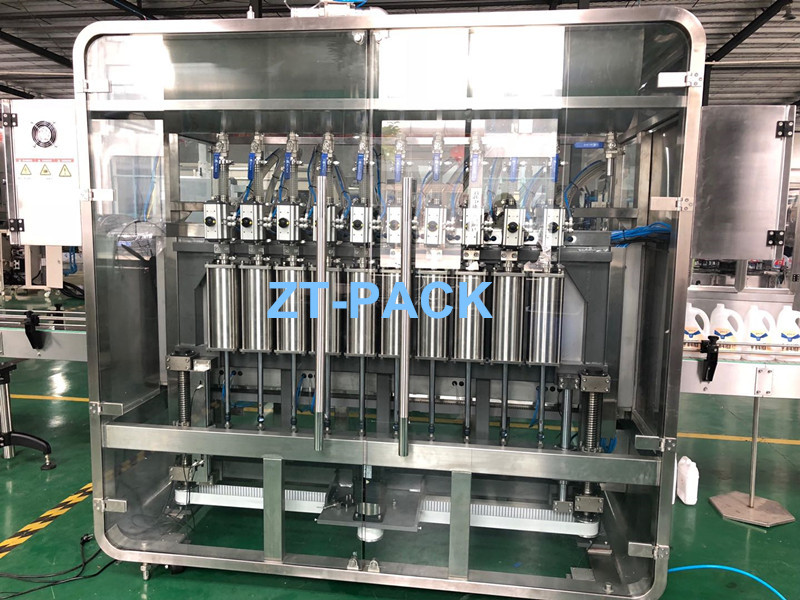

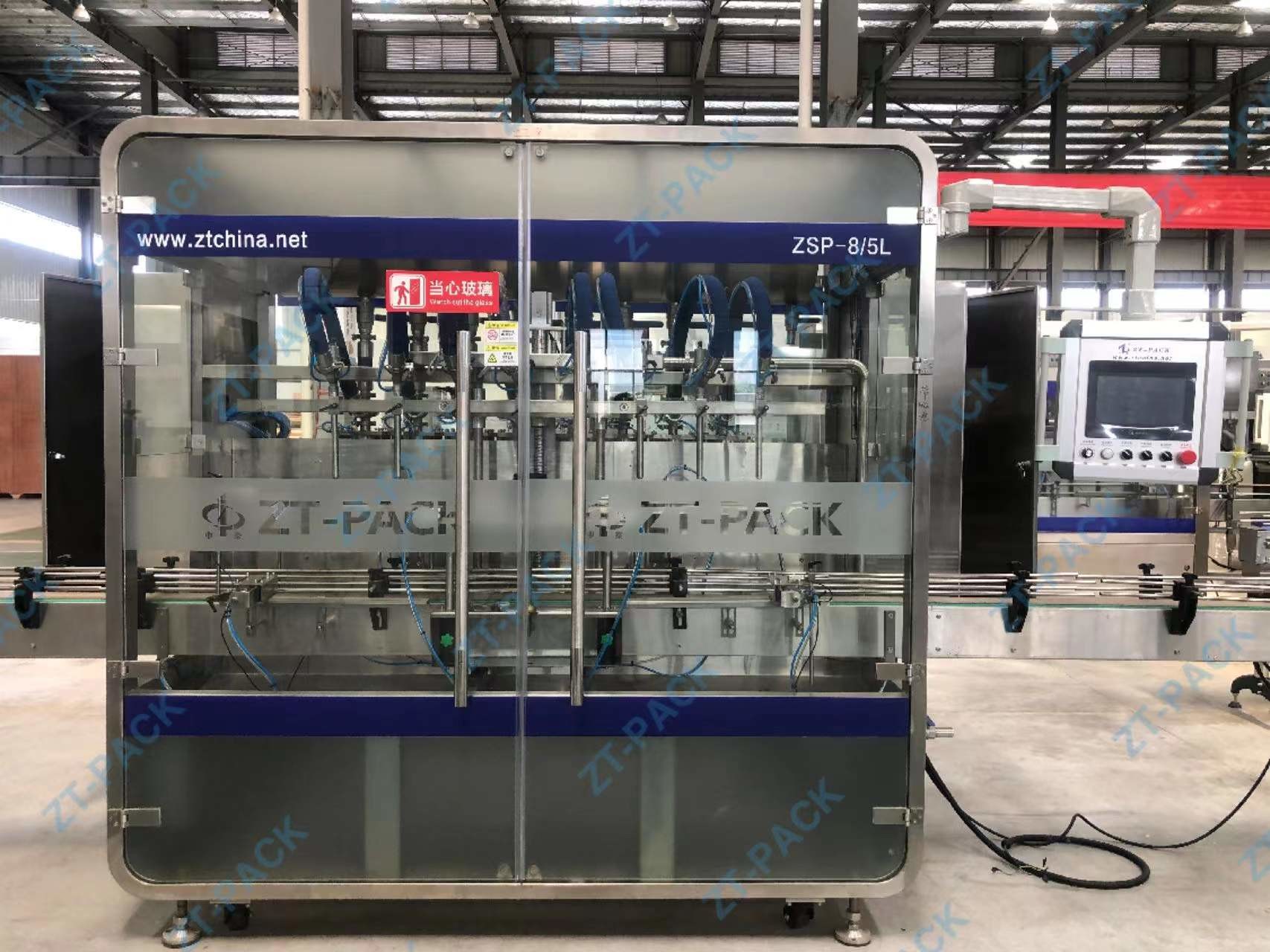

SS316 PLC Control Sunflower Oil Peanut Oil Edible Oil With Capper Wet Glue Paper Labler Bottle Oil Filling Machine
Description
ZSP-A Intellectual High Viscosity Filling Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials. . The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
This series of model suitable for liquid and semi-automatic liquid without gas. Automatic counting is completed into the bottle, quantitative filling, and bottle conveying a series of operations.
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds Products
Equipment Features:
1, The machine adopts PLC and touch screen automation control, with accurate measurement, advanced structure, smooth operation, low noise, large adjustment range, the filling speed, etc.
2, The machine adopts advanced macaronis technology to replace any of the filling specifications only need to modify the parameters in the touch screen , can also be a significant overall adjustment of filling volume of each filling head , but also for every filling volume of a single micro- adjustment carried head .
3, the application of touch-screen technology, the operation of the machine is more reliable, convenient and human-machine interface more friendly. Photoelectric sensors, proximity switches, etc. are used in advanced sensing elements, so no bottle no filling, plugging bottles will automatically stop and alarm.
4, filling way with dive style, using different materials seal rings, to meet the different characteristics of the filling material.
machine produced according to GMP standards , all piping connections using quick way to disassemble and clean convenient location and contact with the material exposed parts are made of high quality stainless steel , machine safety, environmental protection , health, beauty, able to adapt a variety of work in different environments.
Main Performance Parameters:
| Capacity | ≤4000 bottles/hour |
| Applicable Bottle Type | Height 190-200mm,width 135-145mm,thickness 55mm. |
| Bottle’s mouth diameter |
1L diameter 35-45mm,machine design according to customer bottle
|
| Filling range | 100ml-5000ML |
| Precision | 100ml-5000ml ±0.5% |
| Air pressure | 0.6～0.8 MPA |
| Air consumption | 120L/minute |
| Power Source | ～380V,50HZ |
| Power | 2.5KW |
| External Dimension | 2440×1150×2300mm(L×W×H) |
| Weight | About 1850Kg |
| Production line height | 850mm±50mm |
| Filling materials | Viscosity liquid |
| Bottle feed direction | From left to right |
Parameters:
Details:
