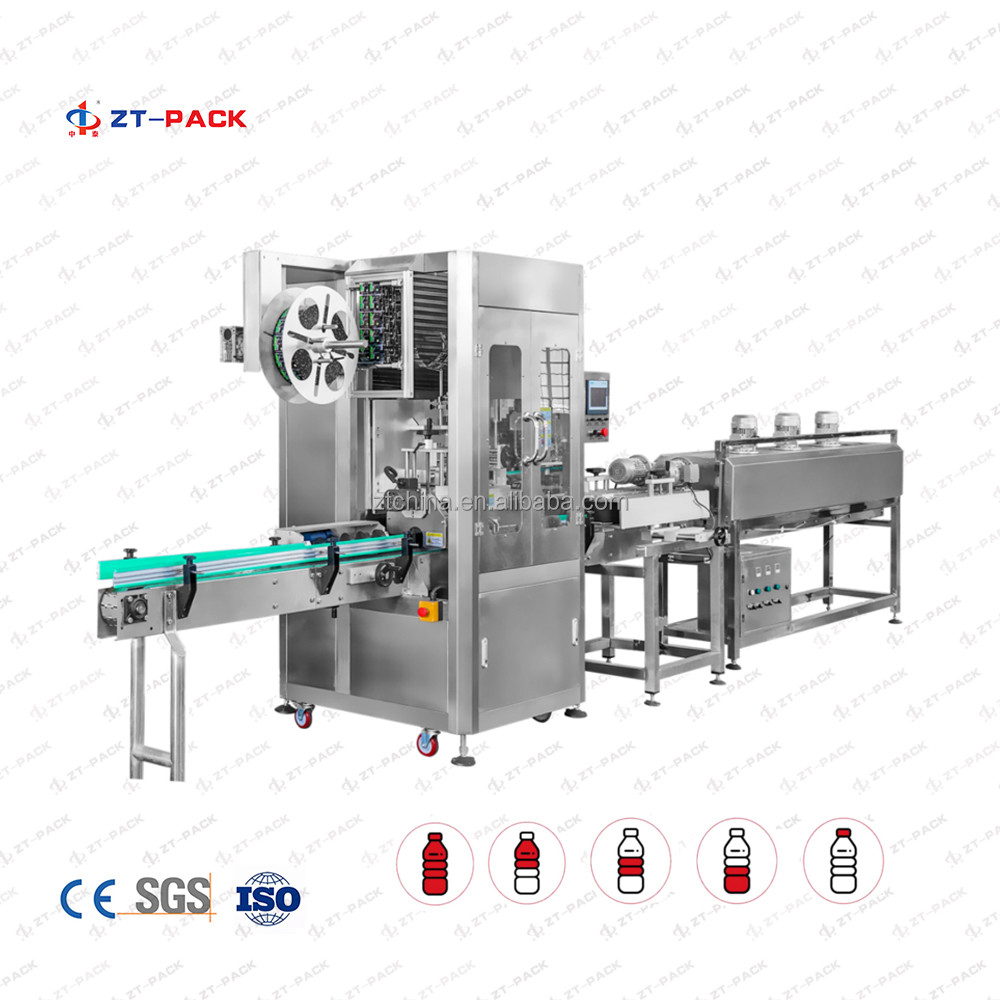

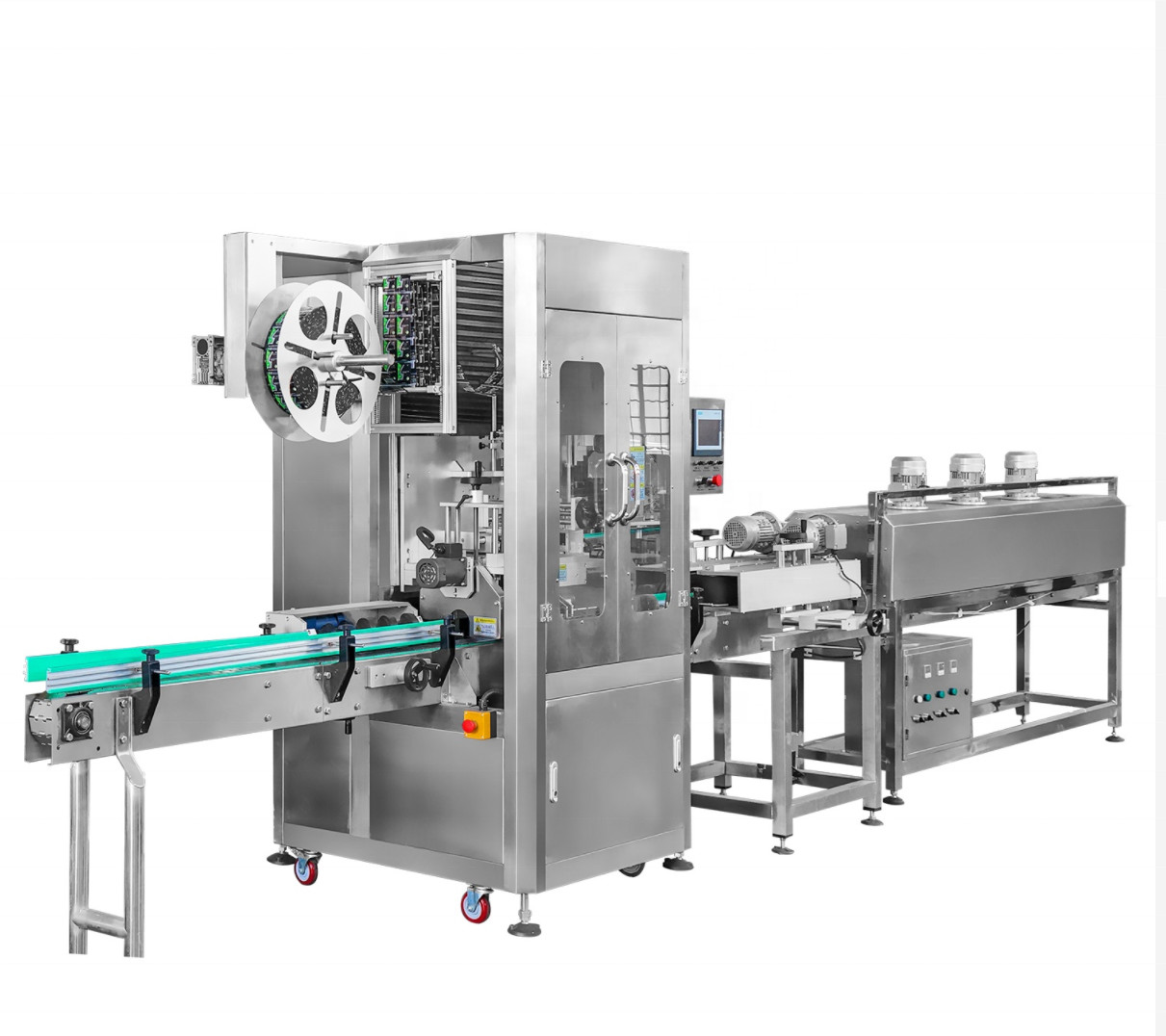

High Capacity Shrink Sleeve Labeling Machine With Steam Or Electrical Heating Tunnel

Product Details:
Place of Origin: China
Brand Name: ZT-PACK
Certification: CE,ISO,SGS,SABER
Model Number: TSB-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 45sets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Product Name: Shrink Sleeve Labeling Machine
Application: Food, Beverage, Commodity, Medical, Chemical
Weight: 550 KG
Dimension(L*W*H): 2200mm*1500mm*1550 Mm
Voltage: 380v
Key Selling Points: Easy To Operate
Machinery Capacity: 600BPH, 20-200pcs/min
Warranty: 1 Year
Highlight:

600BPH Shrink Sleeve Labeling Machine

,

Electrical Heating Tunnel Sleeve Labeling Machine

Product Description

Hot Sale High Capacity Shrink Sleeve Labeling Machine with Steam or Electrical Heating Tunnel




Description

This machine massively has used the aluminum alloy and high strength, the anti-corrosive stainless steel, causes the machine over all overhead construction firmer durable, in the machine performance the modulation, the human nature design causes each adjustment easier, the replacement model is simpler. Using the man-machine contact surface in the control system to control, which is easy to study and understand.


Method of operation

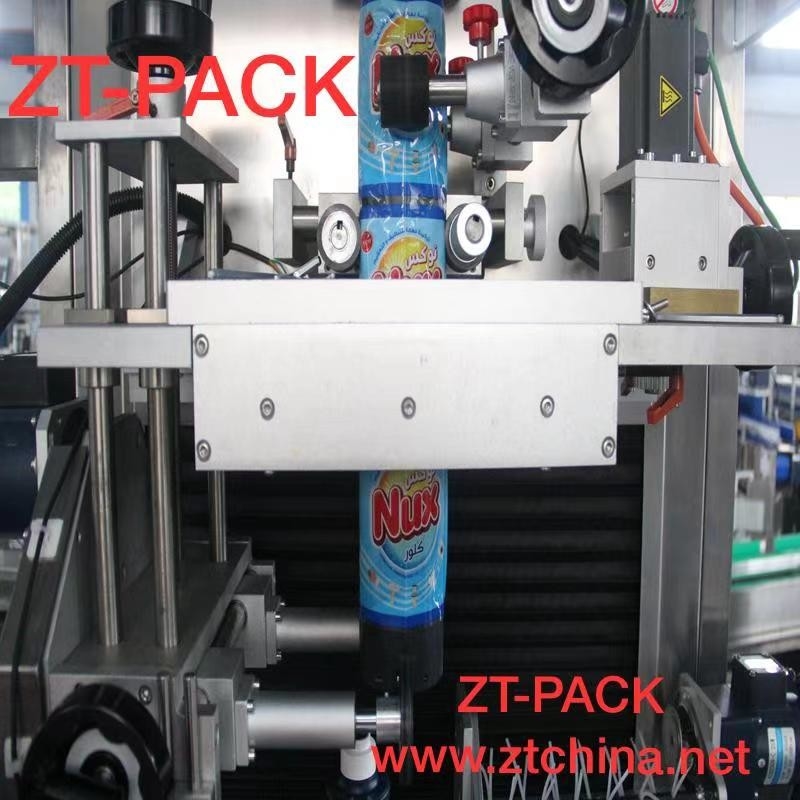

1. Container infeed
2. Suspension for the cutting unit (height-adjustable)
3. Mandrel
4. Sleeve transport¬unit
5 Sleeve cutter unit with servo-controlled,rotating blades
6. Lowering belt
7. Device for positioning of the sleeves (optional)
8 Hot-air nozzles for pre-shrinking (optional)Unwinding and cutting of the film sleeve is performed. After cutting, a feed applies the open sleeves directly to the container.
Depending on the container shape and the sleeve size, an optional positioning module moves the sleeve to the desired position.

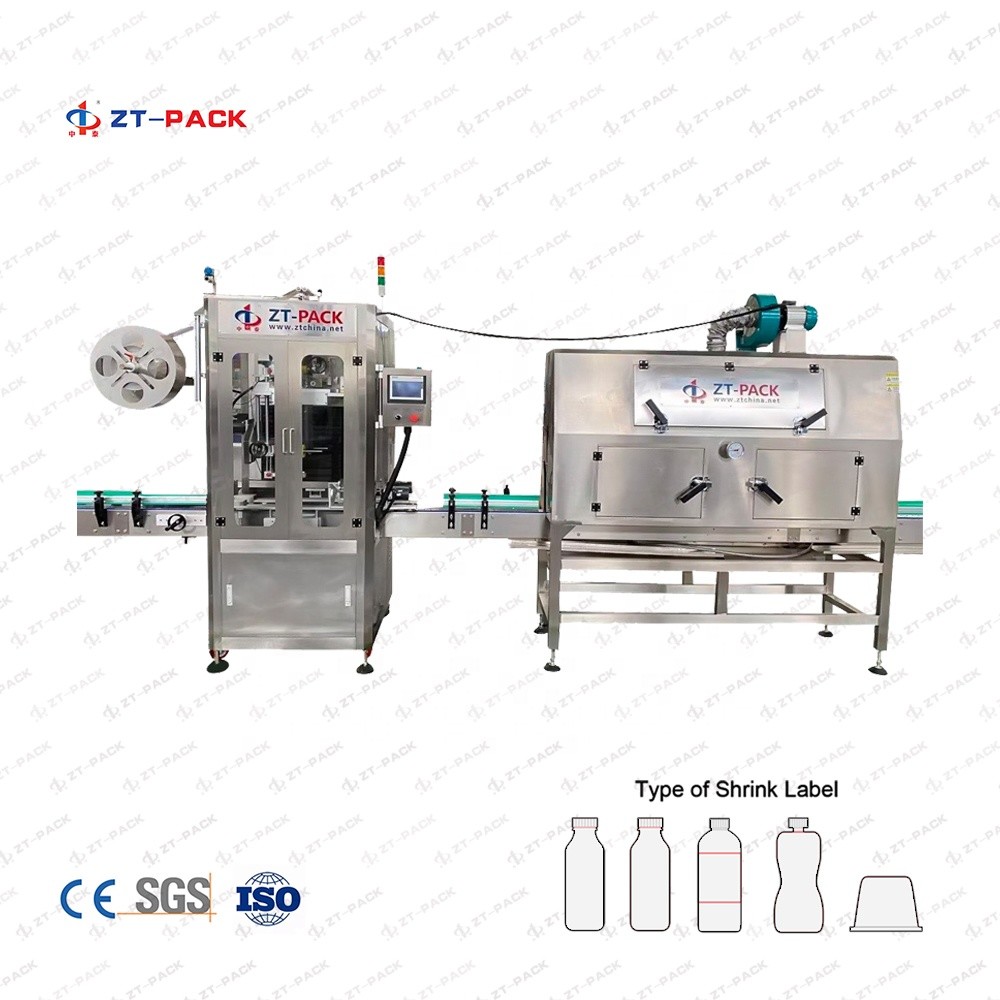

Partial sleeves will be moved to their exact position by means of lateral guides. Optional hot-air nozzles shrink and pre-position the sleeves. After that, the sleeves are shaped perfectly around the container contour in a steam or hot-air tunnel.
Labelling with shrinkable full body and partial sleeves

Parameters
High Capacity Shrink Sleeve Labeling Machine With Steam Or Electrical Heating Tunnel 0

Details
High Capacity Shrink Sleeve Labeling Machine With Steam Or Electrical Heating Tunnel 1
High Capacity Shrink Sleeve Labeling Machine With Steam Or Electrical Heating Tunnel 2
High Capacity Shrink Sleeve Labeling Machine With Steam Or Electrical Heating Tunnel 3
High Capacity Shrink Sleeve Labeling Machine With Steam Or Electrical Heating Tunnel 4
