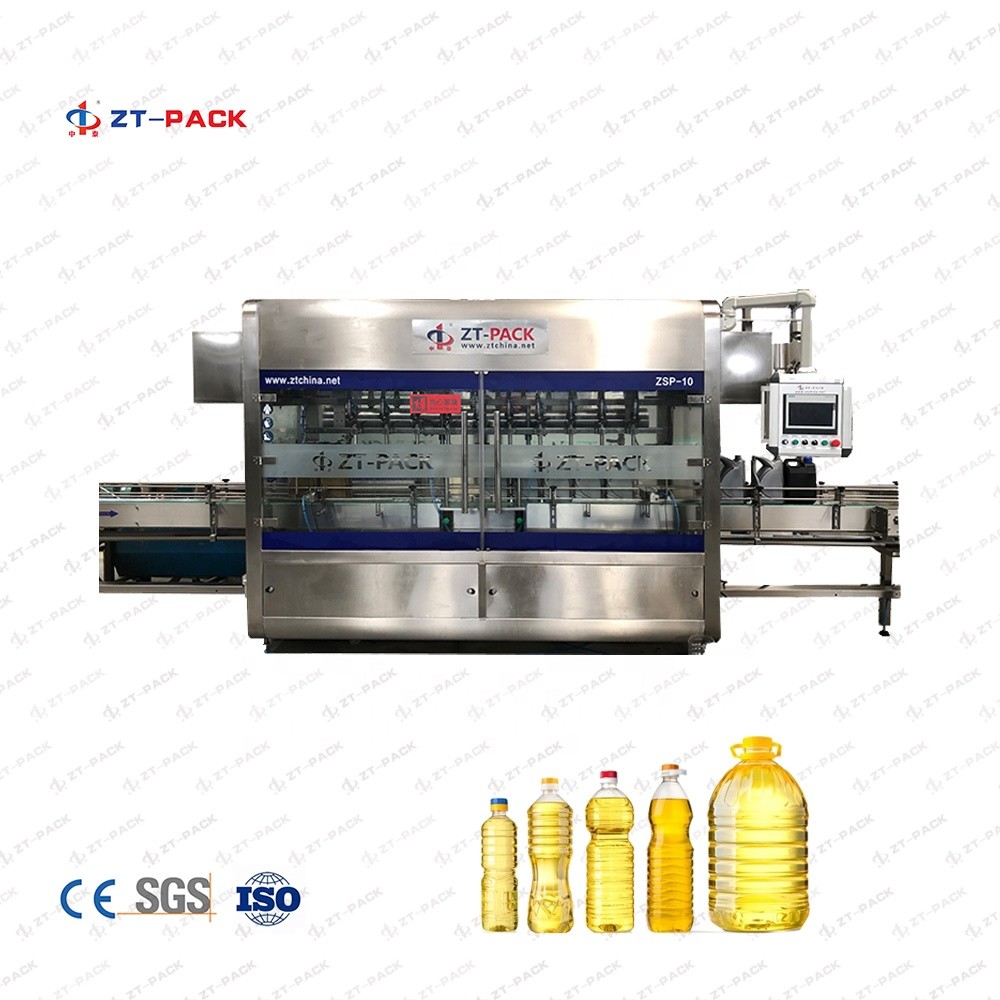

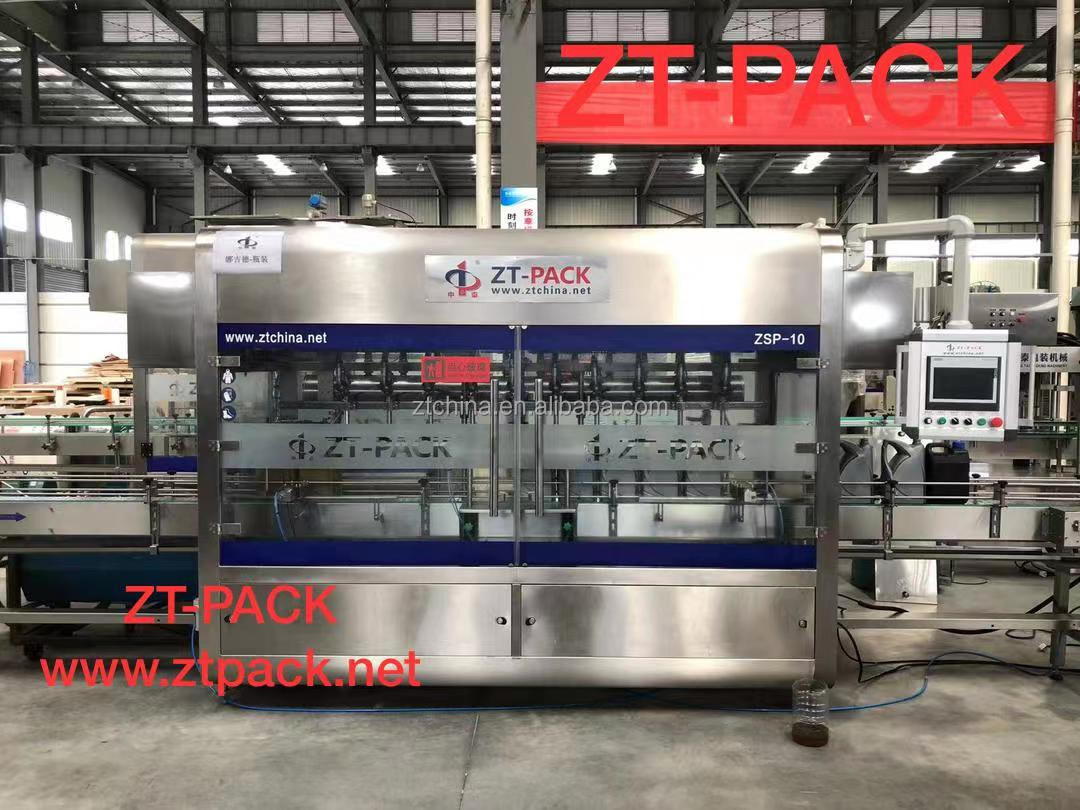

Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line
Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line
Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line

Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line

Product Details:
Place of Origin: China
Brand Name: ZT-PACK
Certification: CE,ISO,SGS,SABER
Model Number: ZT-FL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Contact Now
Specifications Product Description Request A Quote
Specifications
Specifications
Product Name: Edible Oil Filling Machine
Application: Food, Beverage, Chemical, Oil
Dimension(L*W*H): 2440*1150*2300mm
Weight: 1850 KG
Voltage: 380V 50HZ
Key Selling Points: High-accuracy
Filling Material: Oil, Lubricant Oil
Filling Accuracy: 0.2%
Capacity: 1000-5000BPH
Filling Range: 100ml-1000ml ; 1-5L
Control: Servo Motor Control Filling Volume
Filling Nozzles: 6-16 Nozzles Can Be Choose
Warranty: 1 Year
Highlight:

Vegetable Edible Oil Filling Machine

,

1000BPH Edible Oil Filling Machine
Product Description

Vegetable Edible Oil Filling Machine Supplier Plant Price For Cooking Press Sunflower Oil Production Packing Line



Description

* Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds Products


* Filling Range

50ml -1000ml
0.5L -5L
4L -30L


* Filling System : Flow Meter

* Speed can be choosen : from 1000BPH-6000BPH (basic on 1L ) contact us for more details

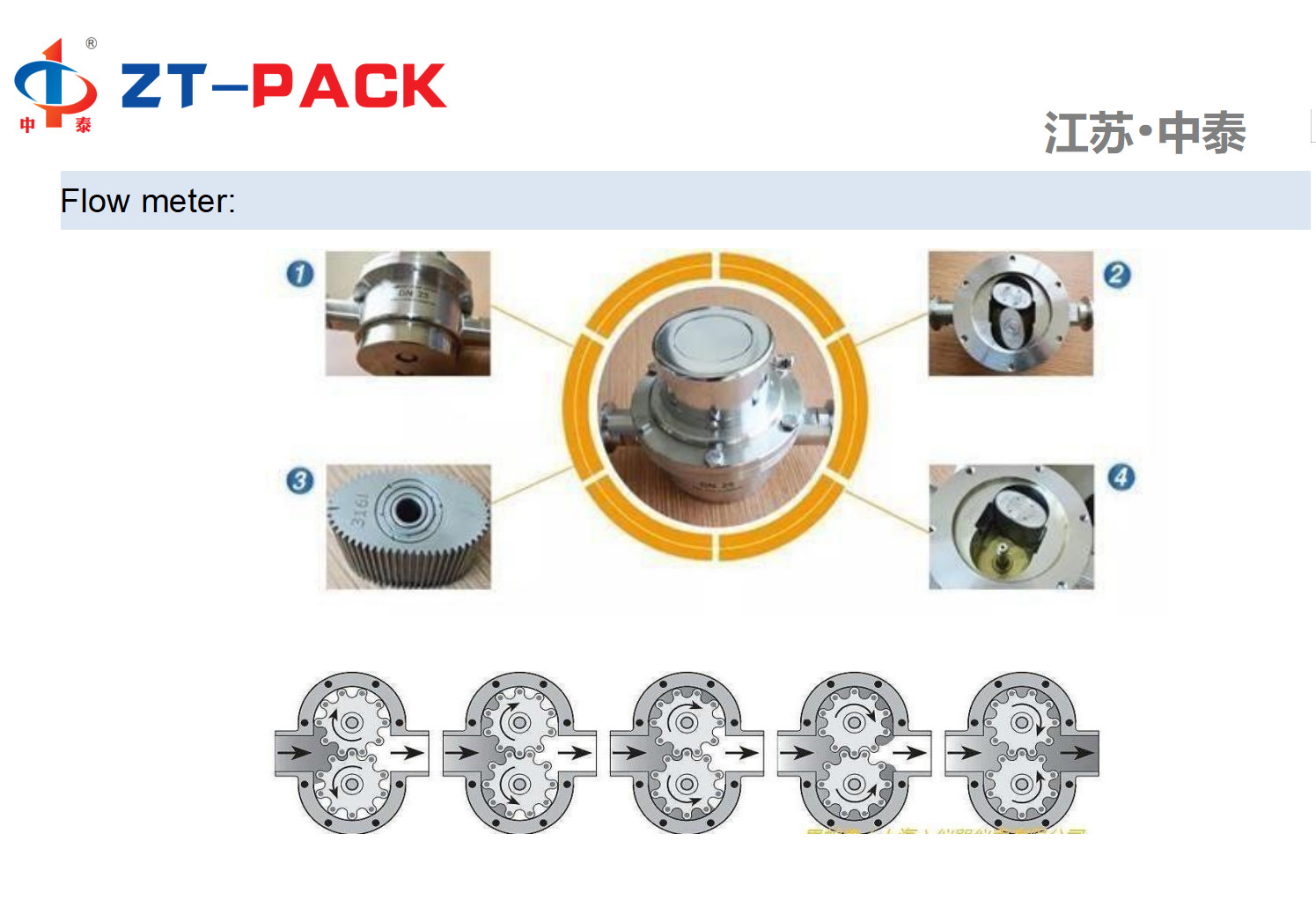

1: The advantage of flow meter way:
The adjustment in dosage is convenience and quick, the volume only need to be set on the touch screen directly, considered that the vegetable oil is different in density in the different temperature, resulting in the volume setting different, ZT-PACK have added an automatic temperature-compensated system.

The accuracy of filling:
Instead of the traditional computing type of flow meter --through pulse generator, now promoted by ZT-PACK, adopting rotary encode is more accurate.

2: The speed of filling:
Instead of the traditional power delivery pressure artesian flow, ZT-PACK machine adopting frequency converter to adjust the speed of filling, the efficiency highly raised. The speed can be arbitrarily adjusted on panel. the adjustment of filling accuracy, promoted by ZT-PACK, the weight of filling can be set on the touch screen.

3: It will not affected by the season, In summer and winter the oil all can be fill easily, not restricted by the viscosity of oil products, such as gear oil can also be easily filled. The more viscous material is, the more obvious the advantage of flowmeter filling method is.

4:The operation interface is simple, easy to learn and maintain, low requirements for field operators, use of startup and formula adjustment and one key solution

5: No wearing parts in the production process, mechanical transmission, The cost in use is lower.

Parameters
Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line 0
Details
Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line 1

Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line 2
Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line 3Vegetable Edible Oil Filling Machine For Sunflower Oil Production Packing Line 4
