Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 100 sets per month |

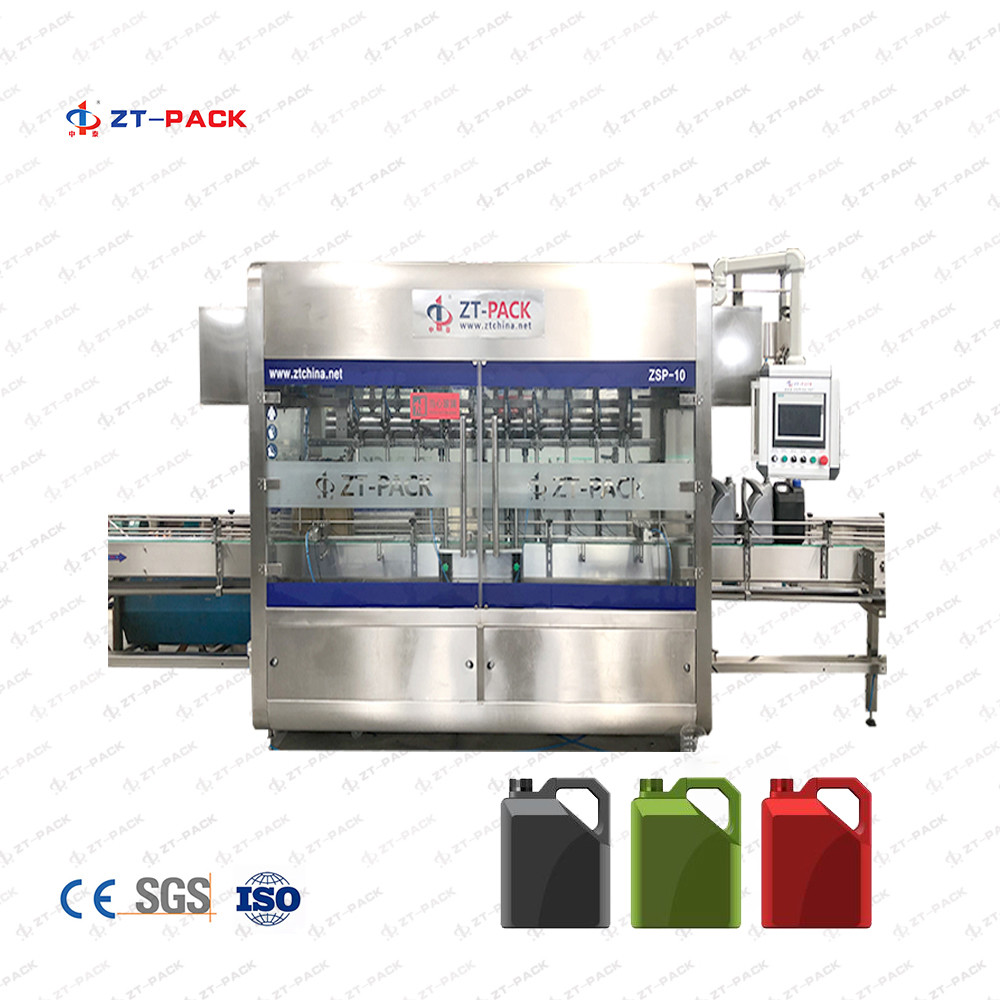

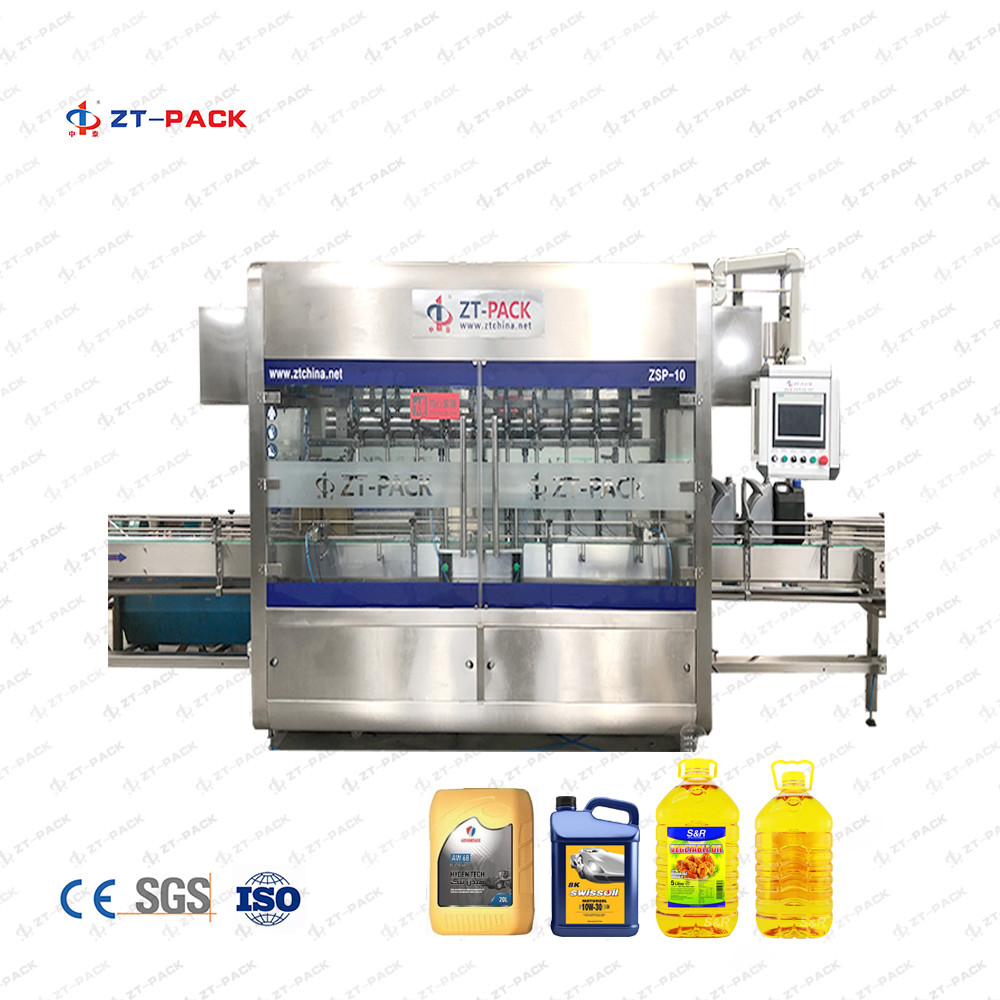

New Design Linear 6-16 Nozzles Flow Meter Liquid Filler Bottle For Car Oil Lubricant Oil Filling Machines Packing Line
Description
This type filling system is flow meter type which is the better ideal for oils filling packing
The principle of the elliptic gear flow meter is to measure the rotation of the elliptic gear by the pressure head of the measured medium.
The greater the viscosity of the medium, the smaller the leakage from the gear and the space gap, the greater the viscosity of the medium, the smaller the leakage error and the more favorable for the measurement.
The elliptical gear flow meter has high accuracy and is suitable for the measurement of the flow rate in the medium with high viscosity, especially for the filling of different labels and different viscosity.
Suitable for fill : Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products
Filling Range : 50ml -1000ml
1L -5L
4L -20L
208L / 220L -1000L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L )
contact us for more details
Feature:
1.Stainless steel and sanitary pipes are used, and the connection parts are all fast-connected.
2.A liquid holder which is controlled by an individual cylinder is installed under the filling nozzles. It can avoid the pollution to the bottle after the filling nozzles are OFF.
3.The material level sensor is used to check the level position under normal running of the machine, plus with high and low level check and alarm device. A filter is installed in the tank (very easy for disassemble). It can improve the precision of filling and life of the filling valves.
4.We use the latest PTFE sealing parts which can improve the abrasion resistance of the sealing parts (24 months). It solves the problem that piston filling machine can not be used for SC, EC and high-viscosity.
Parameters:
| Model | ZT-FM | |||
| Nozzle Number | 4 | 8 | 10 | 12 |
| Filling volume | 100ml-5L(From ZT-PACK) | |||
| Production capacity | 300-4000pcs/Hour (Depend on filling volume and filling head) | |||
| Quantitative error | ≤±0.5% | |||
| Voltage | AC200V / 380±10% ; 50HZ/60HZ | |||
| Filling method | By Flow meter system | |||
| Consumed power | 3 | 6 | 9 | 12 |
| Air pressure | 0.6Mpa--0.8Mpa | |||
| Power supply | 1.5kw | 2.2kw | 3kw | 4kw |

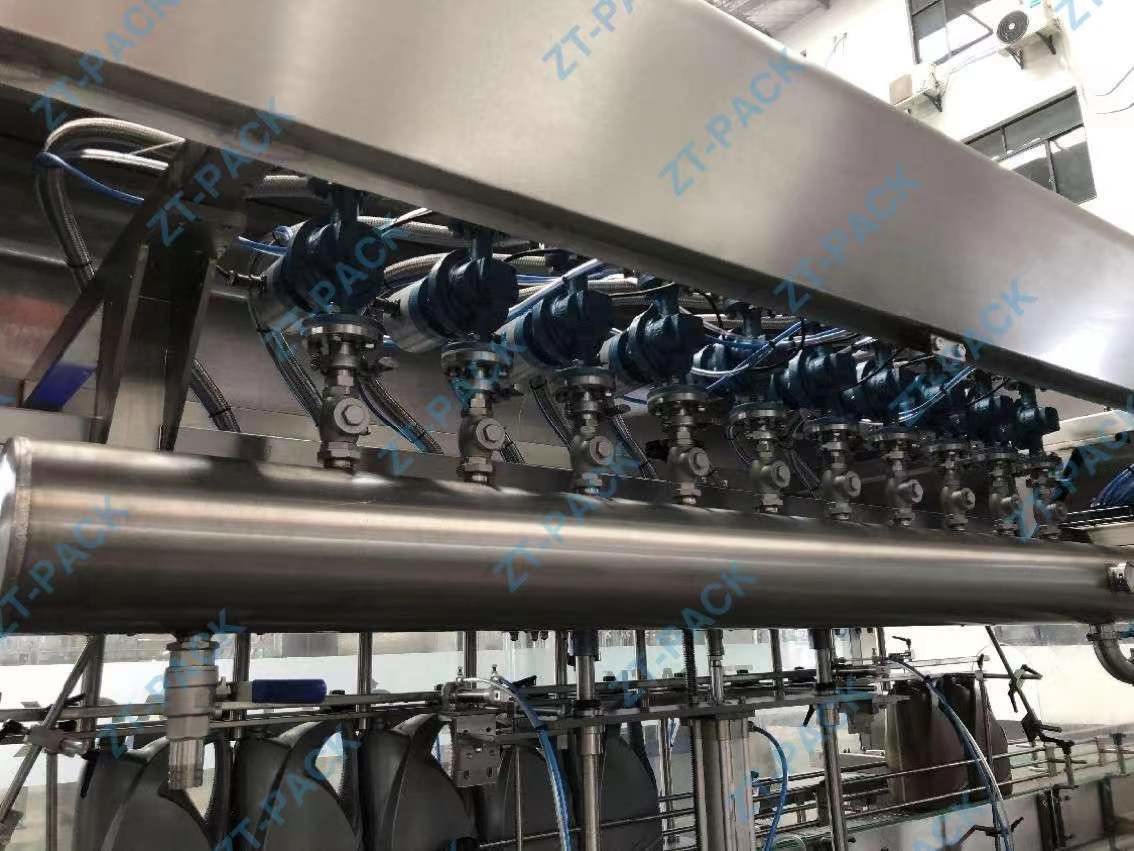

Details:
