Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 100 sets per month |

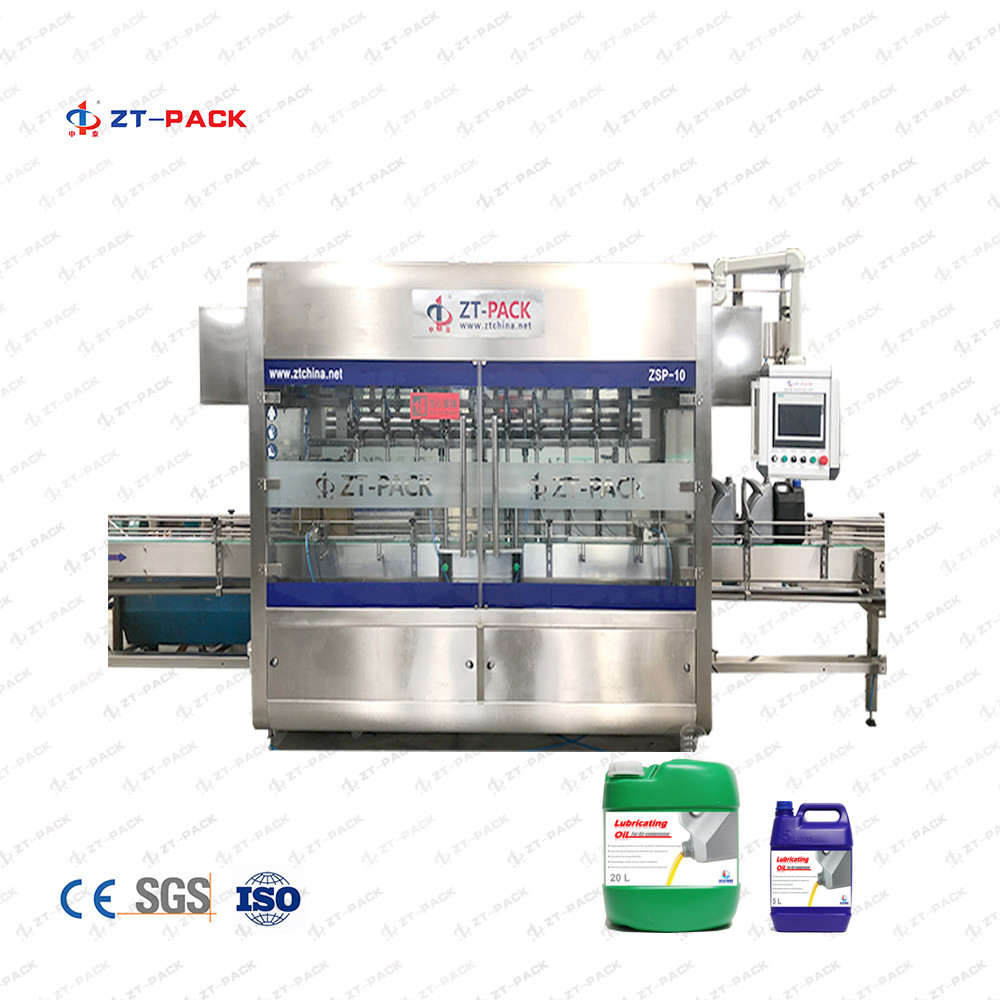

Automatic Oil Filling Machine For Lubricant Viscous Liquids Paste Pack
This series of filling machines use the flow meter / Piston / Net Weight types that can be chosen according to the different capacity speeds required filling principle and a number of patent certifications, which are suitable for lube oil, engine oil, lubricant oil, motor oil, break oil, compressor oil, shock absorber oil, car oil filling. The equipment adopts high-precision rotary encoder measurement to ensure the filling accuracy of 1 ‰. While ensuring the filling accuracy, the filling speed is increased by 20% -35%. The operation is simple, the maintenance is convenient, saves labor costs, and higher production efficiency.
Parameters:
|
Containers and Specifications(100mL-1000mL)
|
|||||
|
Model
|
ZSP-6A
|
ZSP-8A
|
ZSP-10A
|
ZSP-12A
|
ZSP-16A
|
|
Dimension
|
2200mm(L)x1100mm(W)x2200mm(H)
|
2300mm(L)x1100mm(W)x2200mm(H)
|
2400mm(L)x1100mm(W)x2200mm(H)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity(1L)
|
1800B/H
|
2400B/H
|
3000B/H
|
3600B/H
|
4800B/H
|
|
Power
|
2.2KW
|
2.2KW
|
2.2KW
|
3KW
|
3KW
|
|
Suitable bottle
|
Diameter:Φ40mm-Φ100mm Height:80mm-280mm
|
||||
|
Neck diameter
|
Φ18mm
|
||||
|
Filling range
|
50ml--1000ml / 1L-5L (From ZT-PACK)
|
||||
|
Air pressure
|
0.6Mpa--0.8Mpa
|
||||
|
Power supply
|
380V;50HZ/60HZ
|
||||
Filling Nozzles
1: Filling nozzles moving according to bottles moving, the same time do the filling, save the time for bottles in and out time
2: every filling nozzle controlled by one set servo motor and driver system, this is to make sure the filling accuracy and speed faster
3: Each bottle not touch each other, it is for the special bottle shapes, without mold used
4: Easy Operate, easy change bottle sizes for products suitable for many products share
This machine is widely suitable for foodstuff, cosmetic, pharmaceutical, pesticide, and other industries. It is single and double side labeling for flat, square, and round bottles which a volume below 1L. Automatically controlled by a computer (PLC)easy operating.No bottle no labeling. It can change specifications easily. It adopts a servo motor and achieved closed-loop control low malfunction rate. High efficiency. Fast speed.
