Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 100 sets per month |

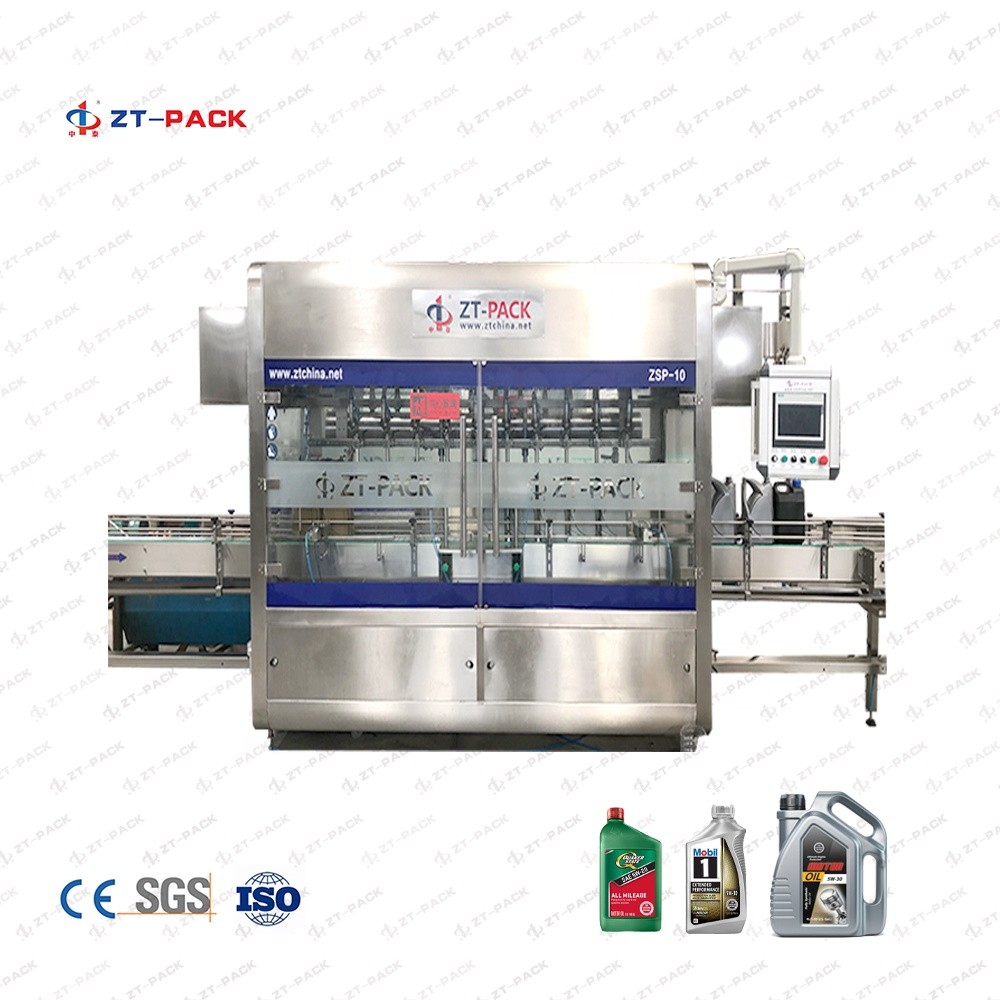

Automatic 6 Heads Auto Lube Lubricant Oil Filling Induction Sealing Capping Machine
This machine adopts PLC microcomputer programmable control, integrating light, machine, electricity, sensing, and pneumatic execution. The filling adopts the submersible defoaming type, with advantages of accurate metering and simple structure, convenient operation, and fast production speed. Applicable water agents such as beverage, wine, vinegar, fine chemicals, pesticides, and daily chemical products, with various types of bottles. This machine adopts PLC touch screen Siemens control, It adopts piston filling form. The machine material adopts USU304 and filling nozzle material tank and touches liquid part material is USU316 Teflon and POM. And it has protection device that machine will stop and alarm when lack of materials. The machine is customized according to customer needs, different material viscosity can be set dive filling, vacuum filling, each filling head is independent and can be controlled by touch screen-filling alone.
Parameters:
|
Containers and Specifications(100mL-1000mL)
|
|||||
|
Model
|
ZSP-6A
|
ZSP-8A
|
ZSP-10A
|
ZSP-12A
|
ZSP-16A
|
|
Dimension
|
2200mm(L)x1100mm(W)x2200mm(H)
|
2300mm(L)x1100mm(W)x2200mm(H)
|
2400mm(L)x1100mm(W)x2200mm(H)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity(1L)
|
1800B/H
|
2400B/H
|
3000B/H
|
3600B/H
|
4800B/H
|
|
Power
|
2.2KW
|
2.2KW
|
2.2KW
|
3KW
|
3KW
|
|
Suitable bottle
|
Diameter:Φ40mm-Φ100mm Height:80mm-280mm
|
||||
|
Neck diameter
|
Φ18mm
|
||||
|
Filling range
|
50ml--1000ml / 1L-5L (From ZT-PACK)
|
||||
|
Air pressure
|
0.6Mpa--0.8Mpa
|
||||
|
Power supply
|
380V;50HZ/60HZ
|
||||
Filling Heads: Every filling head has an anti-drop design. It promise do not waste the material. And the diameter of filling head basis on the diameter of customer’s barrel’s mouth.
Piston Cylinder: The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper.
Servo Motor: Servo motor can control the filling more accurately and also it can realize the filling nozzle diving bottom-up filling. At the same time, the filling volume can be adjusted on the touch screen and has automatic fine turning function for each filling head.
Anti-dripping system This function is to prevent material from dripping on the bottle and conveyor. And there will be a flexible plate coming out and back to take the dripping materials
