Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 100 sets per month |

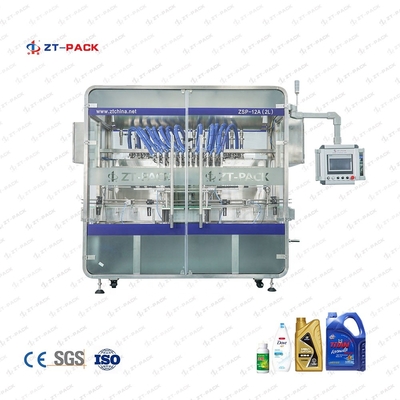

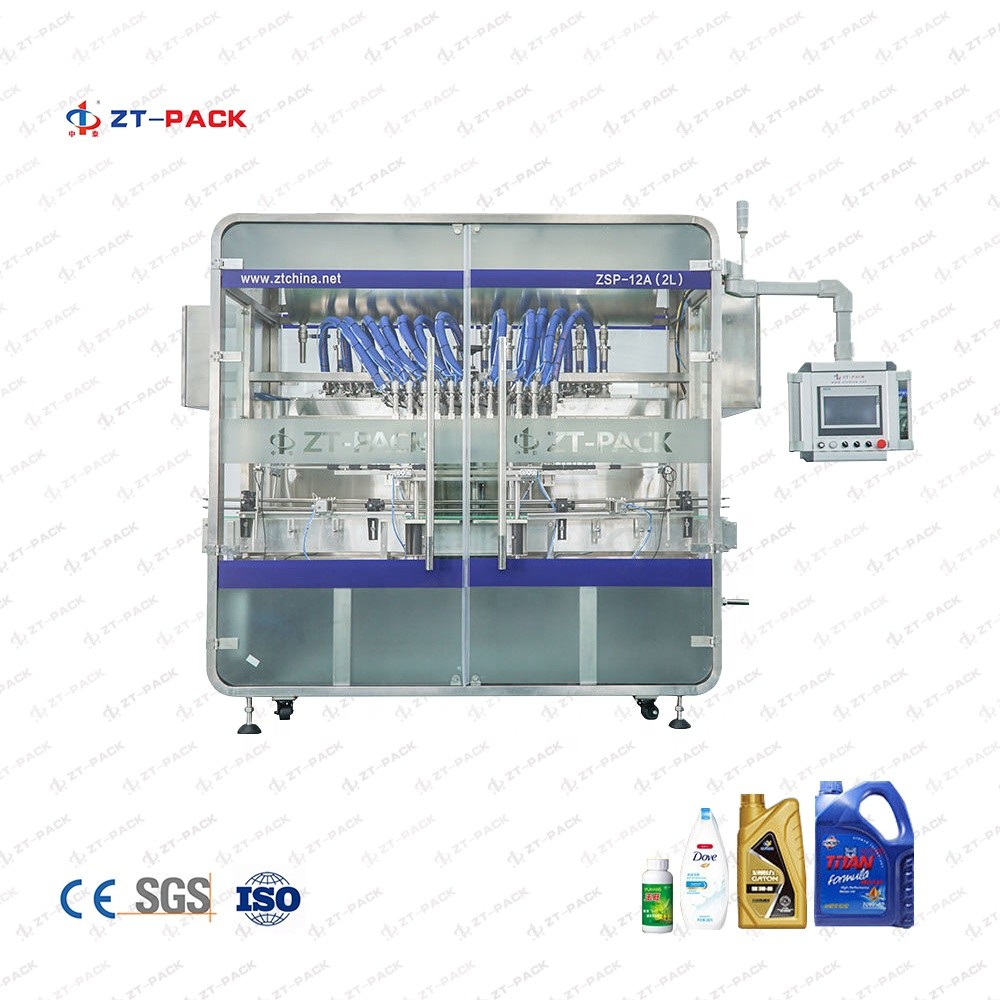

6-12 Nozzles Flow Meter Liquid Filler For Car Oil Lubricant Oil Filling Machines Packing Line
The machine adopts multiple servo motors to control the upper and lower movements of the capping head. During the capping rotation process, the bottle moves continuously, and PLC controls the operation of the whole machine without harming the bottle or the cap.It also increases the speed and stability of production.
1. With a servo drive motor, the cap can be rotated quickly and accurately without damaging the bottle or the cap.
2. Belt-type cap feeding, can be added to the bad and crooked cap elimination device.
3. Servo motor control bottle belt, adjustable speed, no liquid overflow or bottle pour phenomenon.
4. Adjustment mechanism is simple and convenient, and equipped with instruments, can be accurately positioned.
5. Portable capping head design, just changing the capping head, can meet the production of a new bottle.
Parameters:
|
Containers and Specifications(100mL-1000mL)
|
|||||
|
Model
|
ZSP-6A
|
ZSP-8A
|
ZSP-10A
|
ZSP-12A
|
ZSP-16A
|
|
Dimension
|
2200mm(L)x1100mm(W)x2200mm(H)
|
2300mm(L)x1100mm(W)x2200mm(H)
|
2400mm(L)x1100mm(W)x2200mm(H)
|
||
|
Filling head
|
6
|
8
|
10
|
12
|
16
|
|
Capacity(1L)
|
1800B/H
|
2400B/H
|
3000B/H
|
3600B/H
|
4800B/H
|
|
Power
|
2.2KW
|
2.2KW
|
2.2KW
|
3KW
|
3KW
|
|
Suitable bottle
|
Diameter:Φ40mm-Φ100mm Height:80mm-280mm
|
||||
|
Neck diameter
|
Φ18mm
|
||||
|
Filling range
|
50ml--1000ml / 1L-5L (From ZT-PACK)
|
||||
|
Air pressure
|
0.6Mpa--0.8Mpa
|
||||
|
Power supply
|
380V;50HZ/60HZ
|
||||
This machine is widely suitable for foodstuff, cosmetic, pharmaceutical, pesticide, and other industries. It is single and double side labeling for flat, square, and round bottles which a volume below 1L. Automatically controlled by a computer (PLC)easy operating.No bottle no labeling. It can change specifications easily. It adopts a servo motor and achieved closed-loop control low malfunction rate. High efficiency. Fast speed.
Details:
