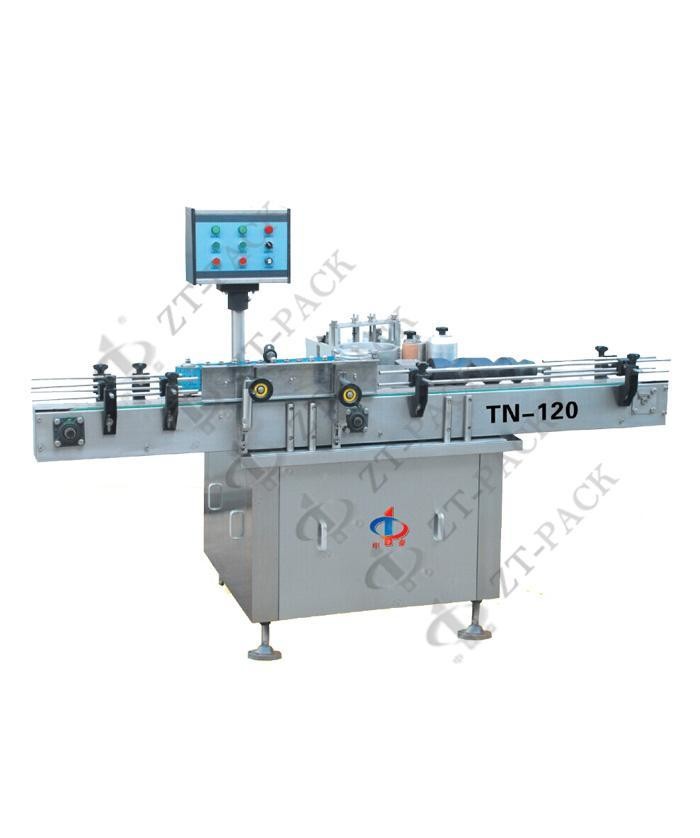

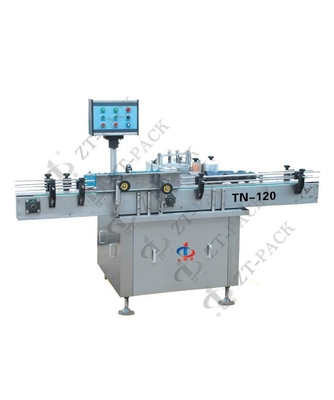

TN-120 Full-Automatic Glue Labeling Machine
Product description:
TN - 120 type automatic labeling machine using fan switch lever, the rubber wheels absorb a little glue to the transmission to take place sticky labels to the vacuum suction roller position, the claws off label switching off the mark to the conveyor belt mouth, use the label attached to the vacuum suction of the paper transfer belt into the labeling, the label attached to the bottle on the conveyor belt, to effect labeling. The labeling machine is easy to operate, saving glue, accurate labeling, flat, suitable for food, pharmaceutical, cosmetic, pesticide, chemical products cylindrical container glue labeling.
| 1. Capacity | ≤4500(b/h) |
| 2. applicable label height | 40-150mm |
| 3. applicable label height | 50-180mm |
| 4. labeling precision | ±1mm |
| 5. voltage | AC220V,50/60Hz |
| 6. total power | 1.2Kw |
| 7. net weight | 500kg |
| 8. dimension | 2000(L)×900(W)×1300(H)mm |
1. SUS304 stainless steel is used on whole machine body. Oxidation-treated aluminium alloy is adoptted to the inside structare,which will make the machine stainless and longevous
2. Unique cutter design , makes label cutting more smoothly.It is conenient to change the blade.
3. when meeting diffenent types of bottles,it can be fast to change mould.It will be more conuenient and stable toload and unload labels.
4. Frequency -controlled grouping bottle equipment makes botttle inlet more stable
5. Uninterrupted label-brushing system makes the precision more accurate .
6. combined the electric eye amplifier with enpennage,it ensures the least reeor of cutting labels.
7. Stand alone mateerial poriding system can adjnst the location of labels
8. Errors occlcrred durning working can be displayed on the touch screen .once solued,production will be factly recouered.
9. Suitable bottle shapes: round bottle, square bottle, elliptic bottle, top of bottle and body of bottle.
10. Applied to different kinds of plastic bottles, glass bottles, PVC, PET, PS, steel tins, etc for food, beverage, cleaning, medicine and liquor.

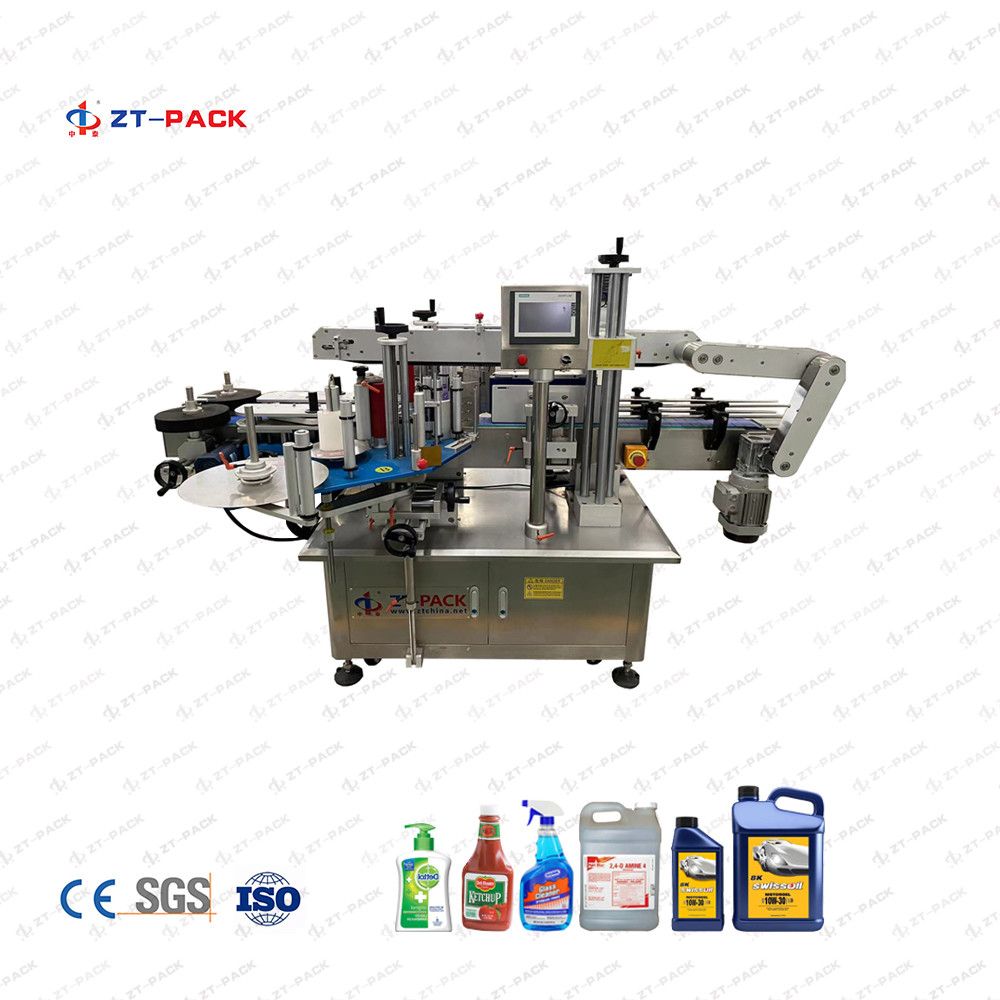

Suitable for :
It is suitable for double-ided or single-sided self-adhesive labels for square bottles, round bottles, and irregular bottles. It is usually widely used in daily chemicals, edible oils, lubricants, pesticides, and personal care.
