Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC, Western Union |
| Supply Ability: | 100 sets per month |

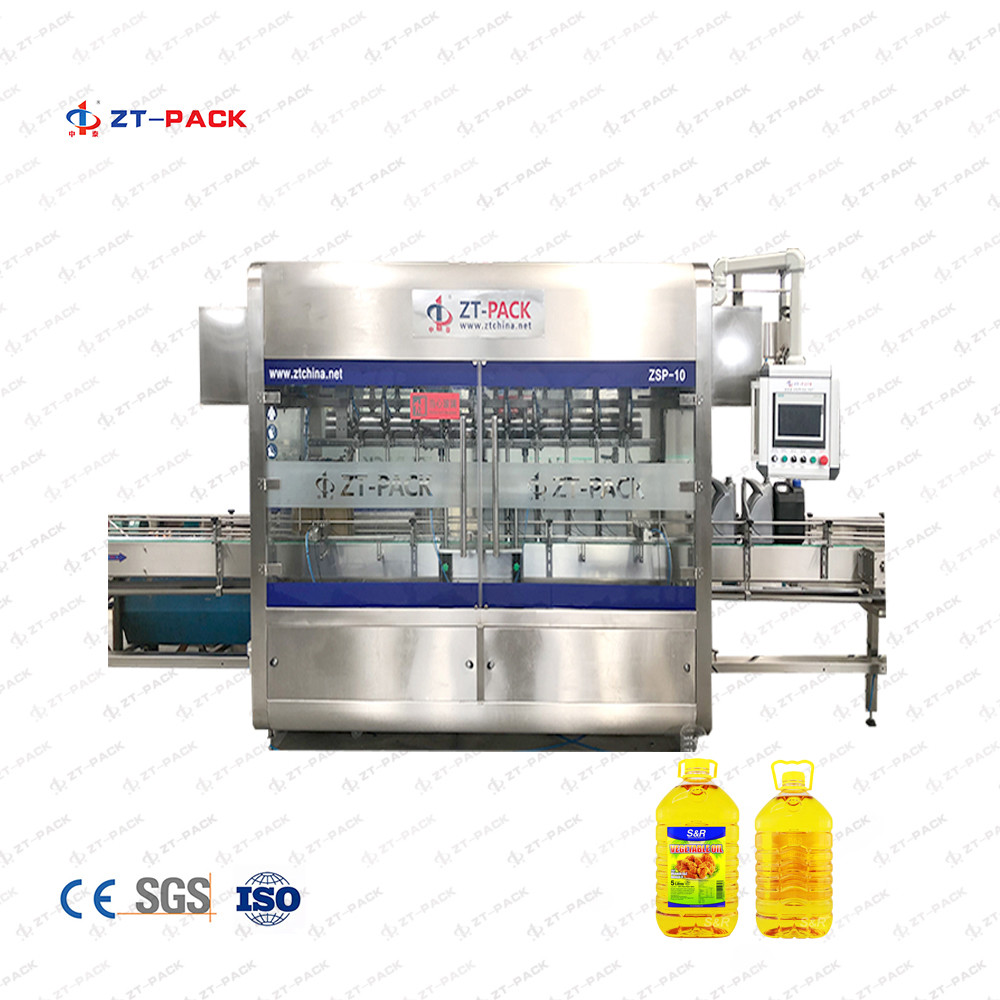

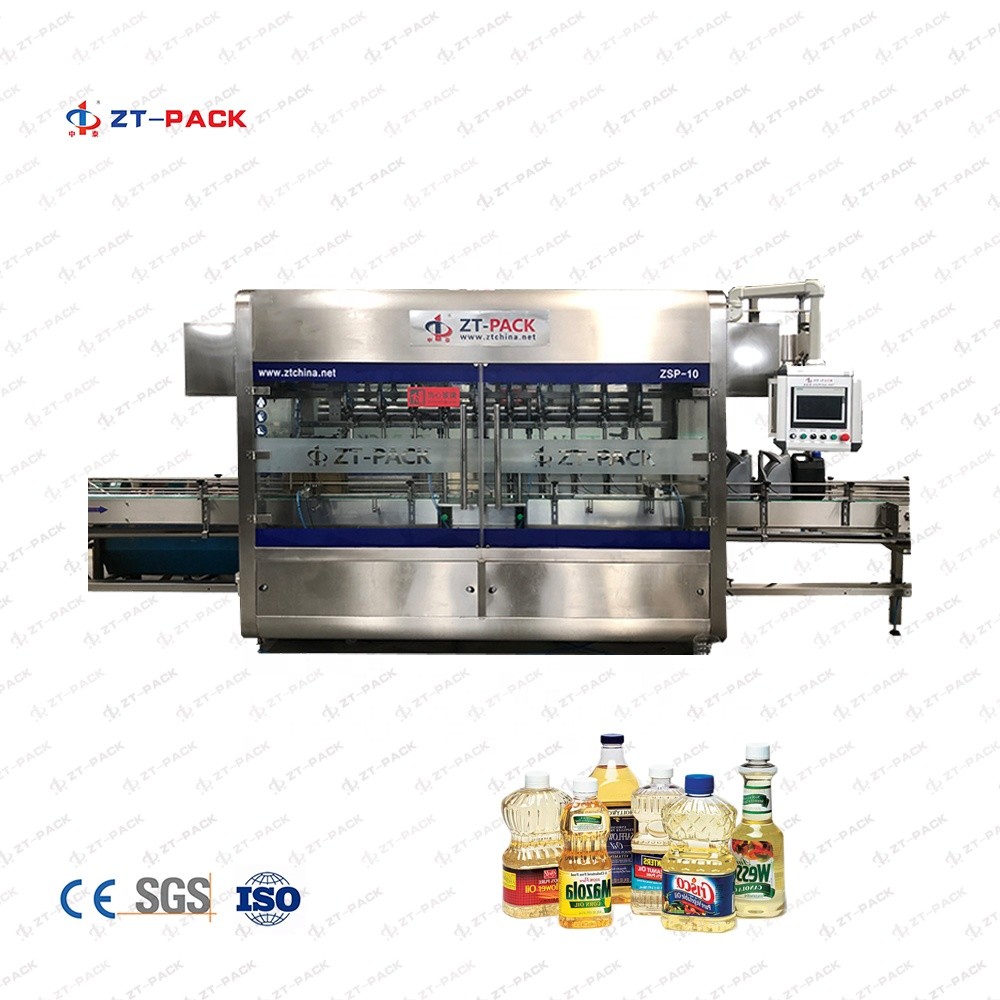

8Head Flow Meter 2L 3L Fully Automatic Sunflower Oil Edible Oil Filling Machine
Description
8Head Flow Meter 2L 3L Fully Automatic Sunflower Oil Edible Oil Filling Machine is a Flow Meter Type filling machine with high filling accuracy.
It applies to 0.5-5L liquid for filling.
Filling system can be choose: Flow meter /piston
Widely use for edible oil packing industries
The machine is made by in-line structure , filling head quantity can be custom-made according to different production capacity such as 4/ 6/ 8 /12 nozzles.
This filling machine adopts PLC and touch screen automatic control. It has the advantages of accurate measurement, advanced structure, stable operation, low noise, large adjustment range and fast filling speed.
For peanut oil, walnut oil and other oils canned equipment preferred.
The measurement can be adjusted digitally on the human-machine interface, and the required measurement can be set to 1L-5L, which can be reached at the touch of the touch screen, and the measurement can be fine-tuned on a single head. The equipment is controlled by the patent system of single head single pump single frequency converter, which ensures the filling accuracy of 1‰. While ensuring the filling accuracy, the filling speed is increased by 20%-35%. The operation is simple, the maintenance is convenient, the labor cost is saved, and the production efficiency is higher.
Parameters:
| Model | ZT-FM | |||
| Nozzle Number | 6 | 8 | 10 | 12 |
| Filling volume | 500ml-5L(From ZT-PACK) | |||
| Production capacity | 300-4000pcs/Hour (Depend on filling volume and filling head) | |||
| Quantitative error | ≤±0.5% | |||
| Voltage | AC200V / 380±10% ; 50HZ/60HZ | |||

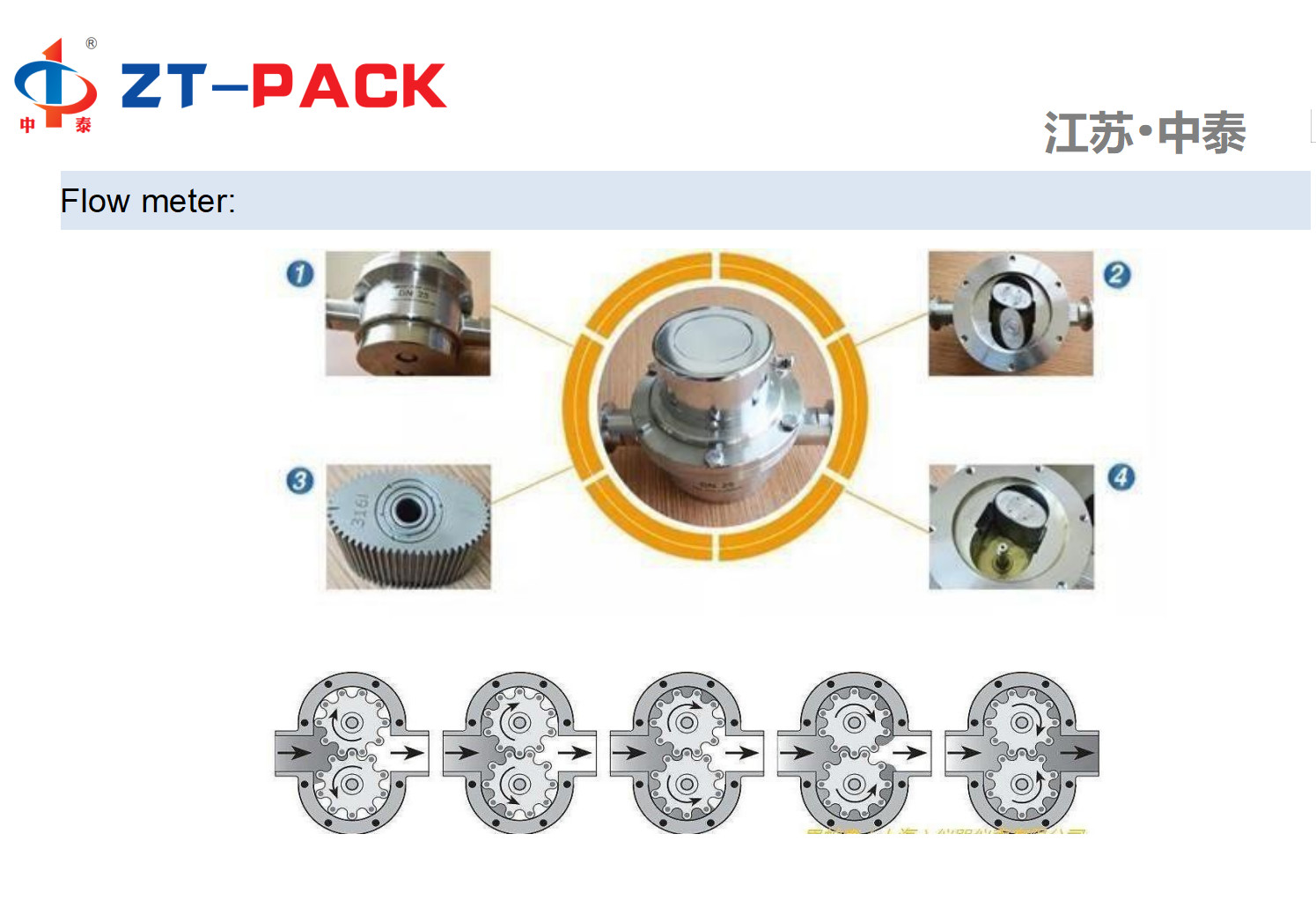

| Filling method | By Flow meter system | |||
| Consumed power | 3 | 6 | 9 | 12 |
| Air pressure | 0.6Mpa--0.8Mpa | |||
| Power supply | 1.5kw | 2.2kw | 3kw | 4kw |
Equipment configuration
| NO | ITEM | BRAND |
| 1 |
PLC |
SIEMENS |
| 2 |
Touch screen |
SIEMENS |
| 3 |
Frequency |
Schneider |
| 4 |
Sensor |
Sick |
| 5 |
Power |
Schneider |
| 6 |
Pressure switch |
Airtac |
| 7 |
Pneumatic Components |
Airtac |
| 8 |
Button |
Schneider |
| 9 |
Alarm light |
Schneider |
| 10 |
Proximity switch |
Sick |

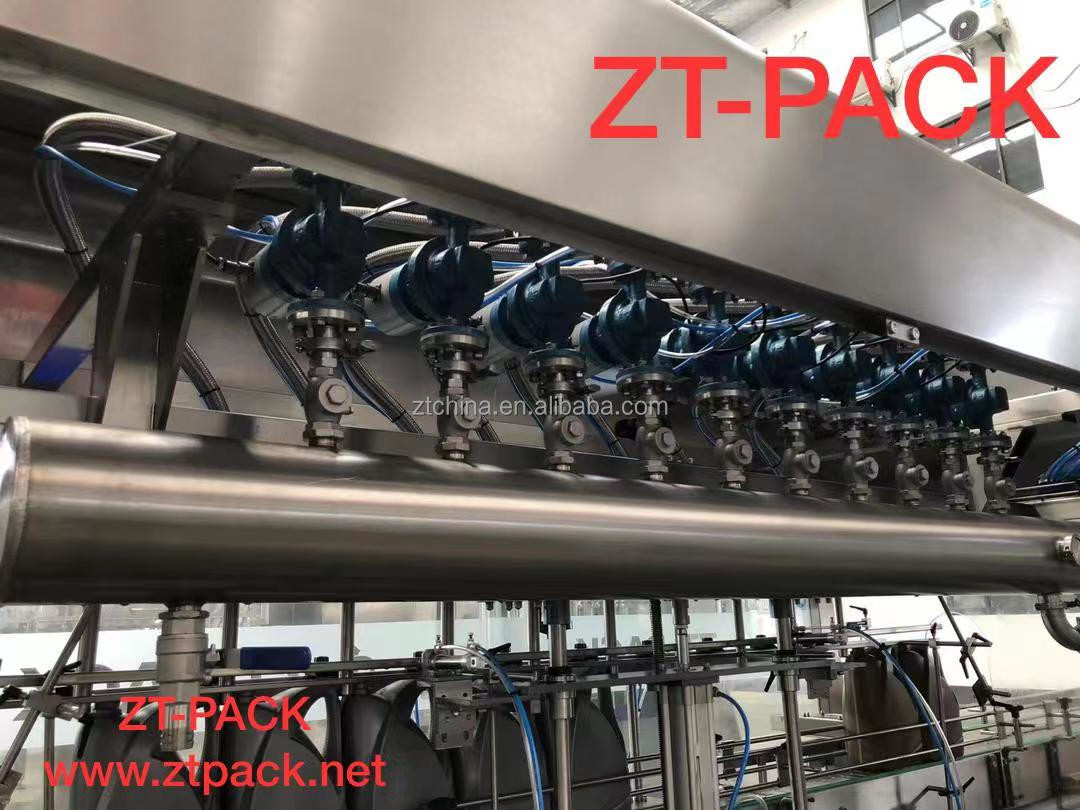

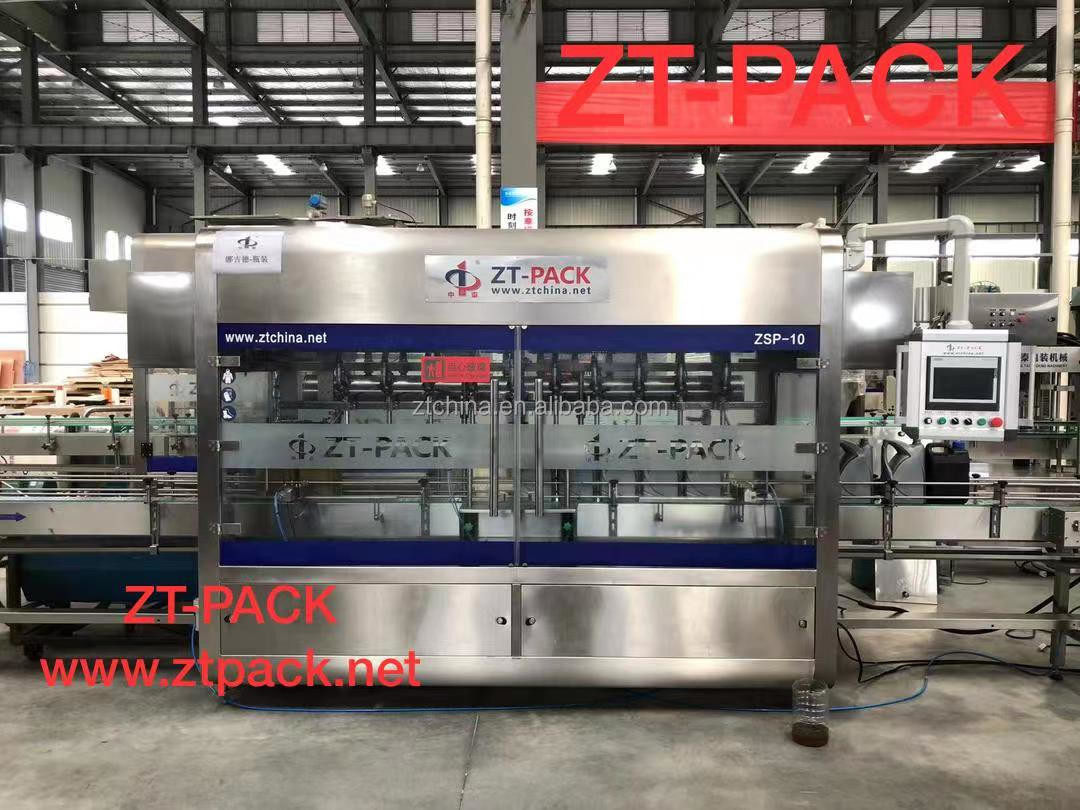

Details:
