Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 100 sets per month |
Cheap Price Cookie Oil Filler Paste Liquid Food Oil And Edible Oil Filling Machine
Description

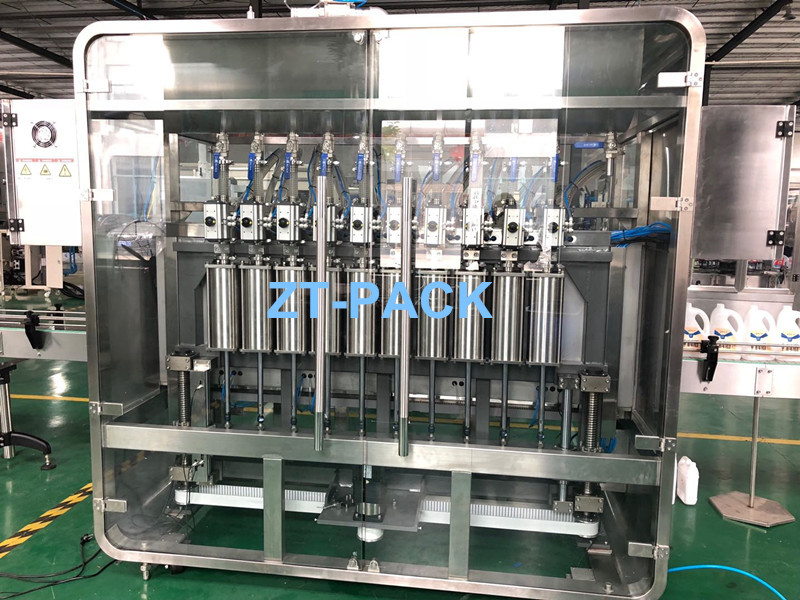

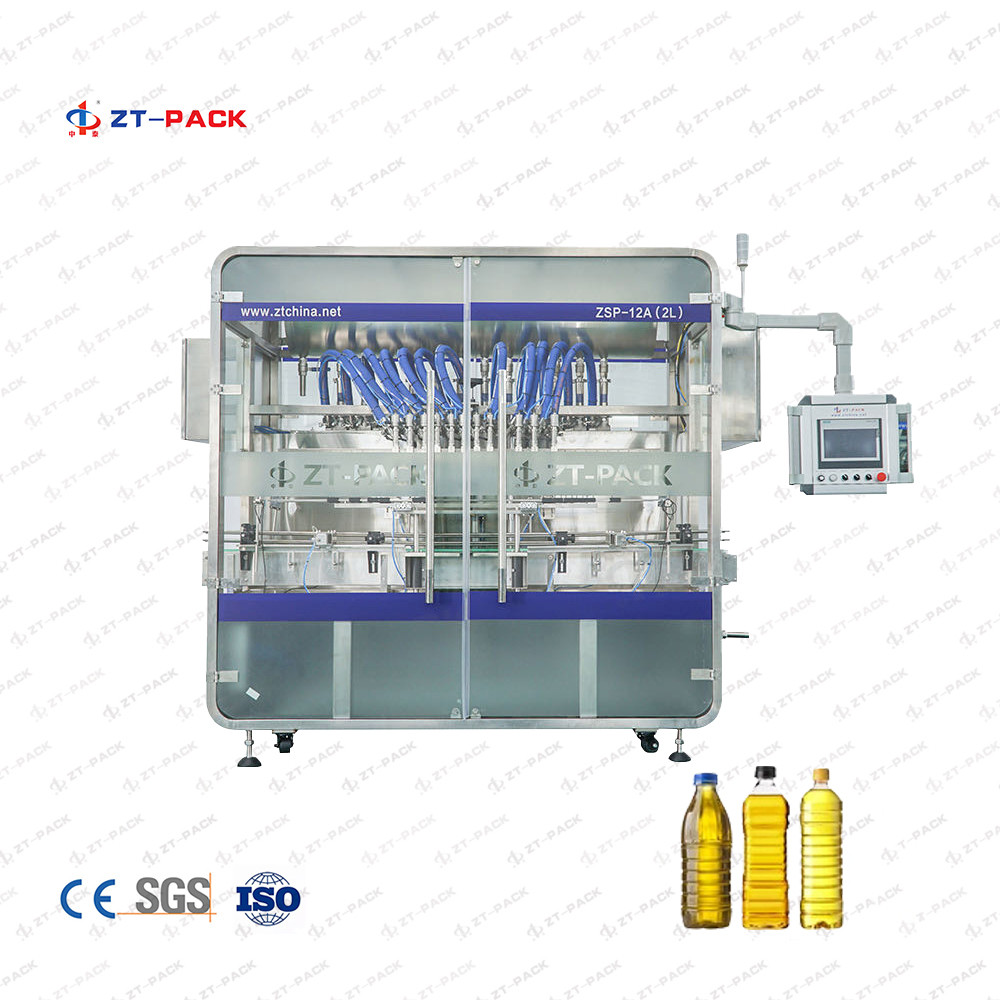

Cheap Price Cookie Oil Filler Paste Liquid Food Oil And Edible Oil Filling Machine is the new-generation improved volumetric filling machine which is Suitable for material: agrochemical SC,pesticide ,dishwasher ,the oil kind ,softener ,detergent cream class contour viscosity materials. . The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
This series of model suitable for liquid and semi-automatic liquid without gas. Automatic counting is completed into the bottle, quantitative filling, and bottle conveying a series of operations.
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds Products
Main Performance:
1. Capacity:≤2000 bottles/hour
2. Applicable Bottle Type:1L Height 190-200mm,width 135-145mm,thickness 55mm.
3. Bottle’s mouth diameter:1L diameter 35-45mm,machine design according to customer bottle
4. filling range:100ml-1000ML
5. Precision: (100ml-1000ml)±0.5%
6. Air pressure : 0.6～0.8 MPA
7.Air consumption:120L/minute
8. Power Source:～380V,50HZ
9. Power:2.5KW
10. External Dimension:2440×1150×2300mm(L×W×H)
11. Weight:About 1850Kg
12.Production line height:850mm±50mm
13.Filling materials:Viscosity liquid
14.Bottle feed direction:From left to right
Parameters:
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension |
2200mm(L)x1100mm(W) x2200mm(H) |
2300mm(L)x1100mm(W) x2200mm(H) |
2400mm(L)x1100mm(W) x2200mm(H) |
||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm | ||||
| Neck diameter | Φ18mm | ||||
| Filling range | 50ml--1000ml (From ZT-PACK) | ||||

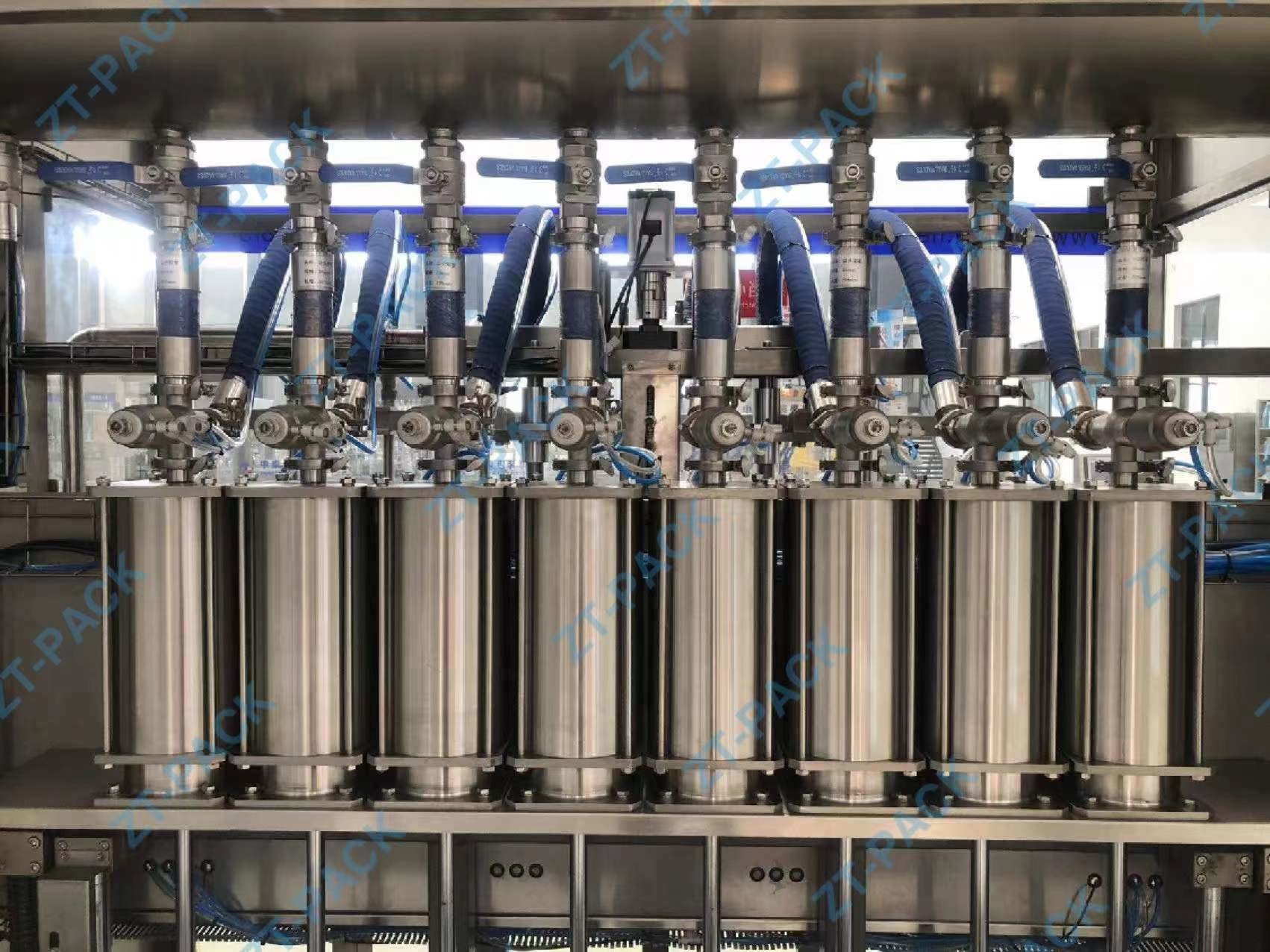

| Filling System | Piston Type | ||||
| Air pressure | 0.6Mpa--0.8Mpa | ||||
| Power supply | 380V ;50HZ / 60HZ | ||||
