Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | ZT-PACK |
| Certification: | CE,ISO,SGS,SABER |
| Model Number: | ZSP-A |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | TT/LC |
| Supply Ability: | 100 sets per month |

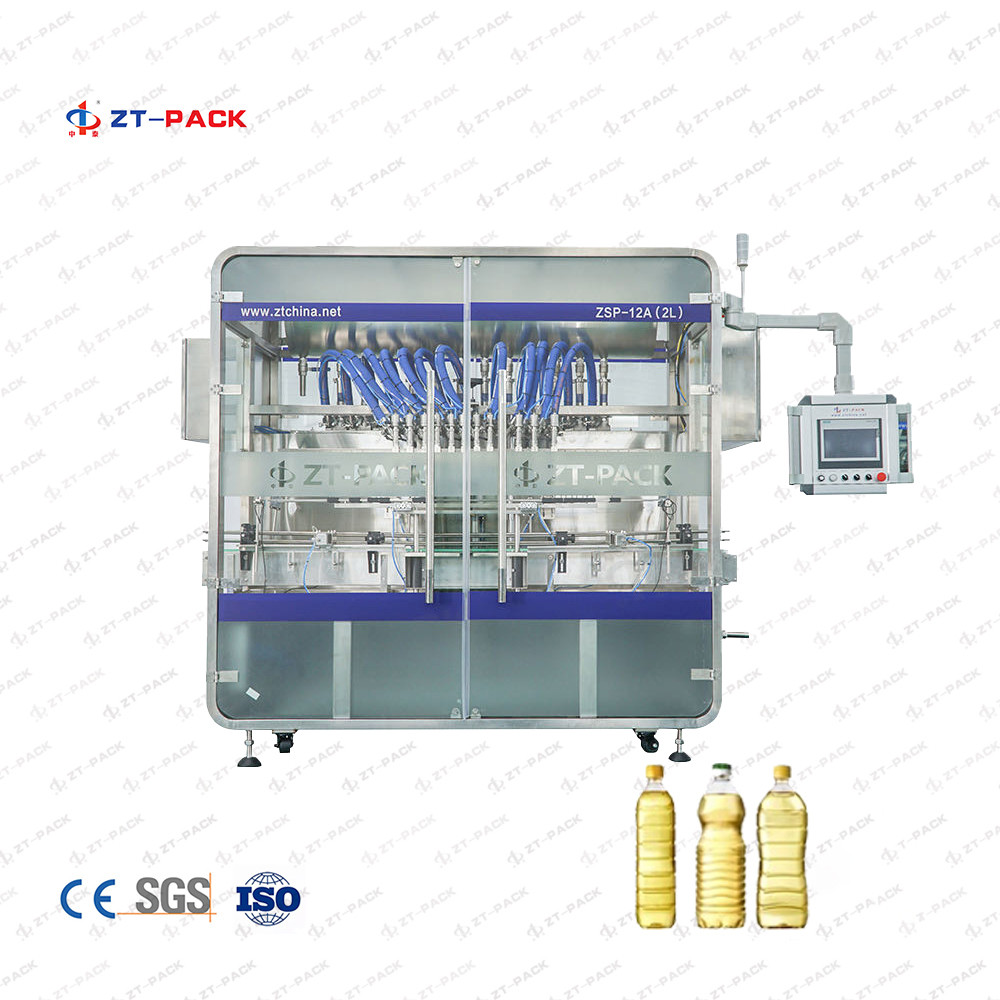

Fully Automatic Viscous Liquid Filler 250ML Edible Oil Bottle Filling Machine
Description
Fully Automatic Viscous Liquid Filler 250ML Edible Oil Bottle Filling Machine is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates.
Automatic linear piston filler is designed for completely automatic, multiple position, inline dispensing of liquids and pastes in volume ranging from 50ml to 1000m per cycle. Available in 6, 8, 10 ,12 and 16 nozzle configurations to match specific production requirements, Dual lane option is available to increase production by 100% while preserving valuable line space.
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds Products
Equipment Features:
1.Stainless steel and sanitary pipes are used, and the connection parts are all fast-connected.
2.The servo motor control belt drives the submerged filling mode of the filling head operation. With the set variable speed filling function, the filling head rises with the liquid level, and the liquid level is synchronized, which can reduce the easy foaming. The production of foam during filling, preventing bottle mouth pollution caused by material spillage, effectively increasing production capacity
3 It can also adopt the de-cylinder structure, which can completely empty the material in the material tank, effectively avoiding cross-contamination of materials, and replacing the sealing ring is more convenient and quick.
4 Mostly components use from Schneider , SICK
5 The latest PTFE technology piston seals improve wear resistance, longer service life and lower maintenance costs.
6 The whole machine adopts high quality SUS304 Taigang stainless steel frame, which has good anti-corrosion effect. The outer stainless steel and tempered glass door cover seals the body, and the air outlet is reserved above the filling head (the diameter of the connecting pipe is Φ120), which can be connected with the air intake system of the factory to discharge the exhaust gas generated during the filling process to ensure the production workshop site. ,odorless.
Parameters:
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |
| Model | ZSP-6A | ZSP-8A | ZSP-10A | ZSP-12A | ZSP-16A |
| Dimension |
2200mm(L)x1100mm(W) x2200mm(H) |
2300mm(L)x1100mm(W) x2200mm(H) |
2400mm(L)x1100mm(W) x2200mm(H) |
||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1500B/H | 2300 B/H | 2800 B/H | 3200 B/H | 4500 B/H |
| Power | 2.2KW | 2.2KW | 2.2 KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm--Φ100mm Height:80mm--280mm | ||||
| Neck diameter | Φ18mm | ||||
| Filling range | 50ml--1000ml (From ZT-PACK) | ||||
| Filling System | Piston Type | ||||
| Air pressure | 0.6Mpa--0.8Mpa | ||||
| Power supply | 380V ;50HZ / 60HZ | ||||

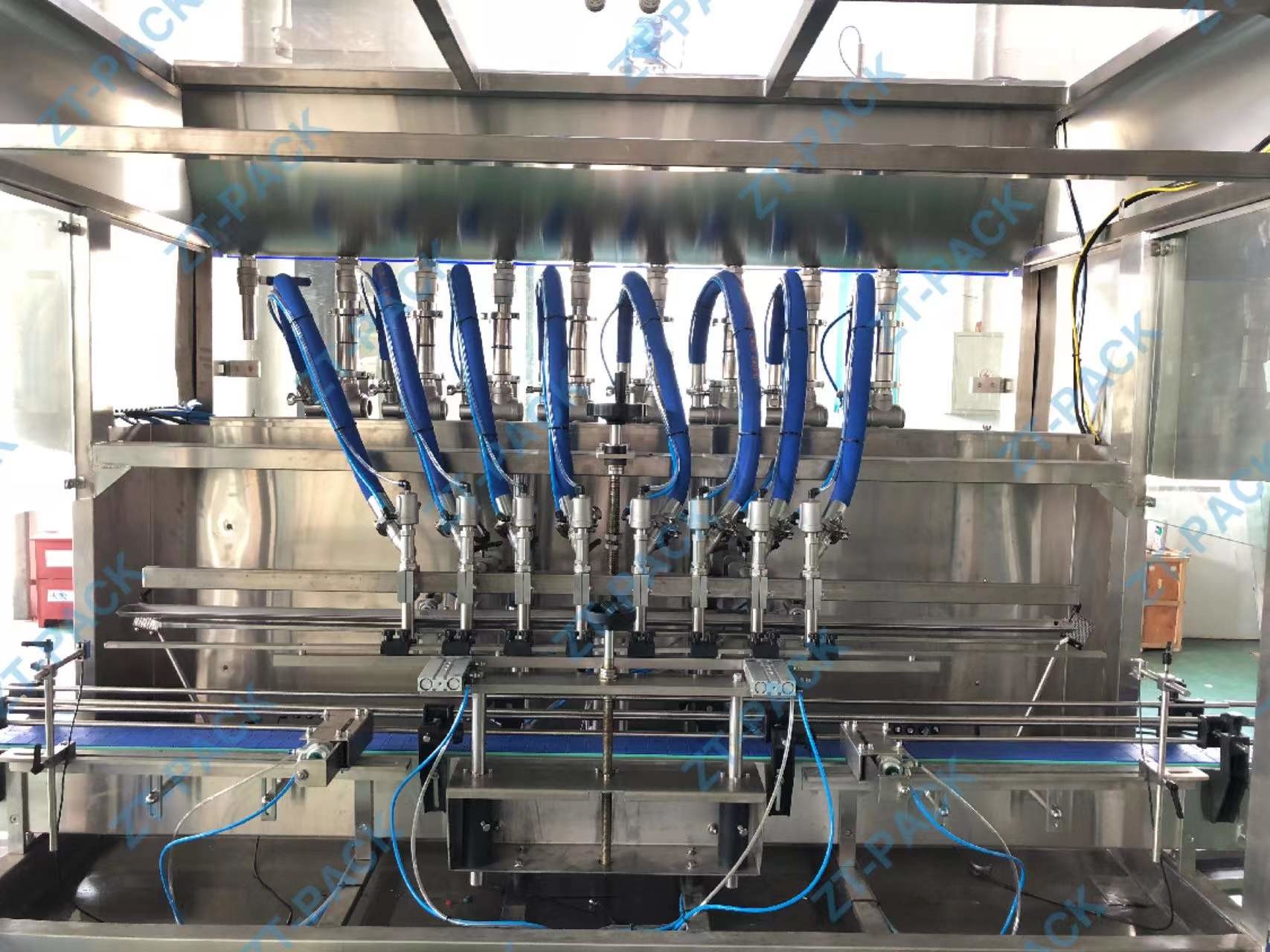

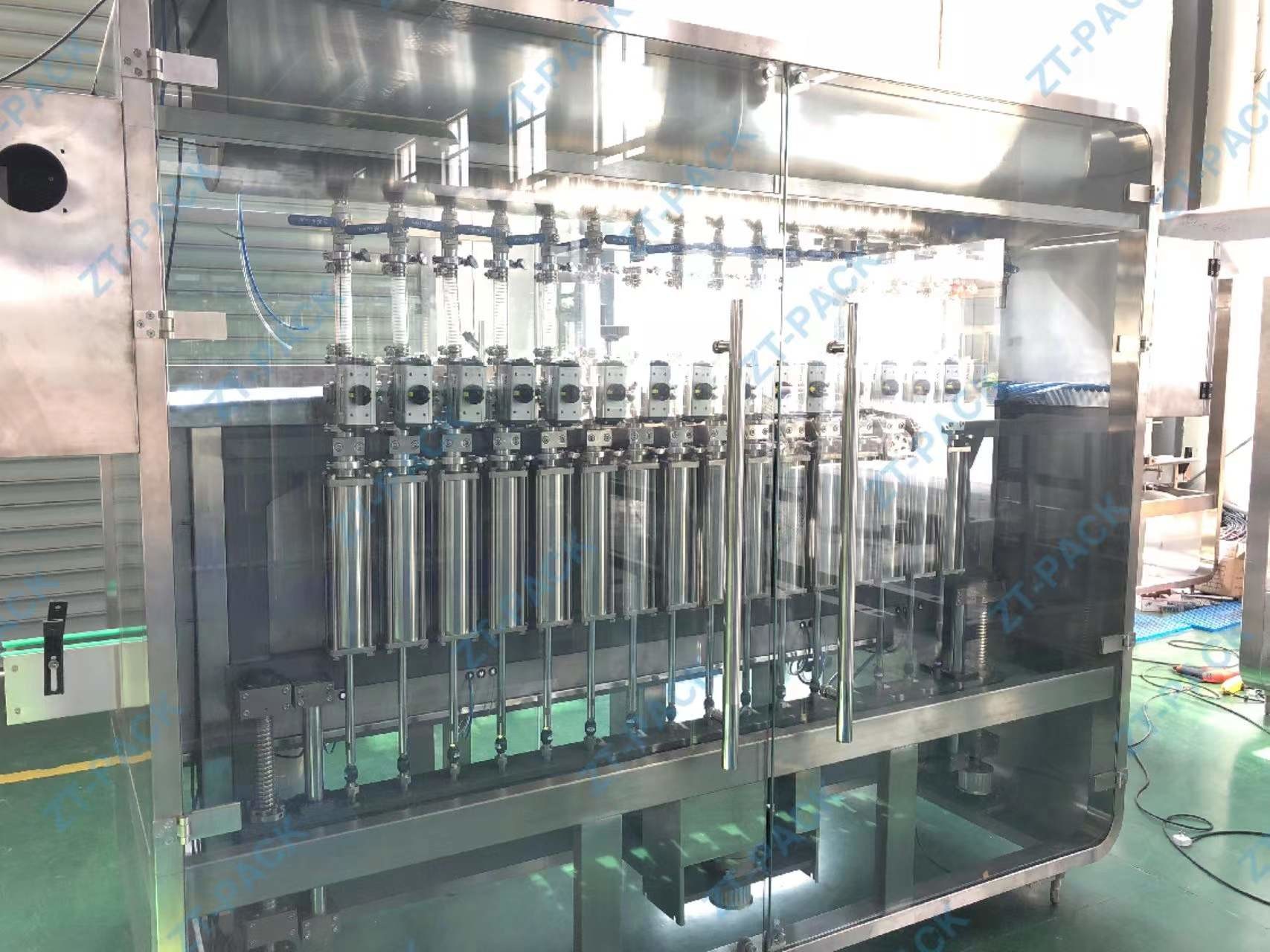

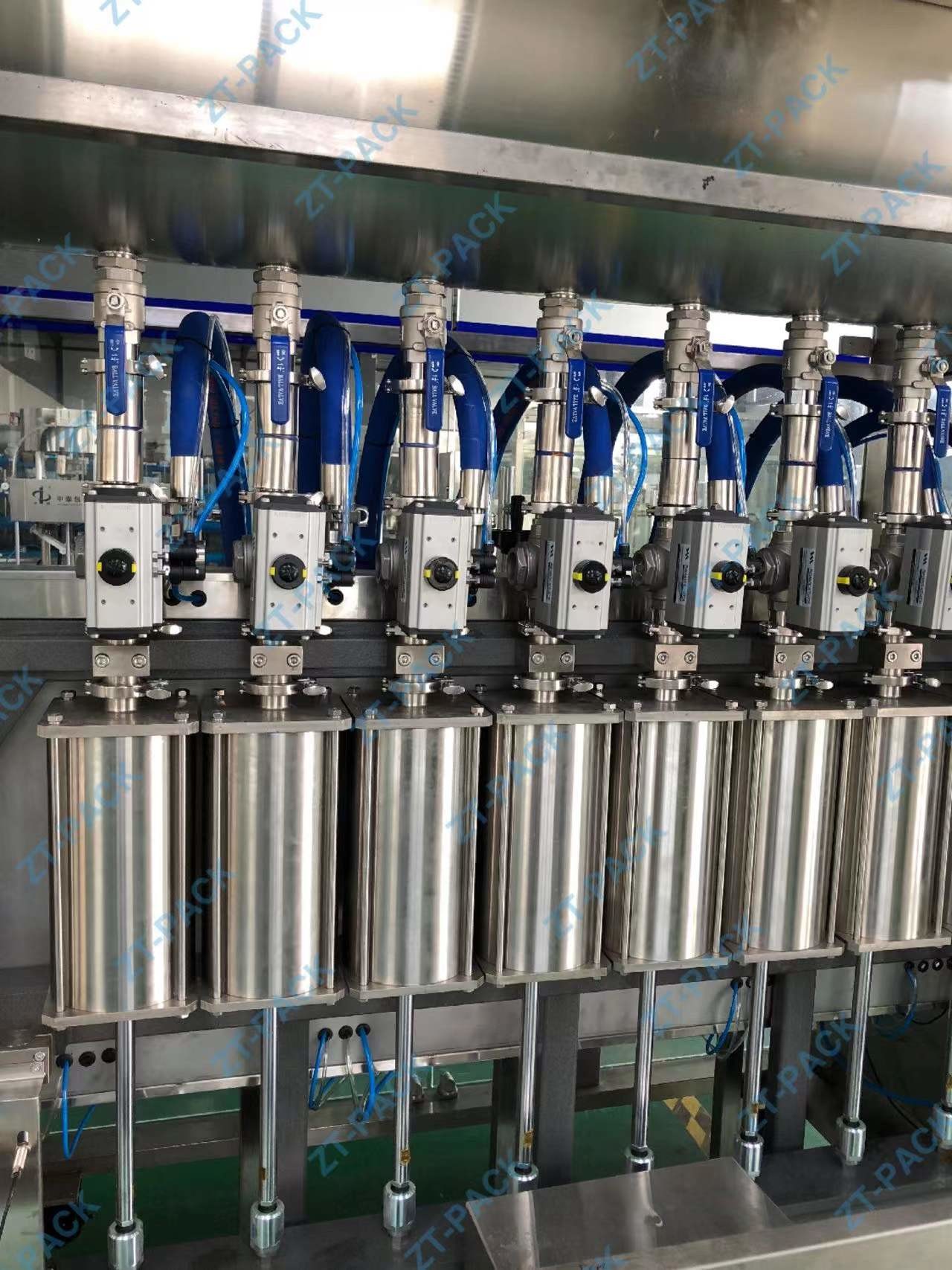

Details:
