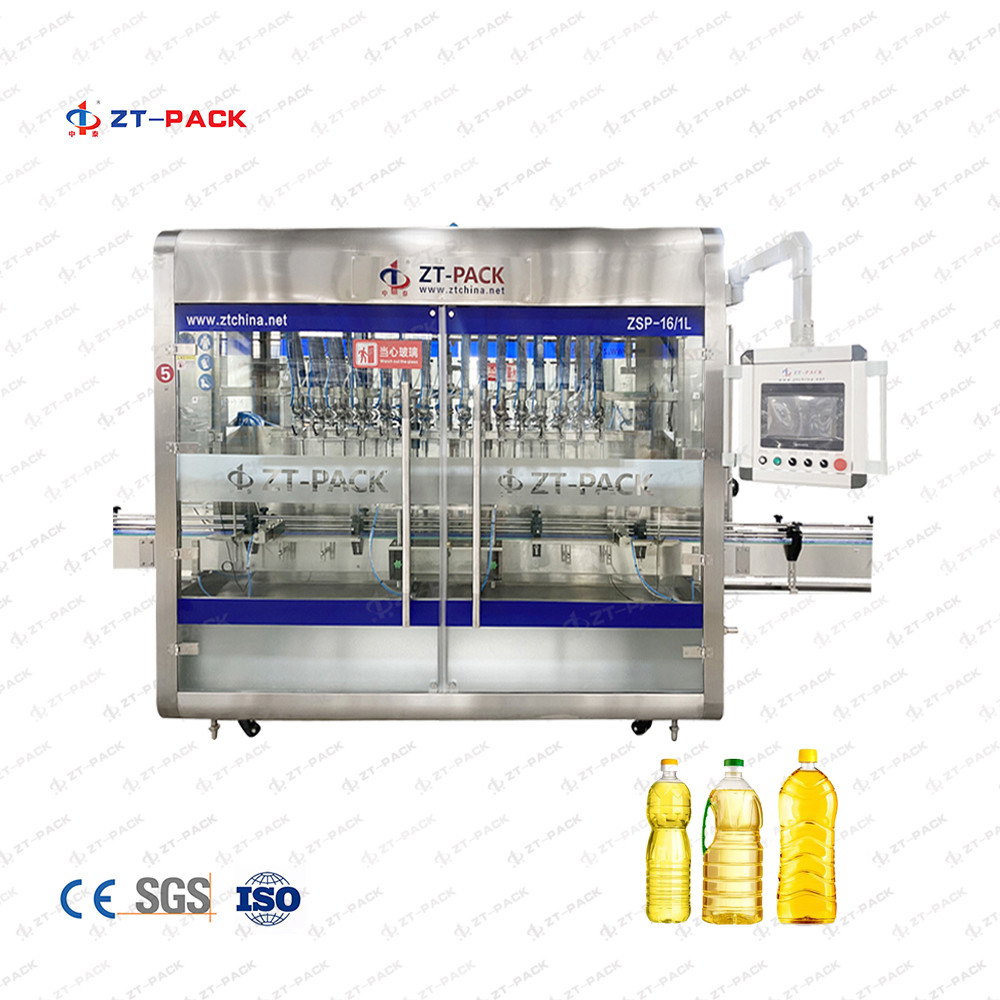

High Accuracy 500ML Fully Automatic Servo Piston Edible Oil Filling Machine
Description
High Accuracy 500ML Fully Automatic Servo Piston Edible Oil Filling Machine is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates.
Linear piston liquid filling machinery is manufactured with a 304 stainless steel frame, It comes standard with PLC control and touch screen HMI ensuring reliable, repeatable control with minimal operator intervention, Precision bored, heavy- walled metering cylinders dispense product at accuracy up to +/- 0.2%, High-precision, servo motor driven screw movement faster and more precise than pneumatic system, food grade stainless steel and plastics for sanitary operations or use,anodized aluminum components, plus many more features available with motorized conveyor and indexing package for integrated container handling and positioning, No container/No fill feature detects missing or mispositioned containers to prevent waste and product spillage. Unique variable, separate speed control and actuator of a dual-stage fill provides precise “no spill” control for top-off applications or filling difficult products.
Suitable for fill : Edible Oil /Cooking Oil / sunflower oil / Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil /
Lubricanting Oil kinds Products
Filling Range : 50ml -1000ml
1L -5L
4L -20L
208L / 220L
Speed can be choosen : from 1000BPH-6000BPH (basic on 1L ) contact us for more details
Feature:
This non-metal filling machine specially designed for strong acid and alkali product, such as: hydrochloric acid products bleach.
1. PLC controlled, friendly touch screen control.
2. Famous brand electrical and pneumatic components used to guarantee machines quality and long life service time.
3. Vacuum suck back for dripping can be special designed for foamy product.
4. All wetted parts are made of non-metal materials, anti-corrosion.
5. Not only whole filling heads can be adjusted, but each filling head can be fine-adjusted respectively.
Parameters:
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm, Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
|
| Filling range | 1L-5L (From ZT-PACK) | |
| Filling Type | Piston system | |
| Piston Size | 5L | |
| Air pressure | 0.6Mpa--0.8Mpa | |
| Power supply | 380V ;50HZ / 60HZ | |

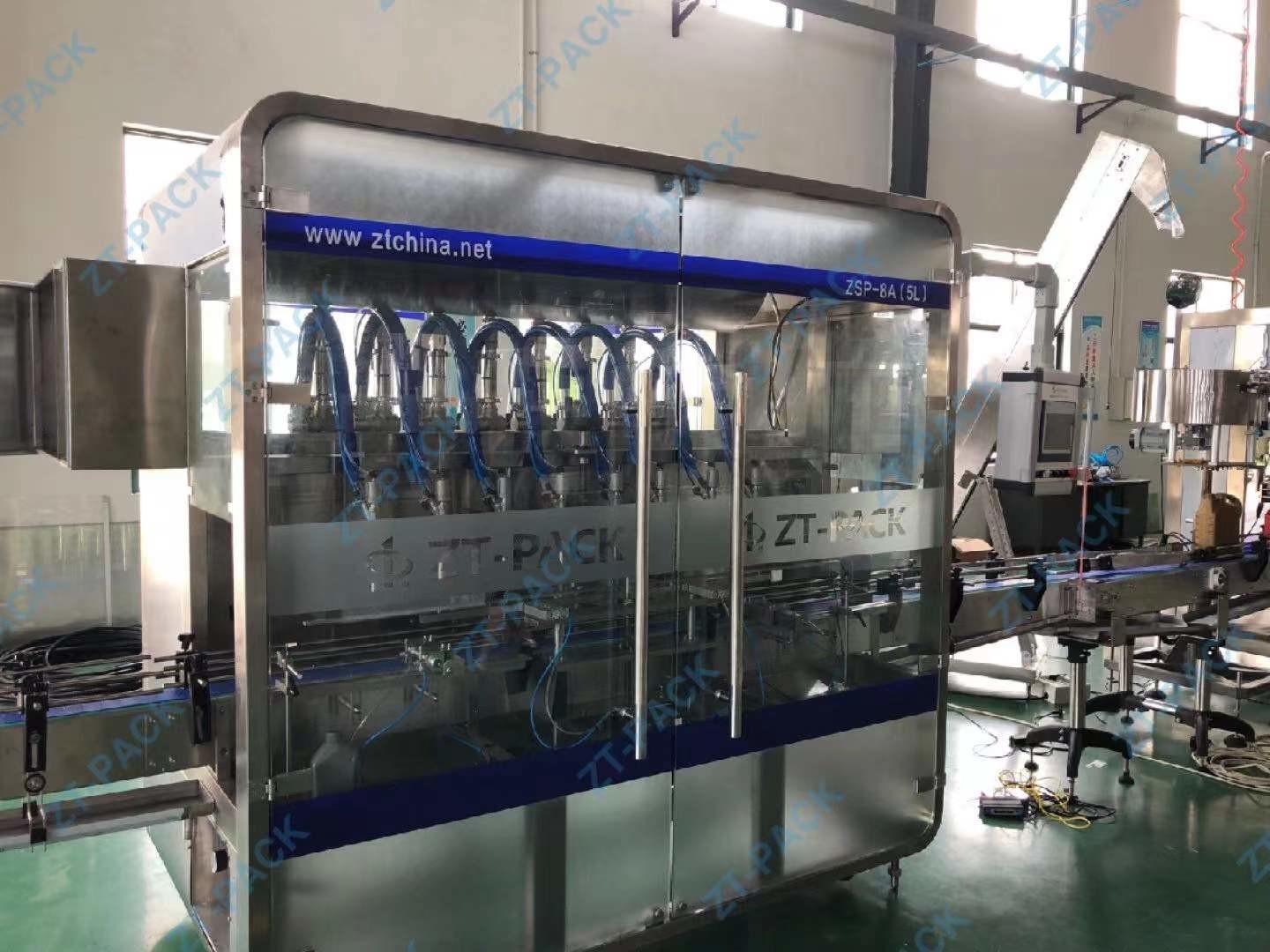

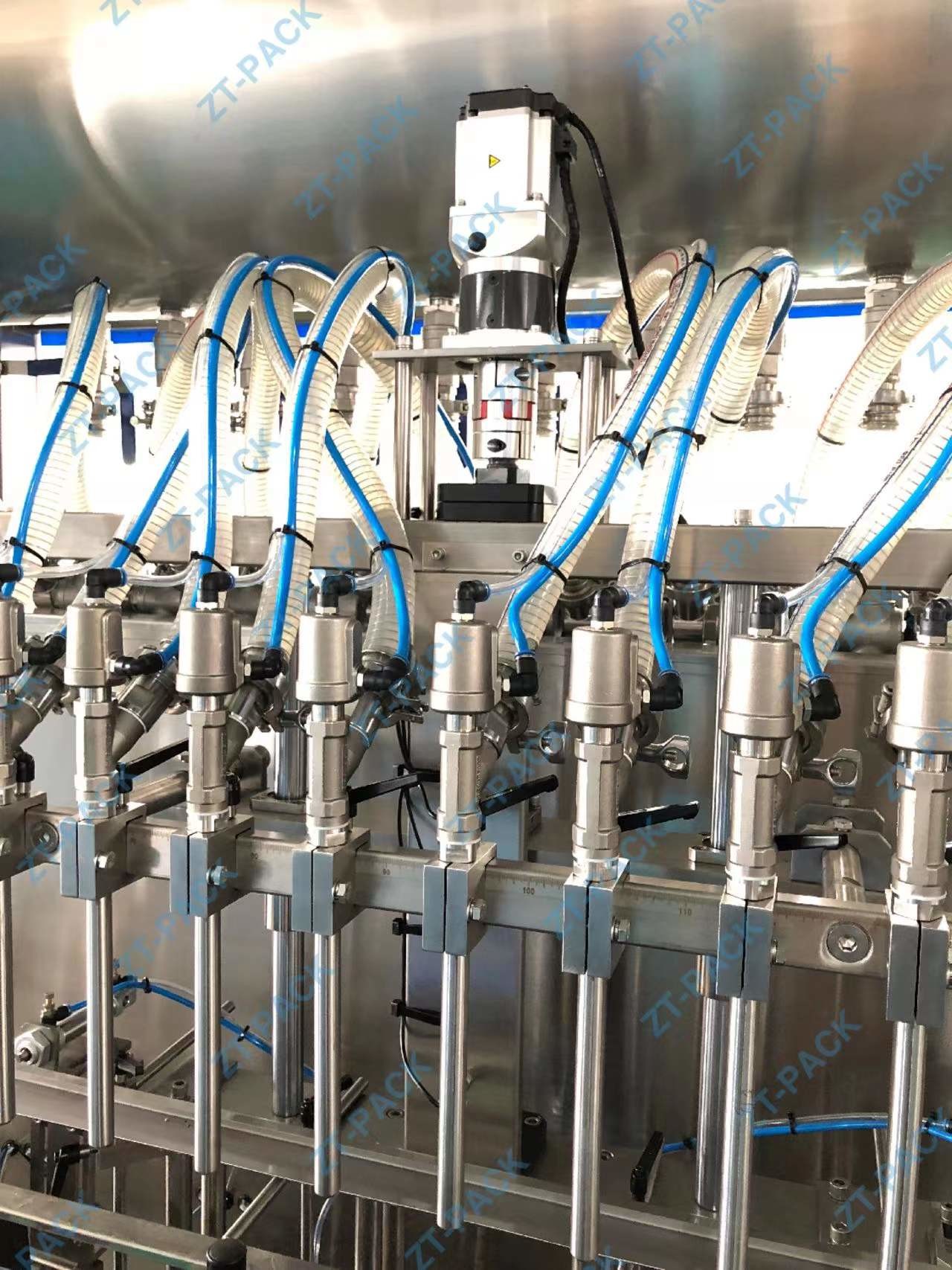

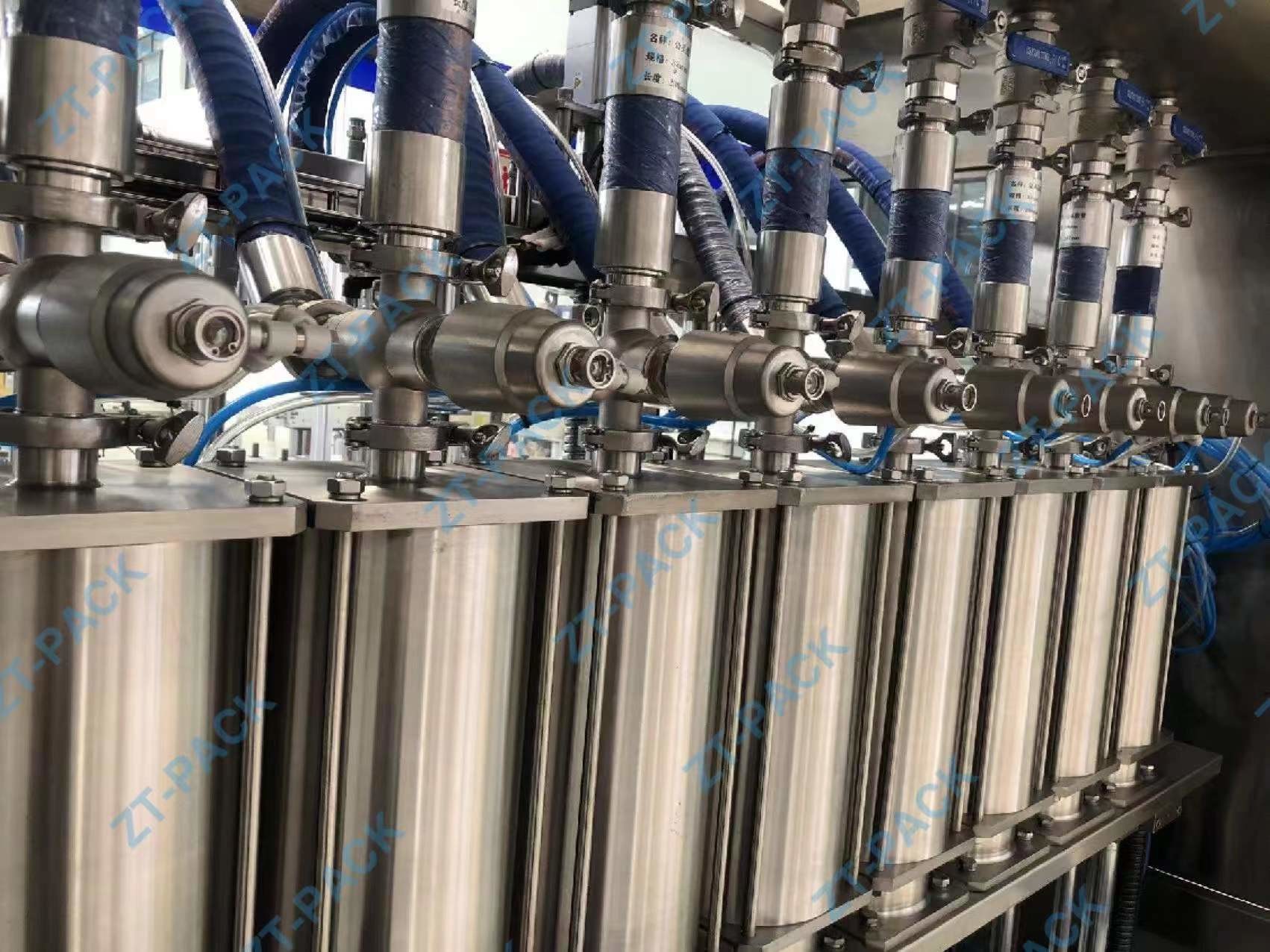

Details:
